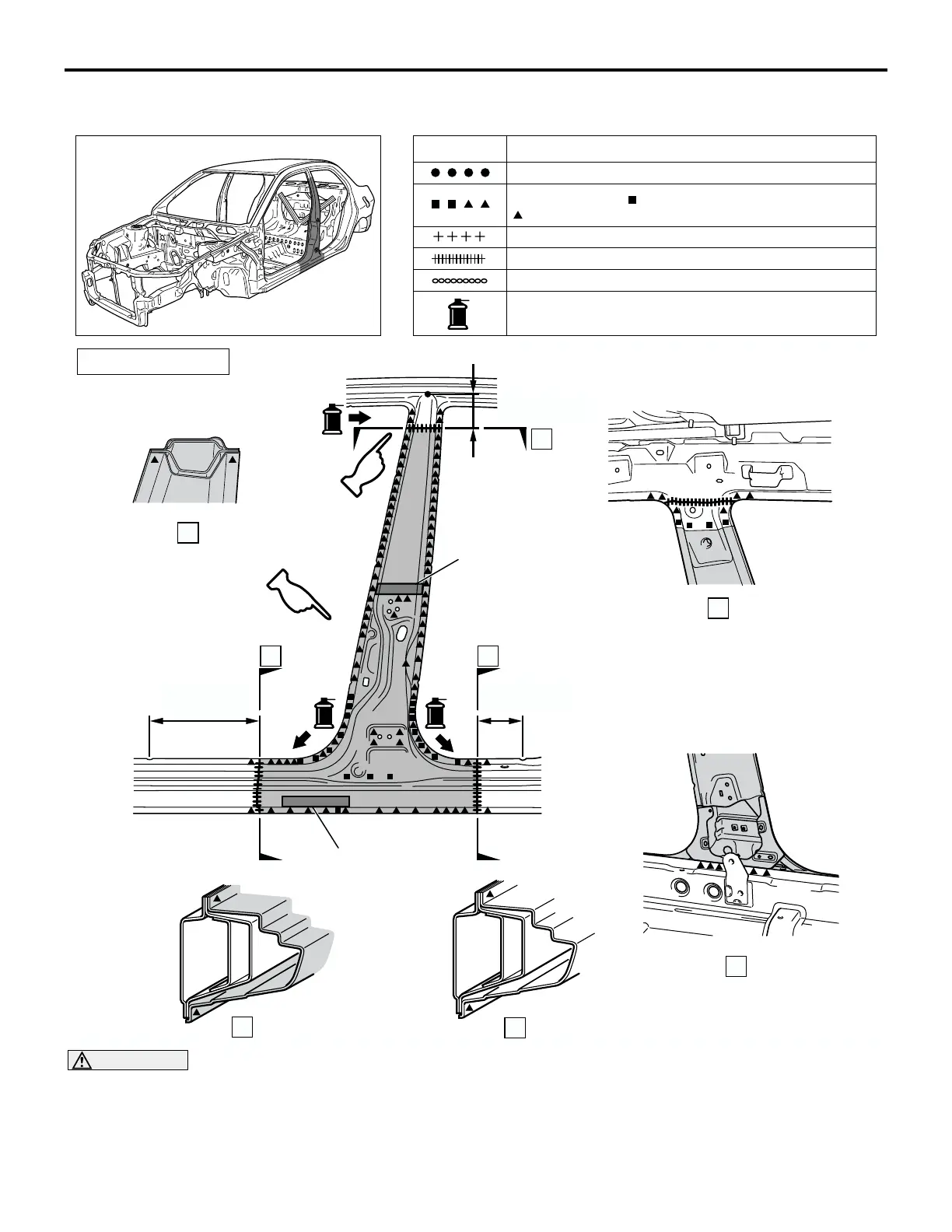

CENTER PILLAR
WELDED PANEL REPLACEMENT
3-17
CENTER PILLAR
M4030006000091
CAUTION
When repairing the area using foam materials do
not use firing tools since the foaming materials
may burn.
AB201907
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202090
AB
A
B
D
A
C
B
E
E
REPAIR WELDS
FOAM ACOUSTIC
MATERIAL
125 ± 10 mm
(4.9 ± 0.39 in)
290 ± 10 mm
(11.4 ± 0.39 in)
C
HIGH RIGIDITY
FOAM MATERIAL
125 ± 10 mm
(4.9 ± 0.39 in)
D
To Next Page
