SILENCER APPLICATION LOCATIONS
BODY CONSTRUCTION
1-21
SILENCER APPLICATION LOCATIONS
M4010005000115
A silencer (MD-12 and melting sheet) has been
adhered on the top part of the floor to improve anti-
vibration performance and to shut-out exhaust gas
heat.
NOTE: .
•
MD-12 is a high performance sheet composed of
asphalt applied with mica and thermosetting resin
for improving anti-vibration performance.
AB202009

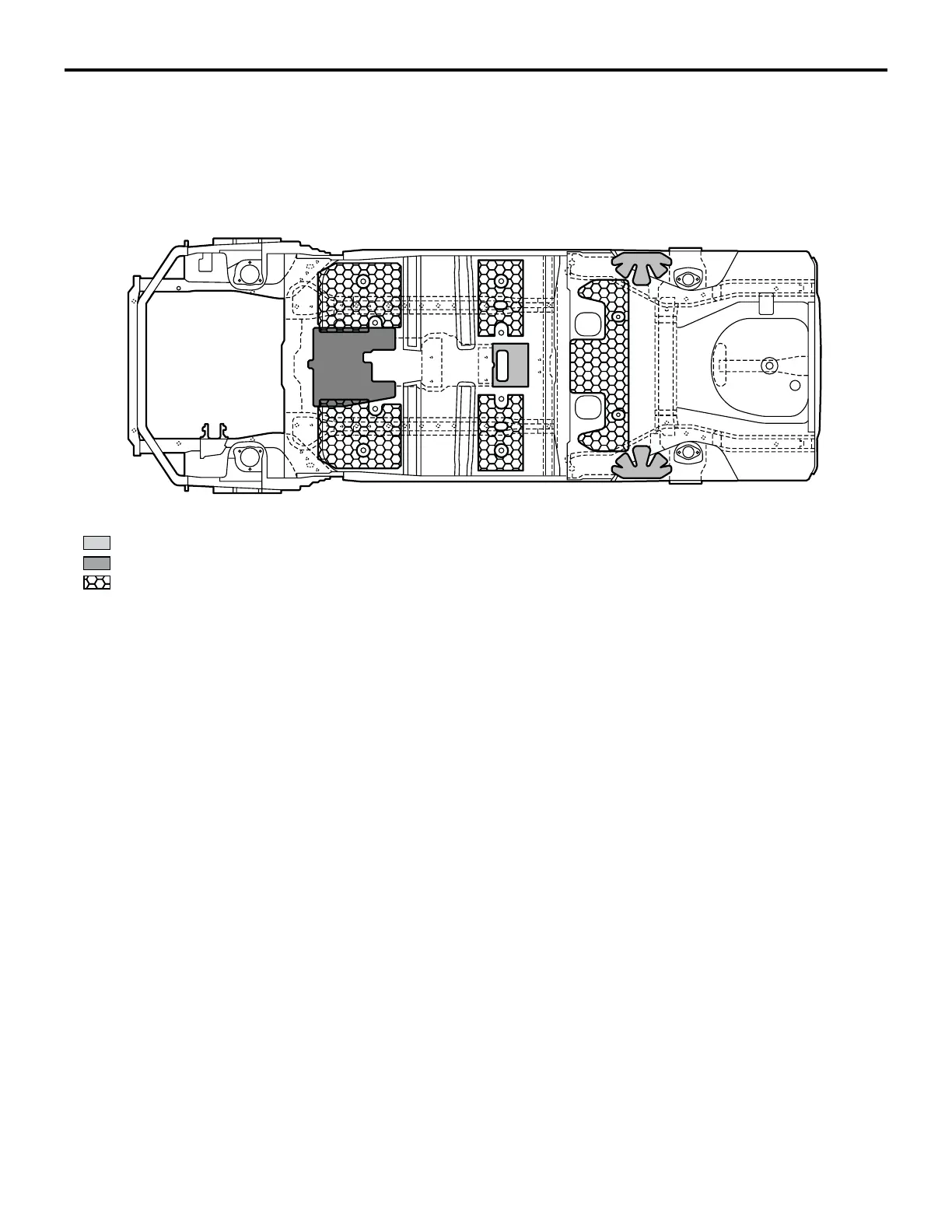

: 4.0 mm (0.157 in) thick MD-12 [Place three 1.6 mm (0.063 in) melting sheet one on top of another.]
: 1.6 mm (0.063 in) thick melting sheet
: 3.2 mm (0.126 in) thick melting sheet [Place two 1.6 mm (0.063 in) melting sheet one on top of another.]
AB
NOTE:
When you use melting sheet(s) in place of MD-12 during serving, follow the instructions enclosed by [ ].
To Next Page
