Mitsubishi LANCER EVOLUTION 2003 Body Repair Manual

TYPE A (PROJECTED DIMENSIONS)
BODY DIMENSIONS
2-4

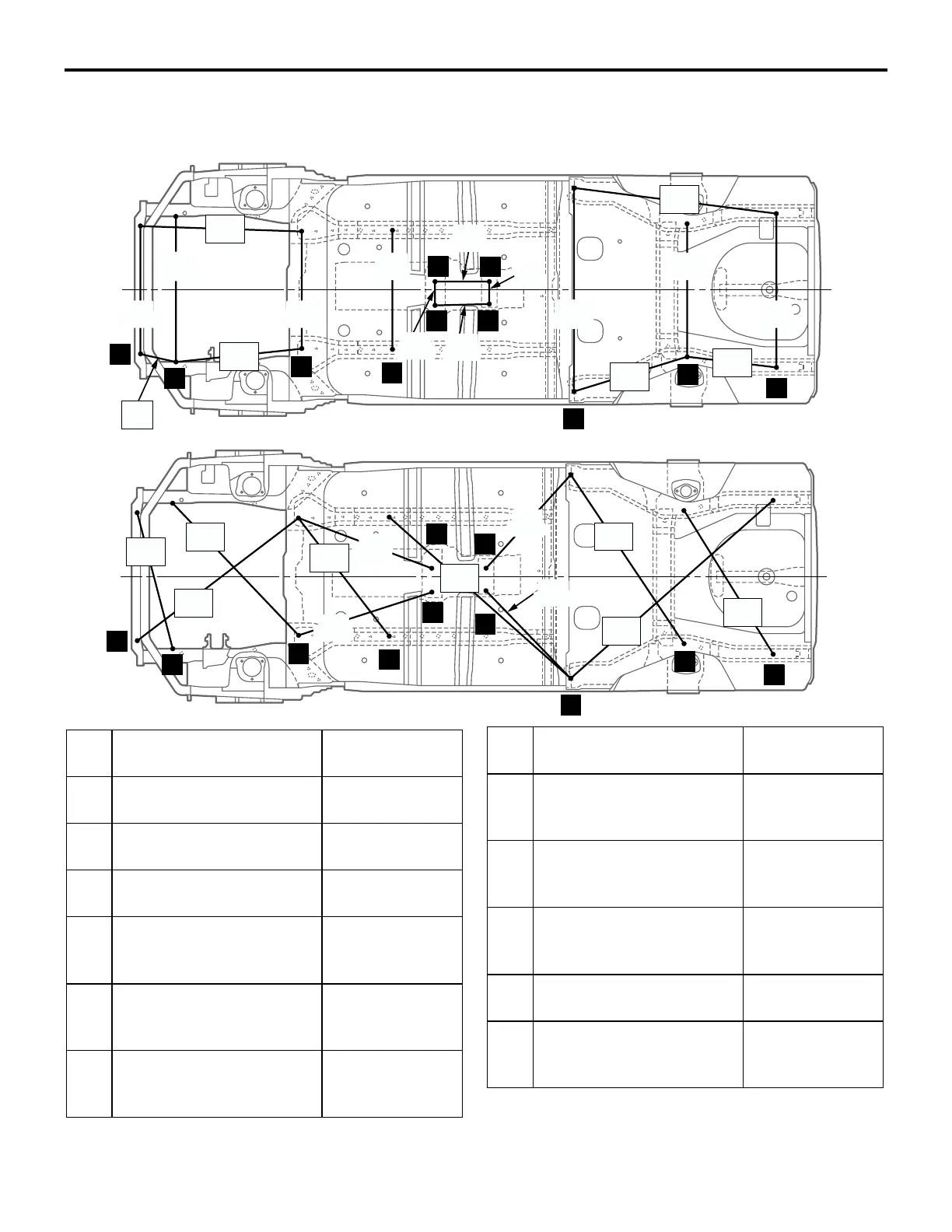

TYPE A (PROJECTED DIMENSIONS)
UNDER BODY
M4020005000150
NOTE: The * mark indicates the mounting position
for the frame centering gauge.
Y0620AV
AB201748
AB
1
2
3
4
8
9
11
10
5
6
7
786
(30.9)
982
(38.7)
750
(29.5)
1,239
(48.8)
713
(28.1)
1,010
(39.8)
714
(28.1)
722
(28.4)
1,232
(48.5)
810
(31.9)
544
(21.4)
940
(37.0)
mm (in)
247
(9.7)
338
(13.3)
340
(13.4)
153
(6.0)
161
(6.3)
Y0620AV
AB201749
AB
905
(35.6)
1,157
(45.6)
872
(34.3)
909
(35.8)
1,225
(48.2)
848
(33.4)
1,461
(57.5)
756
(29.8)
1,028
(40.5)
1,641
(64.6)
1,232
(48.5)
1
2
3
4
8
9
11
10
5
6
7
715
(28.1)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
1* Center of under cover
mounting hole
Round−8 (0.3)
2 Front sidemember inner
notch
−
3* Center of crossmember
mounting hole
Round−18 (0.7)
4* Center of front floor
sidemember positioning
hole
Round−25 (1.0)
5* Tip of center bearing
mounting bolt
(left-front side)
−
6 Tip of center bearing
mounting bolt
(right-front side)
−
7* Tip of center bearing
mounting bolt
(left-rear side)
−
8 Tip of center bearing
mounting bolt
(right-rear side)
−
9* Center of rear seat
crossmember positioning
hole
Oblong−22×38
(0.9×1.5)
10* Center of crossmember
mounting hole
Round−14 (0.6)
11* Center of rear floor
sidemember extension
drain hole
Round−20 (1.0)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
