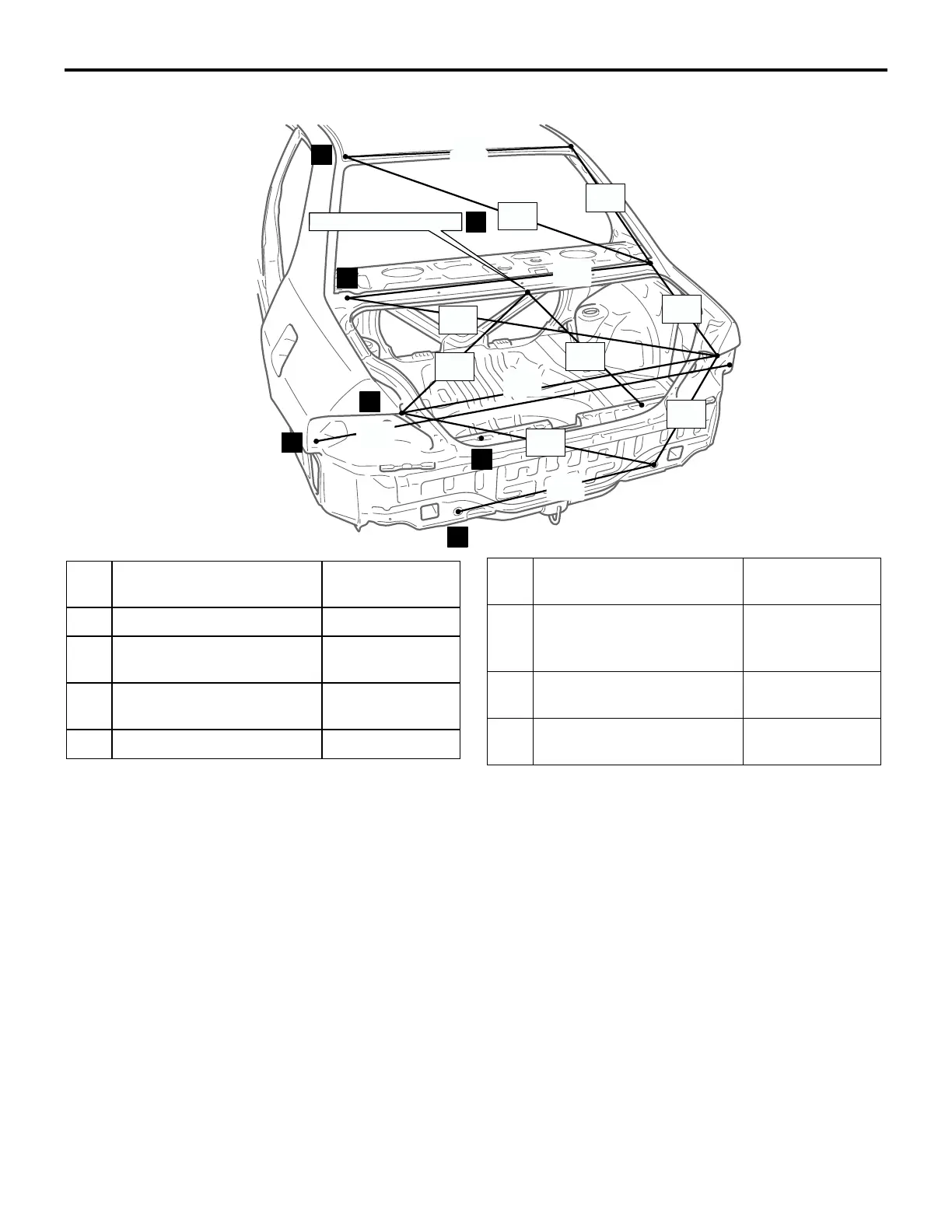

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)
BODY DIMENSIONS
2-16
REAR BODY
M4020008000085
AB201762
AB
52
54
53
mm (in.)
750
(29.5)
990
(39.0)
653
(25.7)
534
(21.0)
1,200
(47.2)
1,104
(43.5)
1,018
(40.1)
1,271
(50.0)
55
56
57
58
BODY CENTER POINT
1,269
(50.0)
708
(27.9)
567
(22.3)
456
(18.0)
1,562
(61.5)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
52 Corner of roof panel
−
53 Center of rear window
moulding mounting hole
Oblong−7×11
(0.3×0.4)
54 Rear shelf body center
point (Body center point)
−
55 Corner of side outer panel
−
56 Center of rear
combination lamp
mounting hole
Round−10 (0.4)
57 Center of rear end trim
mounting hole
Round−8.5 (0.3)
58 Center of rear end outer
panel positioning hole
Round−16 (0.6)
No. STANDARD
MEASUREMENT POINT
HOLE SHAPE−
SIZE mm (in)
