BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-16
REAR BODY
M4010012000087
REAR END CROSSMEMBER
A rear shelf extension has been added to form closed structure. Then, the rear shelf and the rear floor have
been joined to improve the torsion rigidity of the seat back plate.
REAR END PANEL

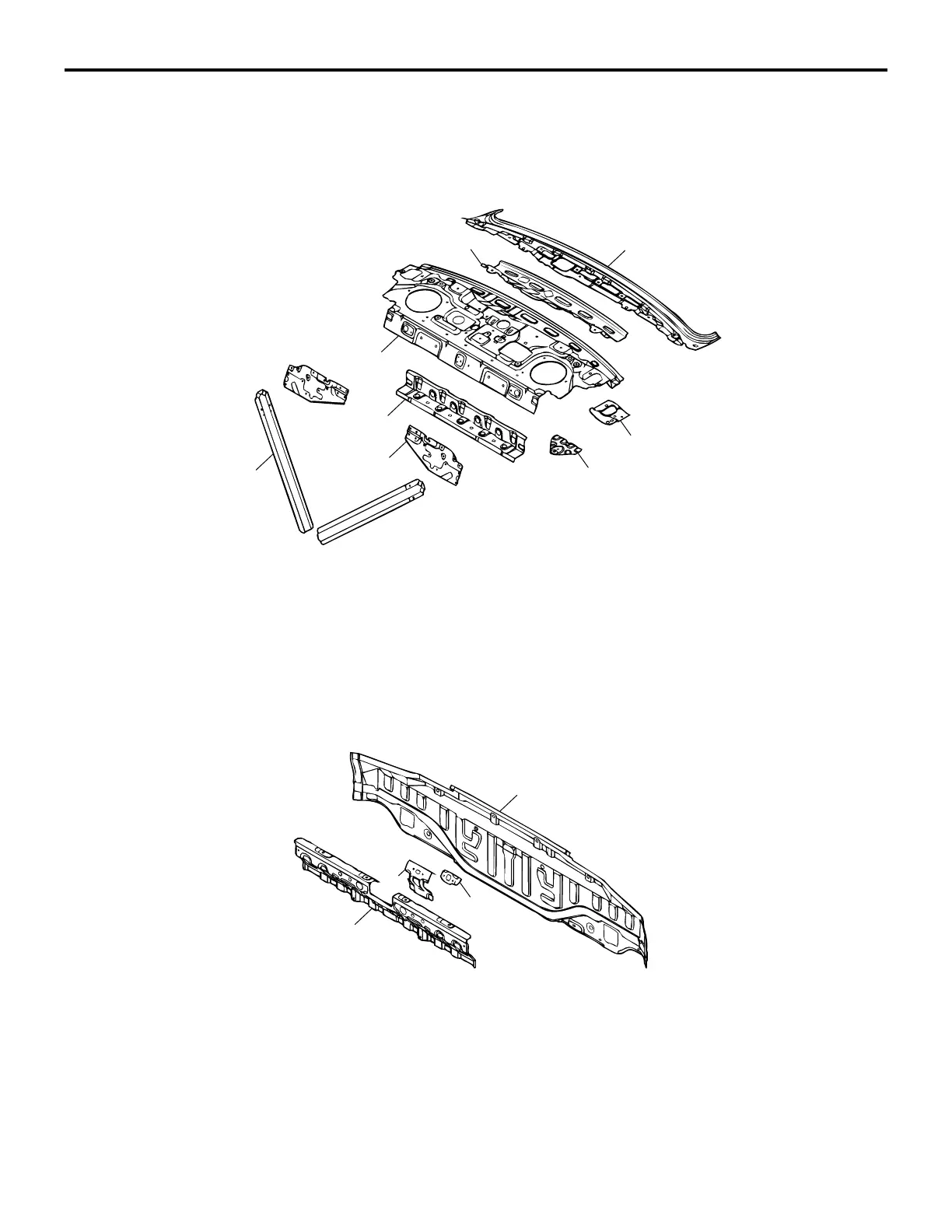

AB201022
AB
6
5
7
8
1
2
3
4
1. SEAT BACK PLATE
2. REAR SEAT BACK PANEL
3. REAR SHELF EXTENSION
4. REAR SHELF PANEL
5. REAR SHELF CHILD SEAT BELT
REINFORCEMENT
6. REAR SHELF REINFORCEMENT
7. TRUNK LID HINGE REINFORCEMENT
8. SEAT BELT REINFORCEMENT
AB201024
AB
2
3
1
4
1. REAR END PANEL INNER
2. REAR END PANEL OUTER
3. TRUNK LID LOCK BRACKET SUPPORT
4. TRUNK LID LOCK BRACKET
