2. If it is not within the standard value range, adjust by turning
the adjusting screw.
Standard value:
(Vertical direction): Top of the hot zone should be
101 mm (4.0 inches) (0.76°) downward from the
height of the fog light center.
Limit:
(Vertical direction): Top of the hot zone should be
152mm (6.0 inches) (1.14°) in maximum downward
from the height of the fog light center.
NOTE: The horizontal direction is non-adjustable. If deviation of
the light beam axis exceeds the standard value, check that the
mounting location or some other points are not faulty.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) - AIR BAG
M4080016000020
WARNING
• Improper service maintenance of any SRS
air bag can lead to unintended operations
of the SRS system or serious injury.
• If SRS components may be subjected to
heat over 90
°
C (194
°
F), during painting,
remove the SRS control unit, air bag mod-
ule (driver’s seat, passenger seat), clock
spring, interconnecting wiring, SRS warn-
ing light and pre-tensioner seat belt.
• Service or maintenance of any SRS air
bag components or related components
must be performed only at an authorized
MITSUBISHI dealer.
• Before beginning service or maintenance
of any SRS air bag components or related
components, MITSUBISHI dealer person-
nel must thoroughly review the Service
Manual (especially GROUP 52B - SRS AIR
BAG).
AC211727

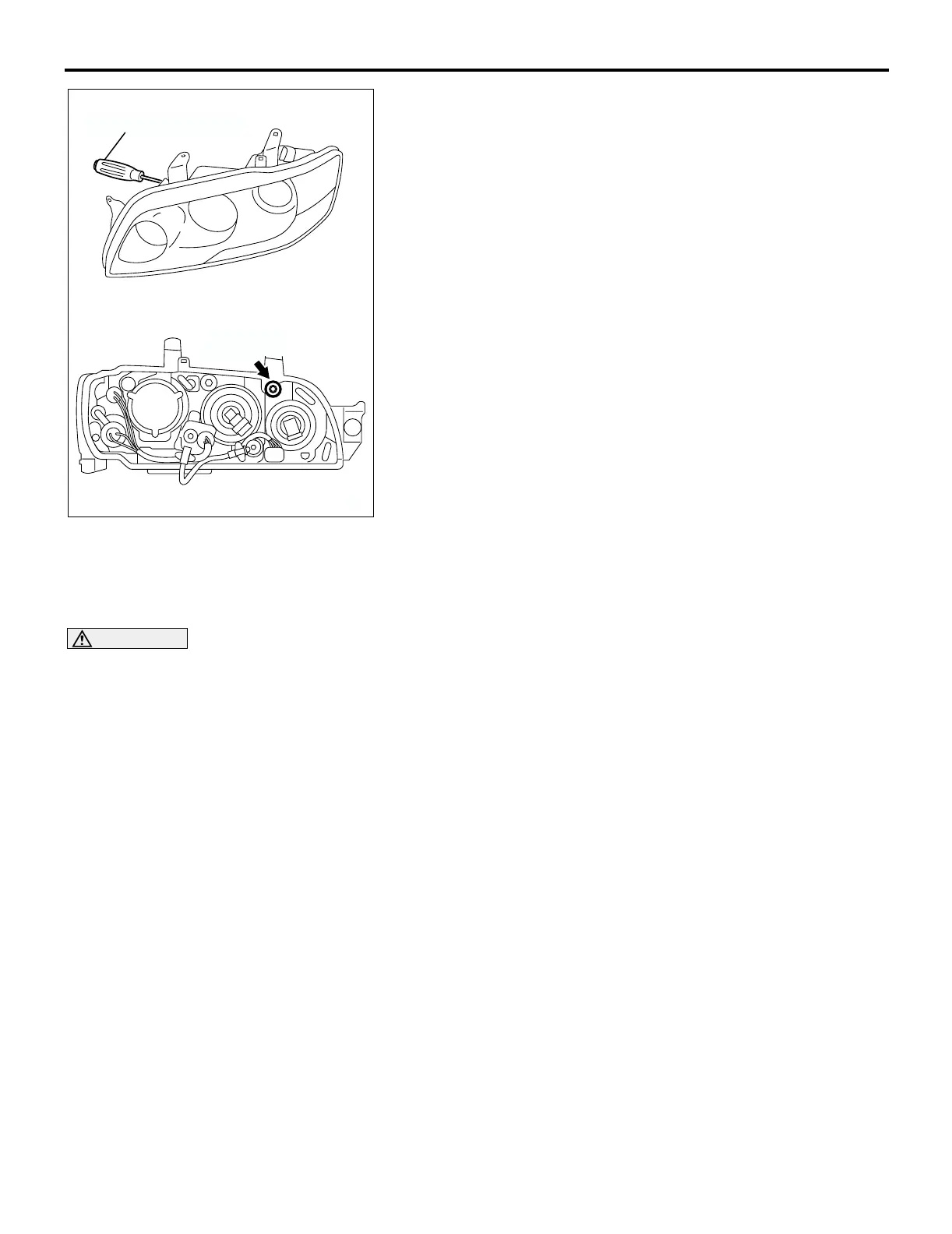

VERTICAL ADJUSTING
VERTICAL
DIRECTION
AB
