Mitsubishi QCPU (Q Mode) User Manual

5 - 10 5 - 10
MELSEC-Q
5 ASSIGNMENT OF I/O NUMBERS
5.5.2 Remote station I/O number

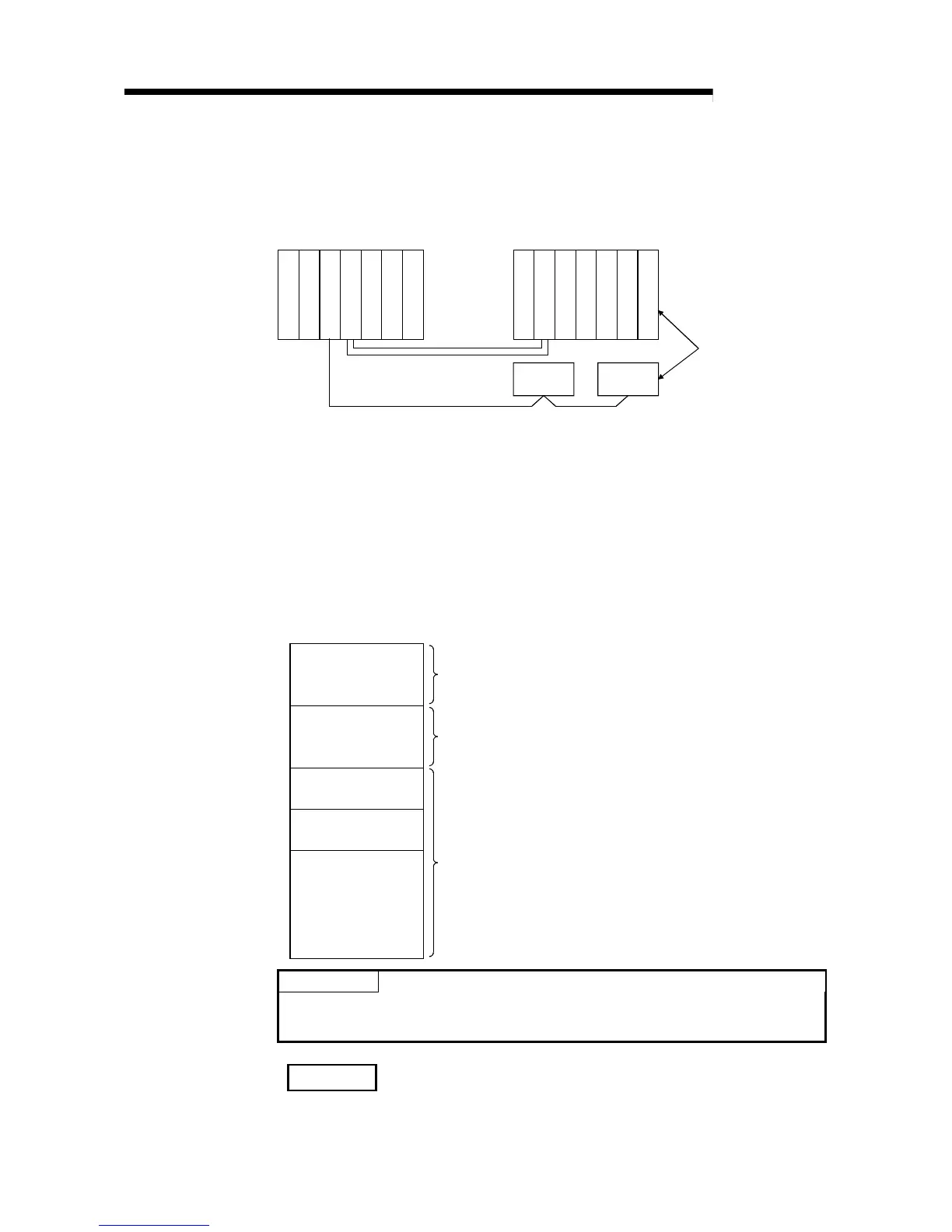

It is possible to allocate High Performance model QCPU device input (X) and output
(Y) to remote station I/O modules and intelligent function modules and control the
modules in the MELSECNET/H remote network, the CC-Link and other remote I/O
systems.
Power supply
Remote
station
MELSECNET/H
CC-Link
Allocation of
QCPU input (X) and
output (Y) possible
Power supply
Remote
station
CPU module
QJ61BT11
QJ71LP21
QX41
QY41
Q64AD
QY41
QY41
Q64AD
QJ72LP25
QX41
QX41
When using High Performance model QCPU device input (X) and output (Y) in remote
stations, I/O numbers that succeed the numbers used by the main base unit and
extension base units' I/O modules and intelligent function modules will be allocated.
For example, if X/Y0 to X/Y3FF are being used by the main base unit and extension
base units' I/O modules and intelligent function modules, then numbers above X/Y400
can be used by the remote station.
However, the I/O numbers for remote stations should be set in consideration of
additions to the main base unit and extension base units' I/O modules and intelligent
function modules.
For example, if 1024 points from X/Y0 to X/Y3FF are being used by the main base unit
and extension base units, and 256 points from X/Y400 to X/Y4FF are to be held back
for use with future additions, then the situation shown in the diagram below is to be
observed.
X/Y0
X/Y3FF
X/Y400
X/Y4FF
X/Y500
X
/Y1FFF
I/O (X/Y)
For MELSECNET/H
remote I/O station
For CC-Link remote
station
I/O numbers being used by the main base unit and
extension base units
Held back for future additions
I/O numbers that can be used by remote stations
to
to
to
POINT
If network parameter setting is not made in the CC-Link system, 2048 points in the
range from X/Y1000 to X/Y17FF are assigned to the master local module of the
CC-Link having the lowest number.
REMARK
There is restriction on the order of allocating I/O numbers for MELSECNET/H
remote I/O networks, CC-Link or other networks.
