Mitsubishi QCPU (Q Mode) User Manual

10 - 58 10 - 58
MELSEC-Q
10 DEVICES
10.11 Other Devices
10.11.1 SFC block device (BL)
This device is used for checking if the block designated by the SFC program is valid.
For details on the use of SFC block devices, refer to the QCPU(Q mode)/QnACPU
Programming Manual (SFC).
10.11.2 SFC transition device (TR)
This device is used for checking if a forced transition is designated for a specified
transition condition in a specified SFC program block.
For details regarding the use of SFC transition devices, refer to the QCPU(Q
mode)/QnACPU Programming Manual (SFC).
10.11.3 Network No. designation device (J)
(1) Definition
The network No. designation device is used to designate the network No. in data
link instructions.

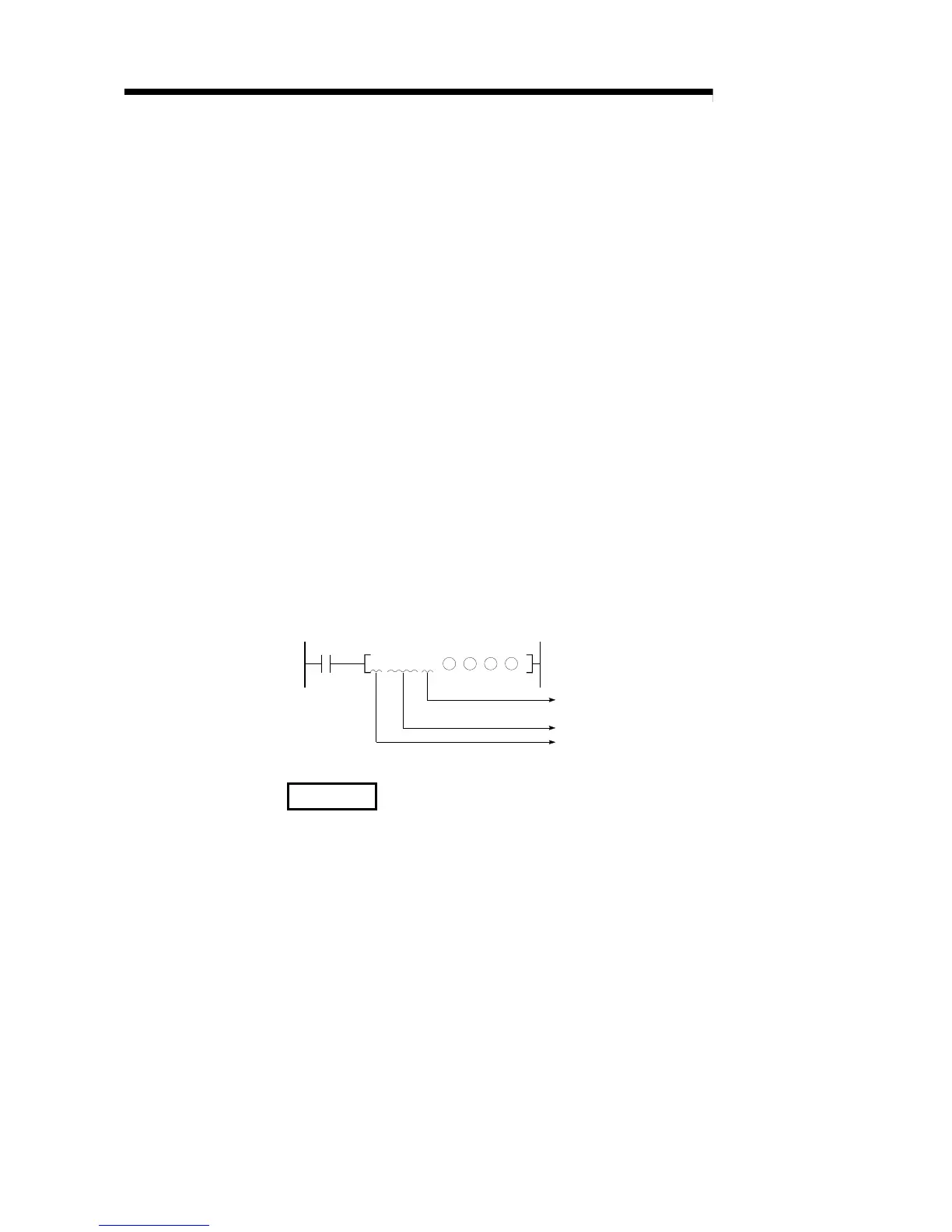

(2) Designating network No. designation device
The network No. designation device is designated in the data link instruction as
shown below.
JnJP.READ
Network No. designation device
(n: network No.)
Instruction name
Network No. designation instruction
S1 S2 S3
D
REMARK
For details on data link instructions, refer to the Q Corresponding MELSECNET/H
Network System Reference Manual.
