4 SEQUENCE PROGRAM CONFIGURATION AND EXECUTION
CONDITIONS
(1) Execute Type Setting

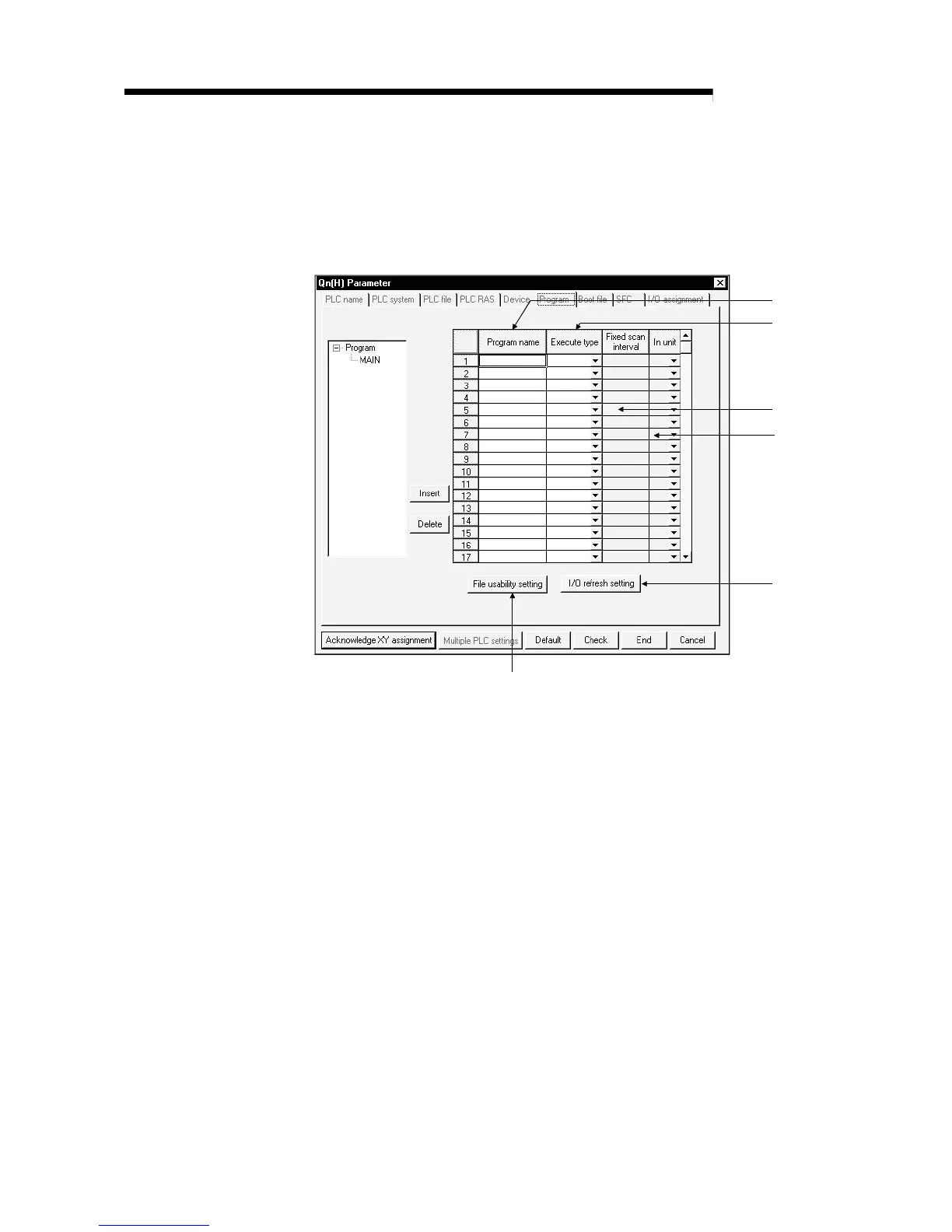

(a) To execute several programs, specify a "Program name" and "Execute
type" of each program at the "Program" tab screen in the “(PLC)
Parameter" dialog box.
High Performance model QCPU will execute the selected programs in the
order of specified Execute Type setting.
6)
5)
4)
3)
2)
1)
1) Program name
This column is used to specify a program name (file name) of the
program to be executed by High Performance model QCPU.
2) Execute type
This column is used to specify the execute type of the program defined
in the "Program name" column. See Section (b).
3) Fixed scan
This column is used to specify time intervals at which to an execution
type program.
The Fixed Scan setting range is determined by the units of time
intervals as follows:
• In the unit "ms": 0.5 to 999.5
• In the unit "s": 1 to 60
4) In units
This column is used to specify the units (ms/s) of fixed scan intervals.
To Next Page
