Single Slot Serial/USB Cradle
This section provides information and setup instructions for the Single Slot Serial/USB Cradle.

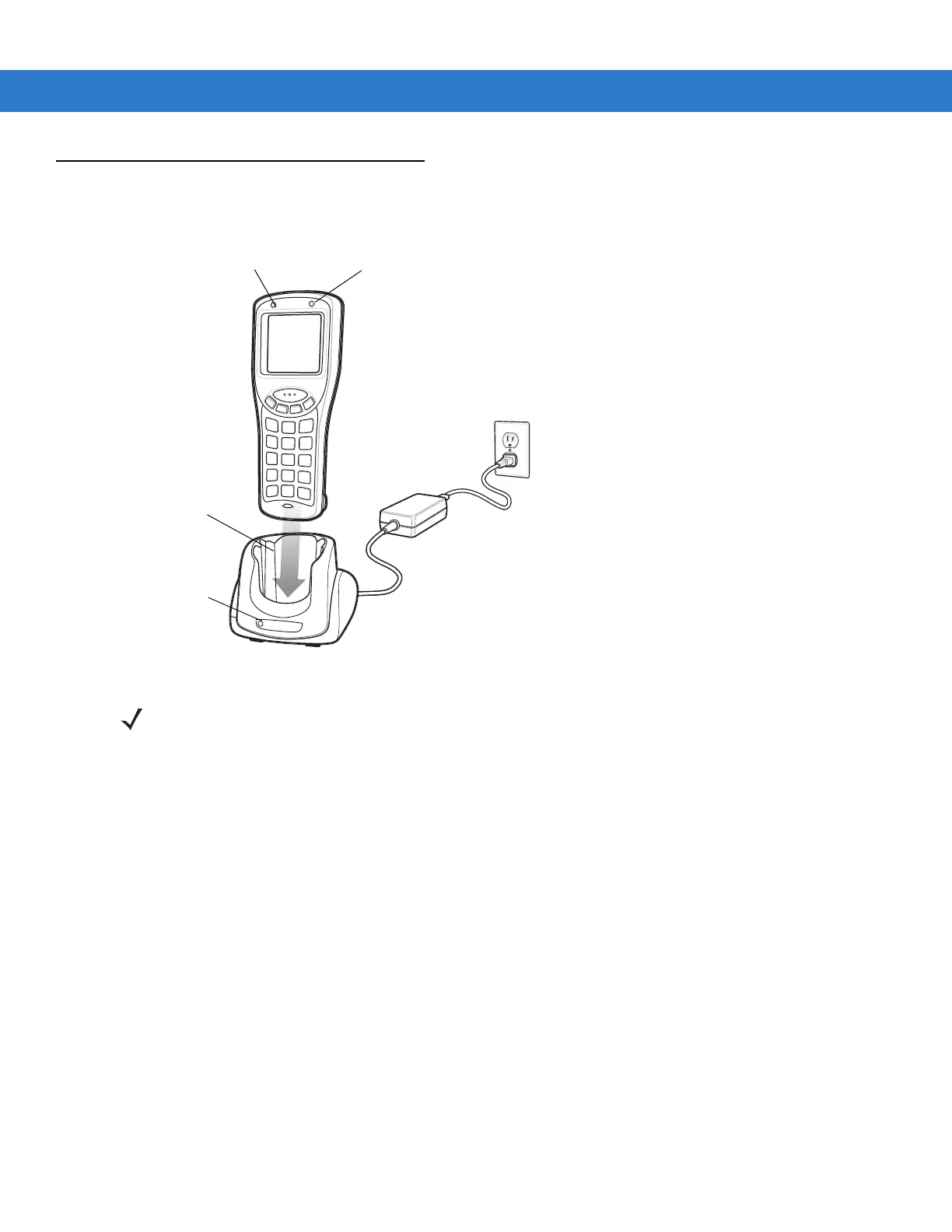

Figure 2-1 Single Slot Serial/USB Cradle
The Single Slot Serial/USB cradle:
• Provides 5.4VDC power for operating the mobile computer.
• Provides a serial port and USB port (mini B receptacle) for data communication between the mobile
computer and a host computer.
• Synchronizes information between the mobile computer and a host computer (with customized or third party
software, it can also synchronize the mobile computer with corporate databases).
• Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer (cradle serial communication cable is available). For communication setup procedures,
see Communication on page 2-13.
• Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer (cradle USB communication cable is available). For communication setup procedures, see
Communication on page 2-13.
• Charges the mobile computer’s Li-ion battery.
• Charges a spare Li-ion battery.
Charge LED
Mobile
Computer Slot
Spare Battery
Charging LED
Scan LED
NOTE Use only a Zebra-approved power supply output rated 5.4 VDC and minimum 3A. The power supply is certified
to EN60950 with SELV outputs. Use of alternative power supply will invalidate any approval given to this
device and may be dangerous.
HINWEIS Benutzen Sie nur eine Zebra genehmigt in den Ausgabe: 5.4 VDC und minimum 3A. Die Stromversorgung
ist bescheinigt nach EN60950 mit SELV Ausgaben. Bei Verwendung eines anderen Netzteils werden alle für
das Gerät gewährten Genehmigungen außer Kraft gesetzt, und der Betrieb kann gefährlich sein.
