2 - 8 MC1000 with Windows CE 5.0 Integrator Guide
Four Slot Ethernet Cradle
This section describes how to set up and use a Four Slot Ethernet cradle with the mobile computer.
The Four Slot Ethernet cradle:
• Provides 5.4 VDC power for operating the mobile computer.
• Connects the mobile computer (up to four) to an Ethernet network.
• Simultaneously charges up to four mobile computers (with batteries installed).
You cannot ActiveSync using the Four Slot Ethernet cradle. To ActiveSync with a host computer, use the SIngle
Slot Serial/USB cradle.
Setup
Connect the Ethernet cradle (Ethernet port 1) to an Ethernet hub or a port on the host device. Connect the Ethernet
cradle (power port) to a Zebra approved power supply.

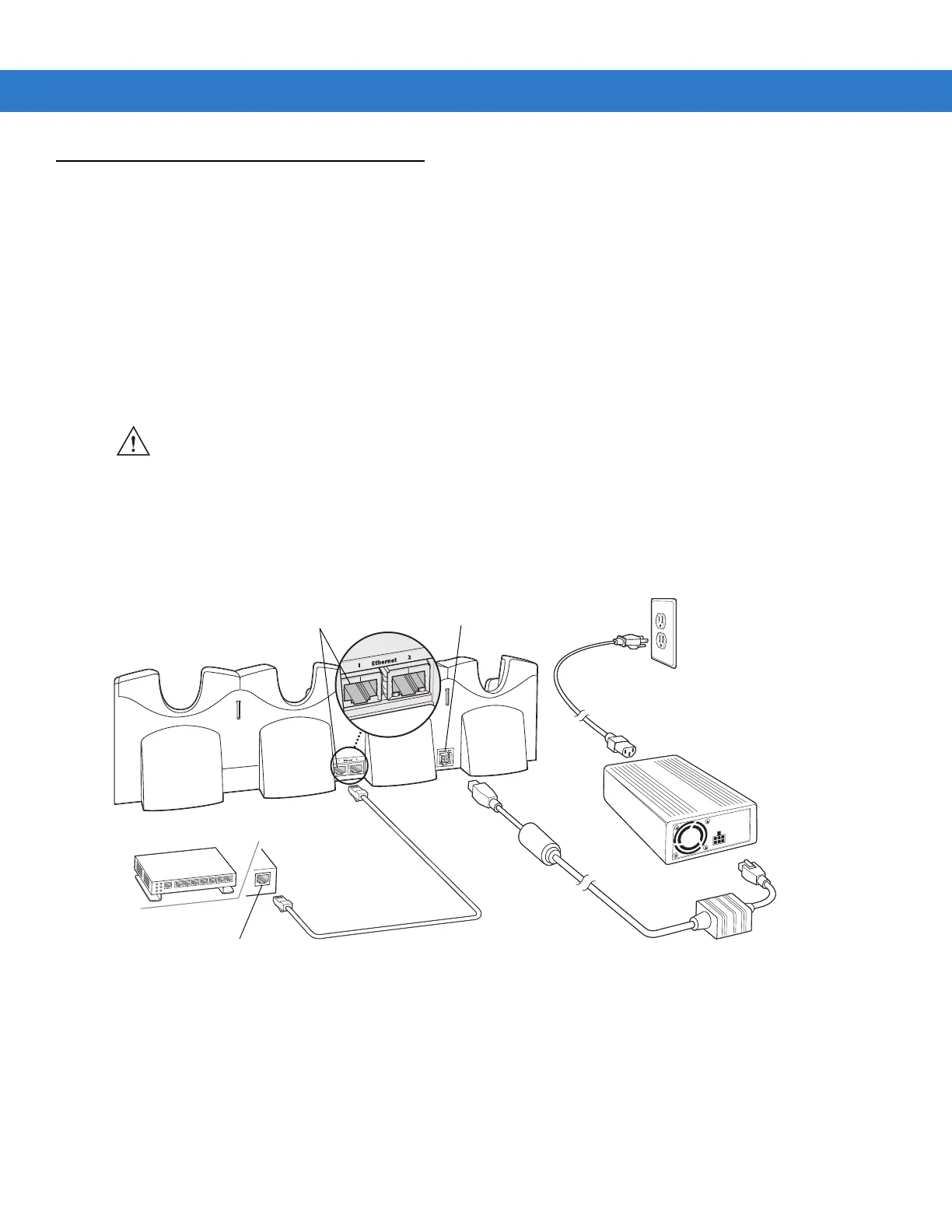

Figure 2-7 Four Slot Ethernet Cradle Connection
Speed LED
The green Speed LED lights to indicate that the transfer rate is 100 Mbps. When it is not lit it indicates that the
transfer rate is 10Mbps.
CAUTION Use only a Zebra approved power supply output rated 12 VDC and minimum 9 A. Use of an alternative
power supply will void the product warranty and may cause product damage. See the MC1000 User Guide
for the power supply regulatory compliance statement.
Power Port
Ethernet Port 1
Ethernet Switch
Connection
