2 - 4 MC1000 with Windows CE 5.0 Integrator Guide

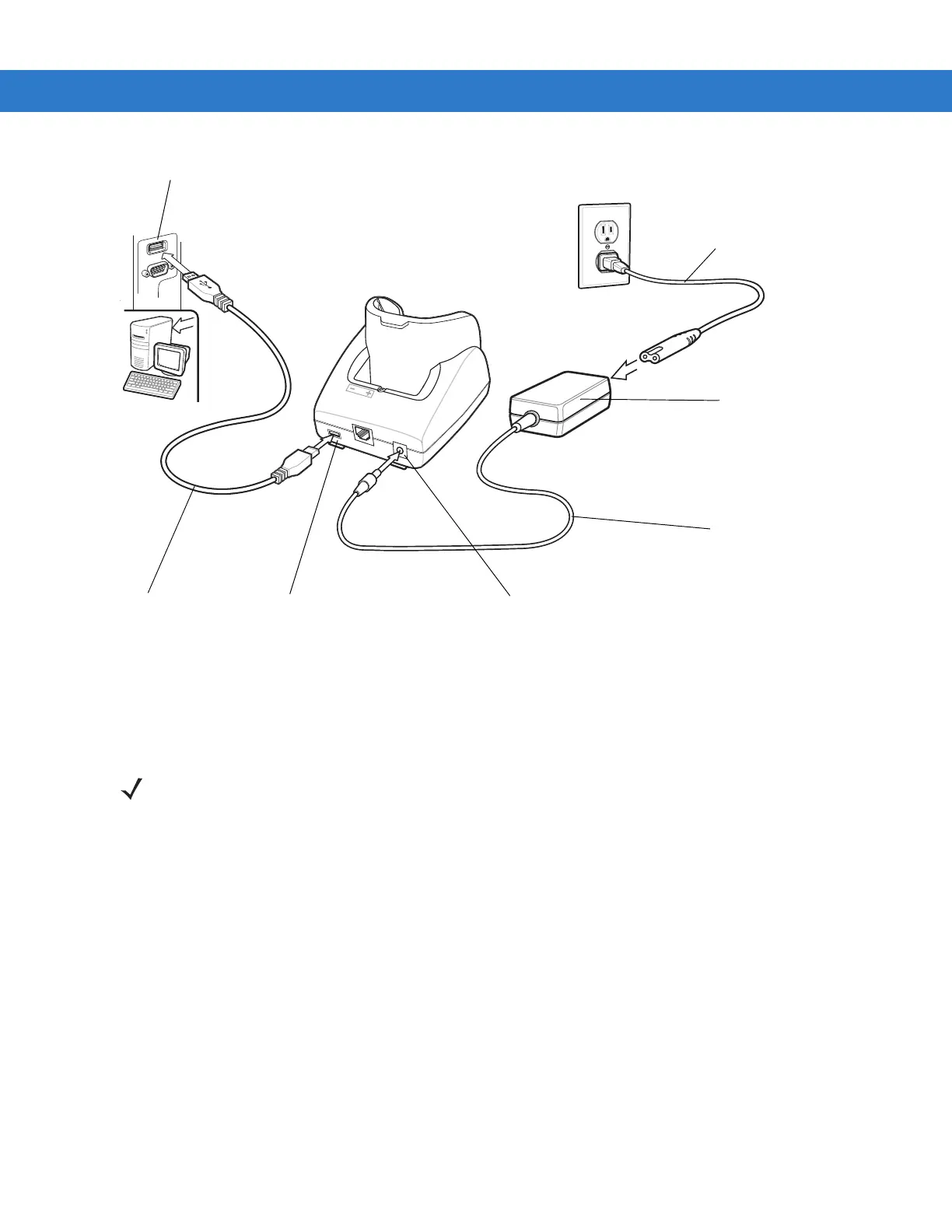

Figure 2-3 Single Slot Serial/USB Cradle - USB Setup
Battery Charging
The Single Slot Serial/USB cradle can charge the mobile computer’s Li-ion battery and a spare Li-ion battery
simultaneously.
To charge the mobile computer:
1. Connect the Single Slot Serial/USB cradle to a power source.
2. Firmly press the mobile computer into the mobile computer slot. The mobile computer’s Charge LED indicates
the mobile computer battery charging status.
3. When charging is completed, hold the cradle with one hand and lift the mobile computer out of the cradle with
the other hand.
To charge the spare Li-ion battery:
1. Connect the Single Slot Serial/USB cradle to a power source.
2. Align the battery contacts as shown on the cradle. Note the polarity icon on the battery.
3. Insert the Li-ion battery into the battery slot noting the battery polarity.
USB Port
DC Cable
Power Supply
Power Port
USB Cable
USB Port
AC Line Cord
NOTE Re-chargeable AAA batteries do not charge in the mobile computer when the mobile computer is placed in the
Single Slot Serial/USB cradle.
To charge the battery for your mobile device, battery and charger temperatures must be between +32° F and
+104° F (0° C to +40° C).
