Nikon T-RCP User Manual

I Preparations
1 Connecting and Setting Electrical Components
- 13 -
I
I
Preparations
1
Connecting and Setting Electrical Components

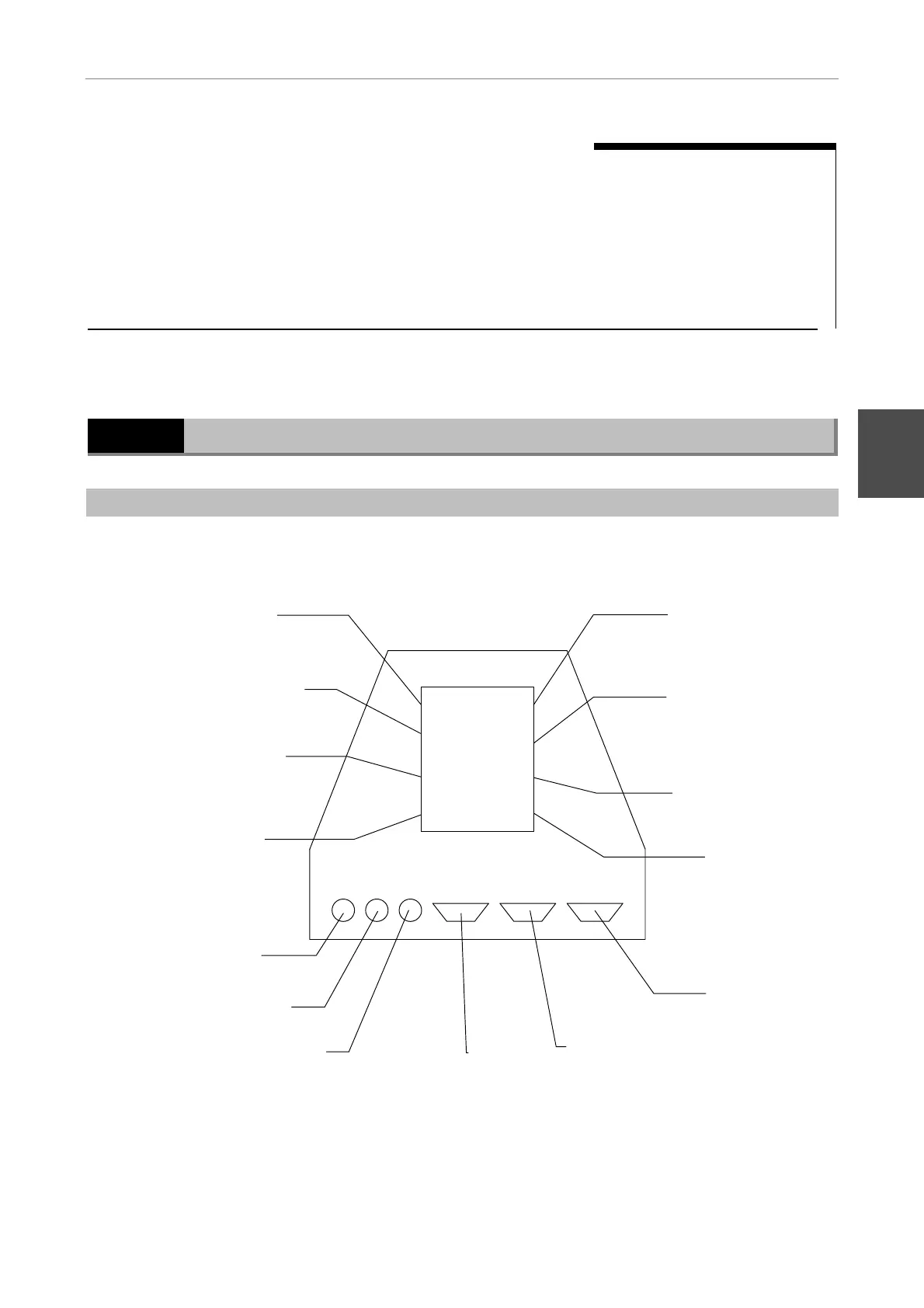

(1) Connecting Electrical Components to HUB Controller
Make sure that the power switches for the microscope and the HUB controller are OFF.
Connect the electrical components to be used to the HUB controller.
Revolving nosepiece
(Motorized nosepiece)
A
nalyzer
(Motorized analyzer)
Excitation filter changeover
(Ex filter wheel)
Episcopic illumination
shutter
(Motorized Epi-fl attachment)
Barrier filter changeover
(BA filter wheel)
Filter block changeover
(Motorized cassette
holder)
Condenser module
changeover (Motorized
condenser turret)
T-EFN Focus Knob
PC
External device
(XY stage, etc.)
Uniblitz shutter
controller
Remote control pad
Dia-Illumination lamp power supply
(TS2-PS100W power supply)
* TE-PS30 and TE-PSE30 power
supplies cannot be connected.
Foot switch, etc.
[Connector panel of HUB controller]
