Introduction
4 Startup and Shutdown
- 7 -
4

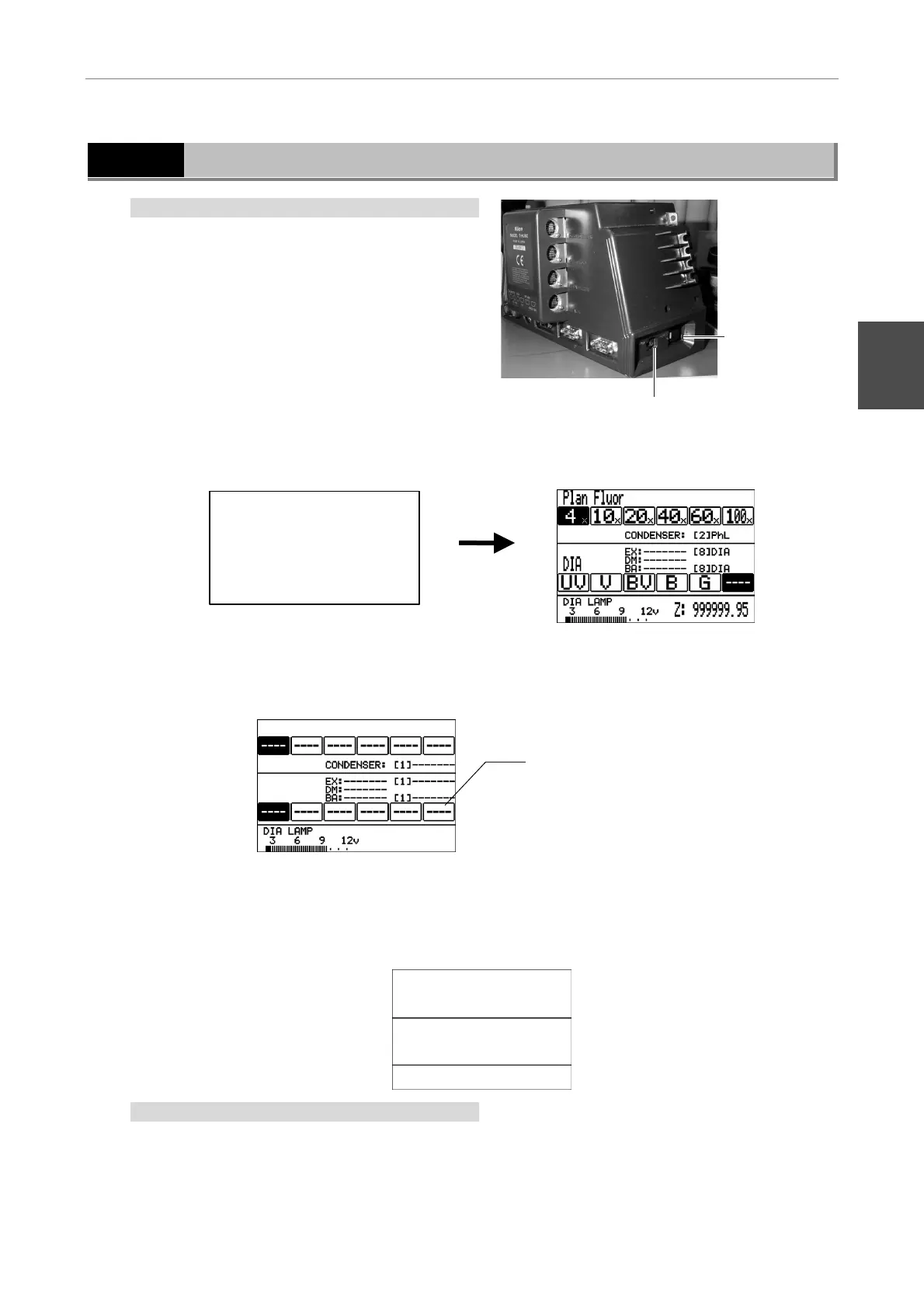

Startup and Shutdown
1
Startup
1) Turn ON power for the dia-illumination lamp. When
using Uniblitz shutter, also turn ON power for the
Uniblitz shutter controller.
2) Turn ON the power to the HUB controller.
3) Power is supplied to the remote control pad from the
HUB controller.
AC
[Side panel of HUB controller]
The TITLE screen appears on the LCD of the remote control pad and changes to the OPERATION screen in 2 or
3 seconds.
Ｔ－ＲＣＰ ＲＥＭＯＴＥ ＣＯＮＴＲＯＬ ＰＡＤ
Ｖ１．００
[TITLE screen] [OPERATION screen]
Note:
When you use the remote control pad for the first time, all the optical members, such as the objectives, will
be set by default to “Not attached” and the Operation screen will appear as shown below.
“---------” indicates that the optical
member is “not attached.”
If an electric component is not connected to the HUB controller, the indication of the component will be
blank.
If the electrical component is not connected to the HUB controller correctly, the HUB controller cannot
detect the component and the indication of the component will also be blank.
If no electrical component is connected to the HUB controller, the screen will appear as shown below.
2
Shutdown
1) Turn OFF the power to the HUB controller.
2) Turn OFF power for the dia-illumination lamp and
the Uniblitz shutter controller.
Power switch
Connect the specified AC adapter
To Next Page
