Nokia NSM–3 User Manual

NSM–3/3D
Service Software Instructions
PAMS Technical Documentation
Page 31
Issue 4 02/2002
 Nokia Mobile Phones Ltd.
RX AM Suppression... command
Activation Status Bar Text
Alt, T, M, A Open RX Measurements dialog box
Starts RX AM Suppression tuning for the phone.
Dialog mode: Modal

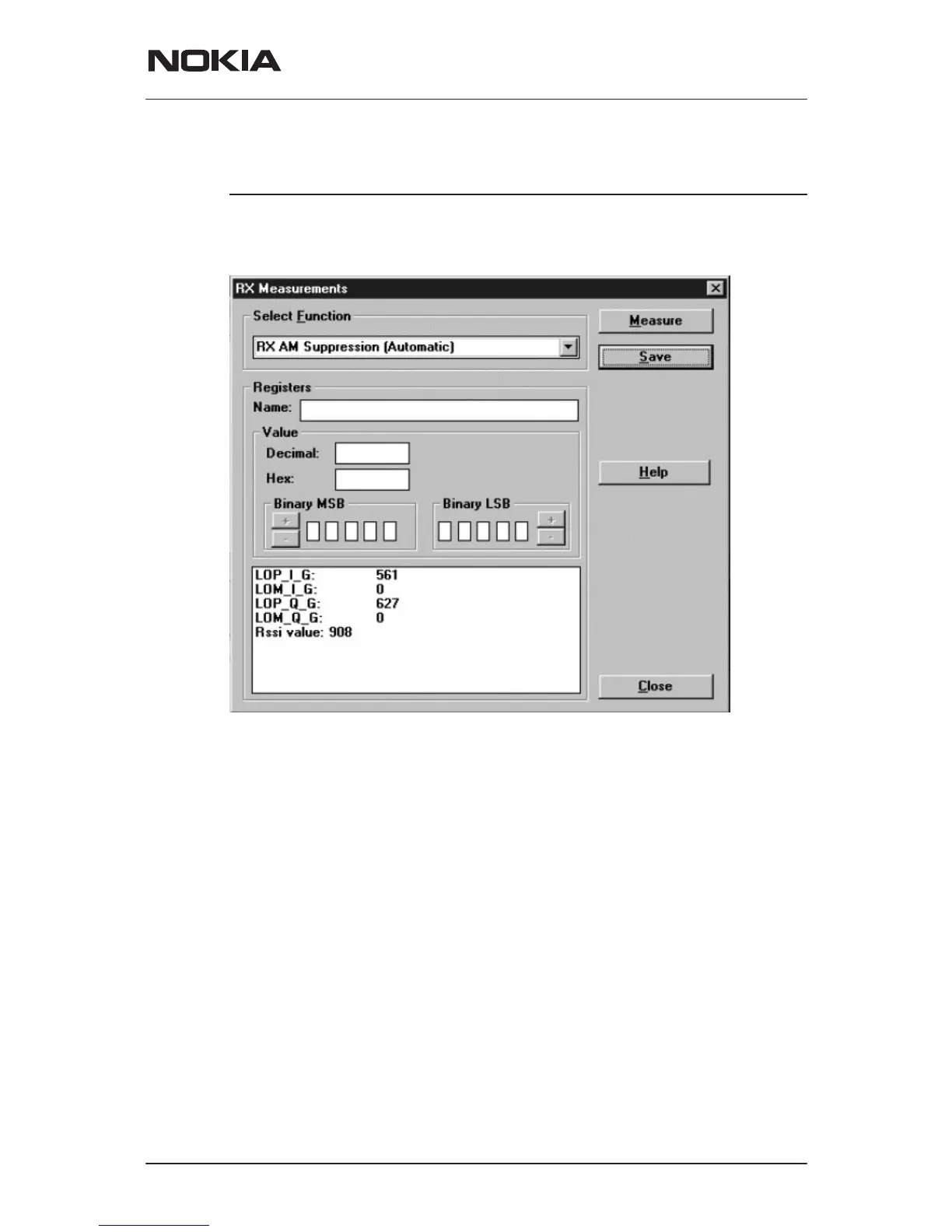

RX Measurements dialog includes the following items:
Select Function listbox:
Shows the list of automatic selections. When a selection is
made the values are loaded from the phone.
Value group:
This group includes several items. At the bottom there is a list
of registers and values they currently have. Double clicking a
record from the list will bring it’s name to the name edit box.
The value is shown in the three different format decimal, hexa-
decimal and binary. All these controls display the same value
and changing one causes changes to others too. Last line
shows RSSI value.
Measure button:
This button causes the measurement to be done. When se-
lected following dialog is shown.
