NSM–3/3D
Non Serviceable Accessories
P
AMS T
echnical Documentation
Page 3
Issue 3 1
1/2000
Nokia Mobile Phones Ltd.

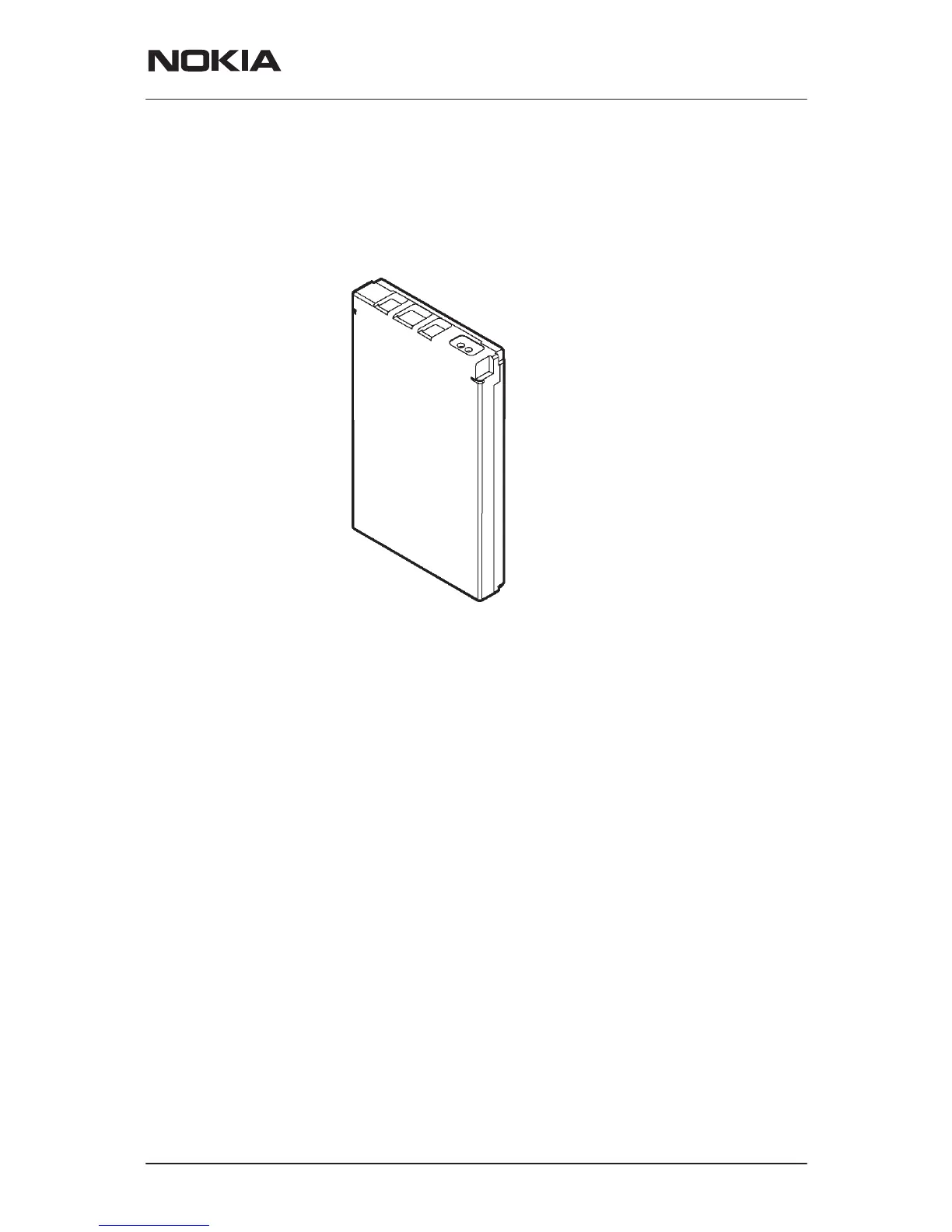

Standard Battery BLB–2
The BLB–2 is a Li–ion battery with 650 mAh capacity in white plastic
package.
Product Code
Battery pack BLB–2:
0670246
330
332
