Nokia NSM–3 User Manual

NSM–3/3D
Service Software Instructions
PAMS Technical Documentation
Page 67
Issue 4 02/2002
 Nokia Mobile Phones Ltd.
SCM & User Settings... command
Activation Status Bar Text
Alt, D,M Open SCM & User settings dialog box.
This command is used to get SCM and user settings from phone to file
and vice versa. Following information is loaded/saved with this dialog: all
user settings, graphical/text wake up message, SCM, alarms, calendar
items and CLI logos and groups. Only values of supported features are
saved or loaded. Also SCM in SIM is not saved or loaded.
When data is written or read phone waiting dialog is showed to the user.
Dialog mode: modal

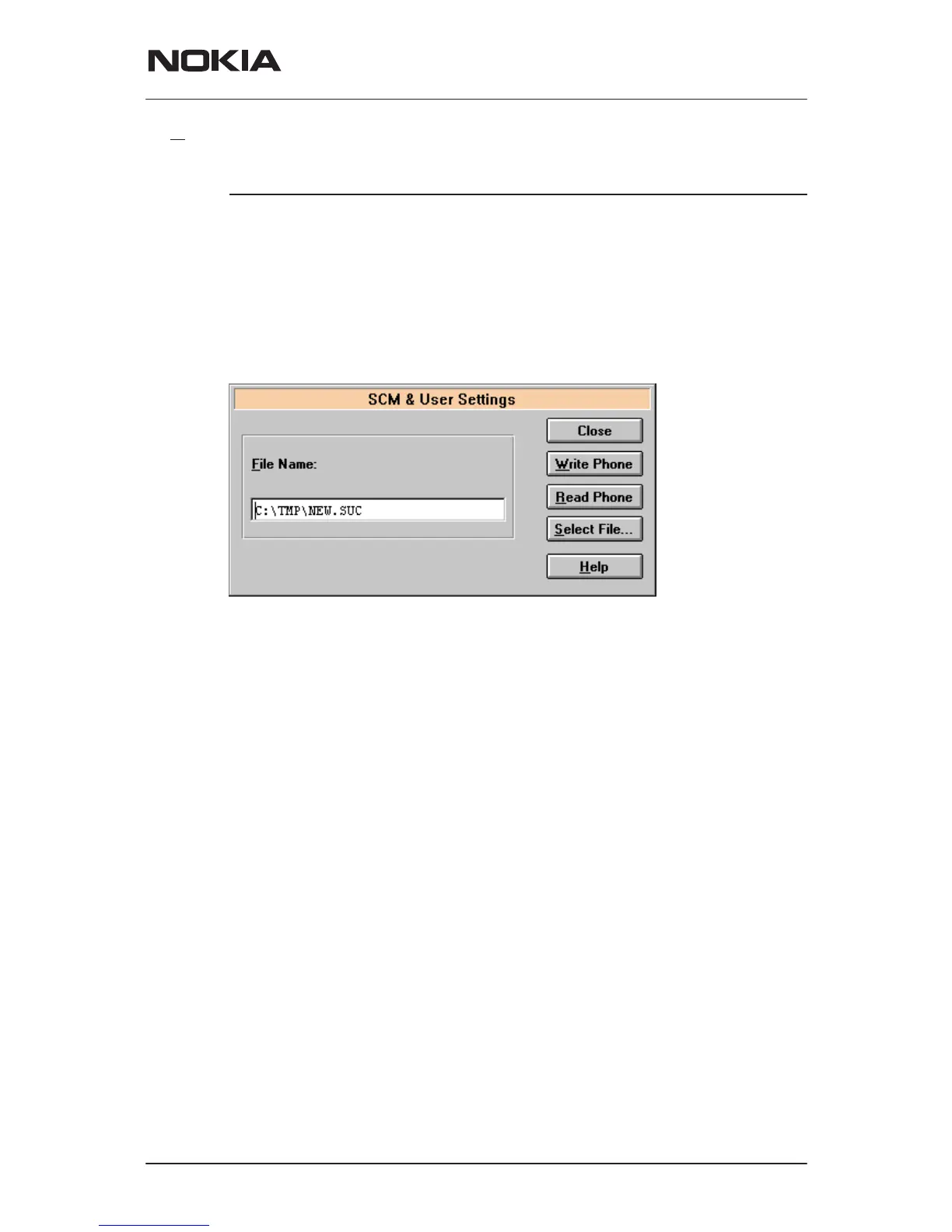

SCM & User Settings dialog box includes following items:
File Name edit field (ALT+F):
the user can edit file name or select file with Open File dialog.
When dialog is opened, it contains name of the previously
saved or loaded file.
Write Phone button (ALT+W):
Loads settings from file and writes them to phone.
Read Phone button (ALT+R):
Reads settings from phone and writes them to file.
Select File button (ALT+S):
Opens Open File dialog, with which the user can select the file,
that contains the data to be loaded to ME or file to which data
is saved from ME. If the user selects OK button, the name of
selected file is copied to File Name edit field.
Close button (ESC):
Closes the dialog box.
