Service Box JBU-6
The Service Box JBU-6 is used:
- to make connection between transceiver and FLA-5/FLA-7 for flashing
- to help functional tests
- to enable connection to test/measurument devices
- to generate accurate 4.1 and 8.4 voltage for Vbatt and Vin/Vchar lines
- to generate accurate 500mA current for charging calibration Vin line
- to generate 10 ms IBI-pulse to BTMP-line
NOTE: JBU-6 cover should be closed during measurements.
Product Code
Service Box JBU-6: 0770153

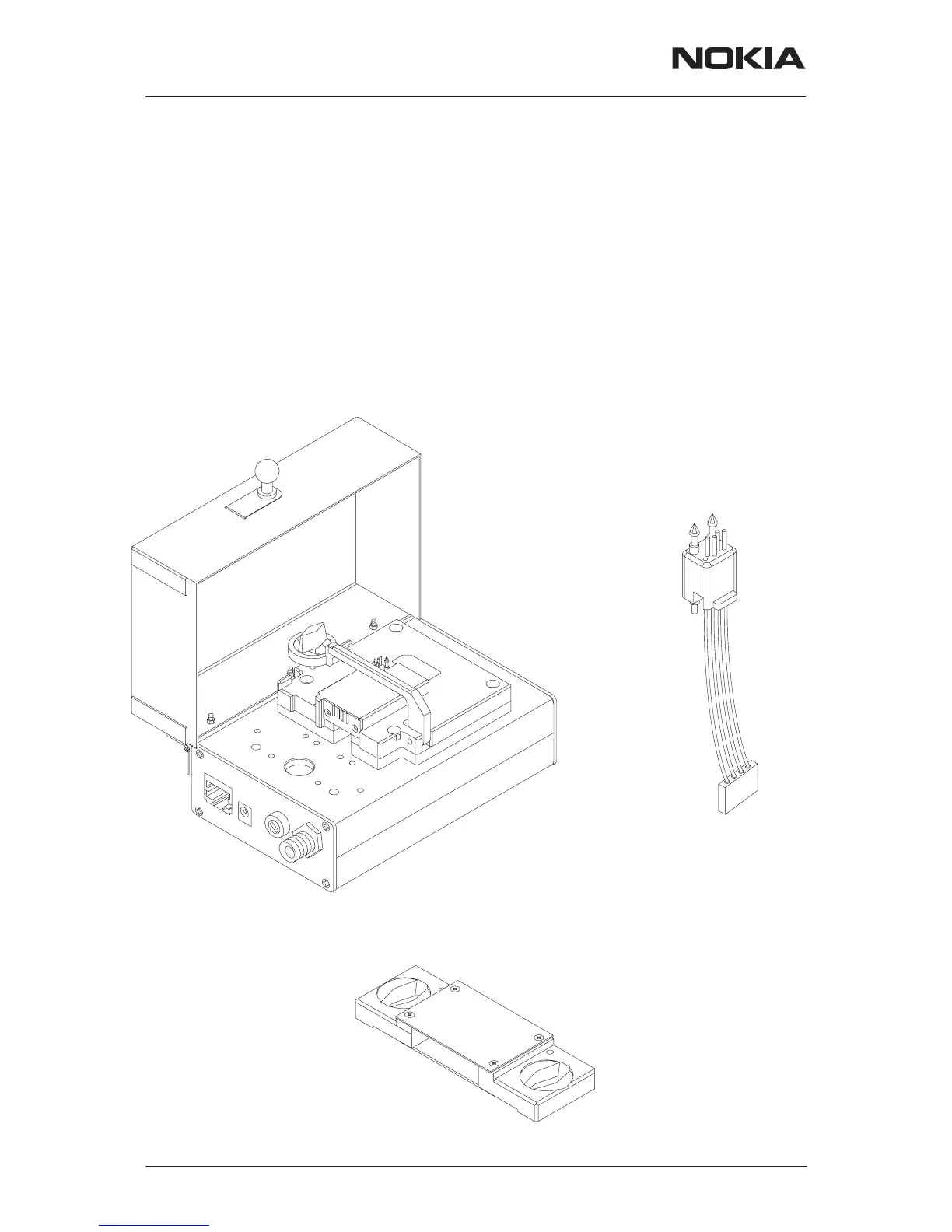

View of JBU-6
Pinset Cable SCD-6:
Spare part for JBU-6.
SCD-6:
Sales Package code: 0080329
RF Module RL6 for Service Box JBU-6
RF Module RL6: 0770172
