NSM–3/3D
Service Tools
PAMS Technical Documentation
Page 12
Issue 4 02/2002
 Nokia Corporation.
Security Box TDF-4
The Security Box TDF-4 is required for updating MCU software, and infra
red testing.
Note 1: TDF-4 is delivered in de-activated mode. Fill in the enclosed
Activation Request Form, and fax to NMP Salo to get the
activation code
Note 2: The infra red module JLP-1 (P/N 0750079) is not included in
the TDF-4 sales package
Product Code
Security Box TDF-4: 0770106

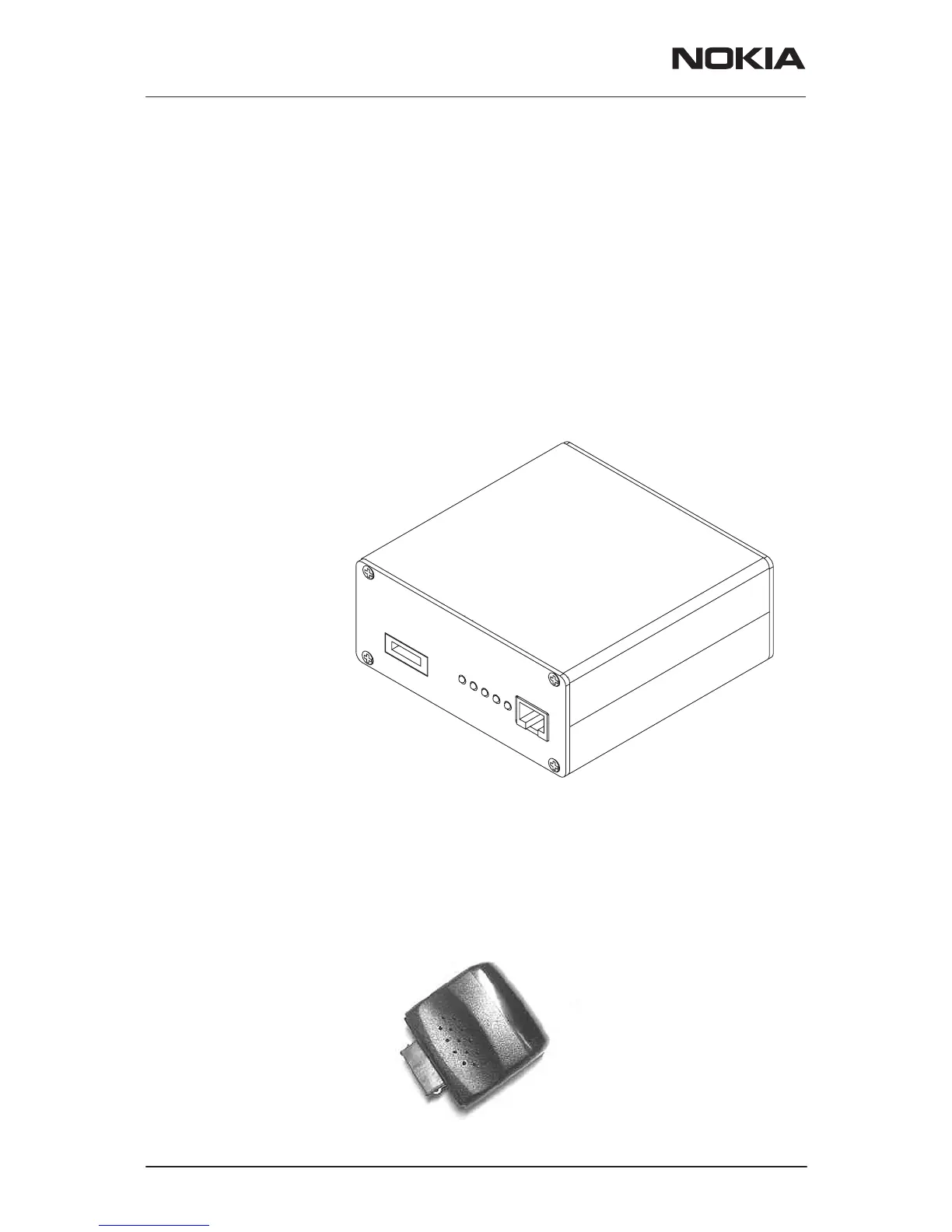

View of TDF-4
View of IR Data Interface Module JLP-1
IR Data Interface Module JLP-1 fits in the Security Box TDF-4 and can be
used to perform IR tests with WinTesla.
Product Code
IR Data Interface Module JLP-1: 0750079
