NSM–3/3D
Service Software Instructions
PAMS Technical Documentation
Page 40
Issue 4 02/2002
 Nokia Mobile Phones Ltd.
Testing
The Testing sub menu offers functions for ME testing.
R
F Controls... command
Activation Status Bar Text
Alt, E,R Open RF Controls dialog box
This function is used for RF testing.

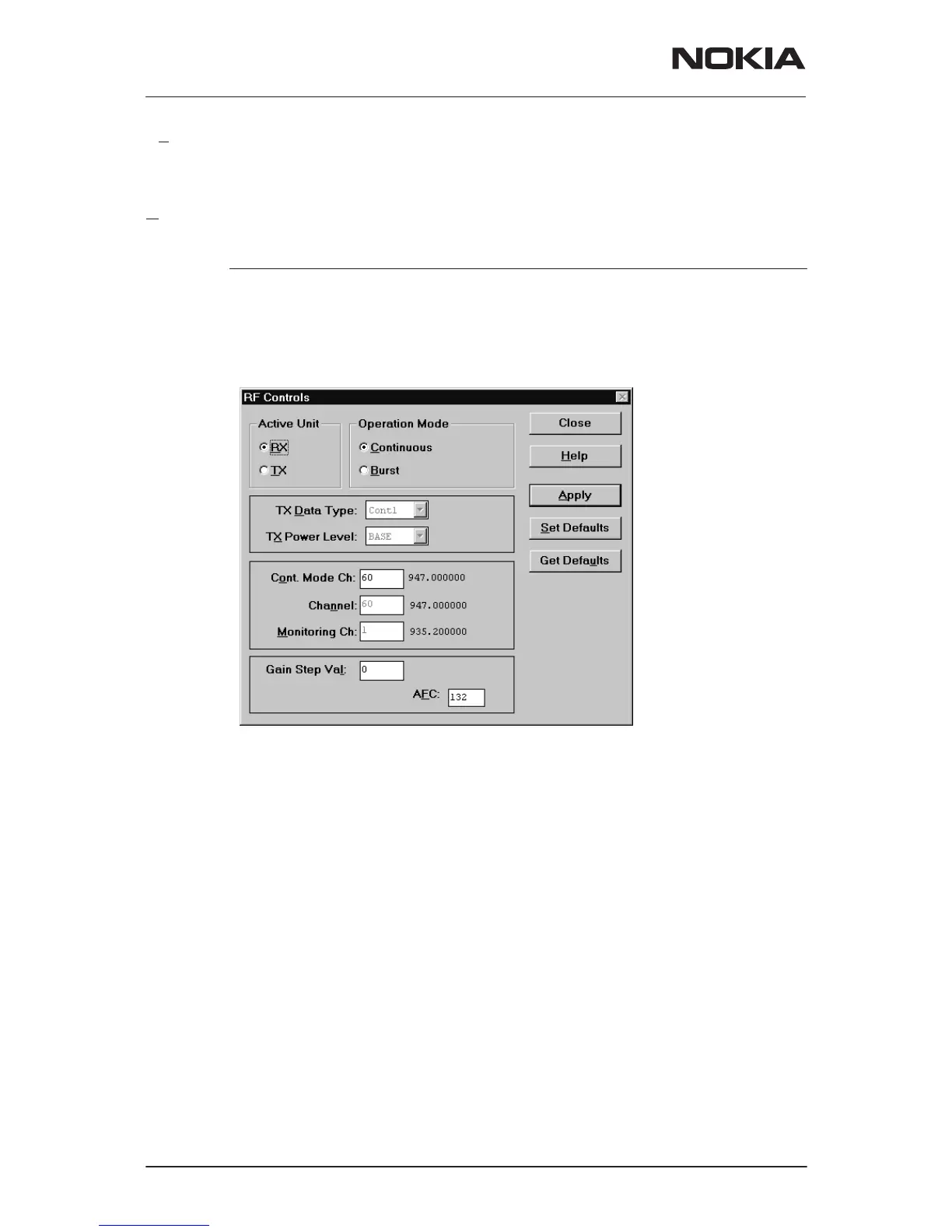

Command opens RF Controls dialog, which contains data for testing and
adjustments.
Dialog mode: modal
RF Controls dialog includes following items:
Active Unit group:
RX radio button (ALT+R):
When
RX is selected, the next functions are made:
Data transmission is deactivated
TX power is deactivated
If operation mode is continuous,
– AGC is controlled
– RX continuous mode channel is activated
RF Information window is updated
The RX value is always given as default.
Note! Function is activated immediately, Apply is not needed.
TX radio button (ALT+T):
