Nokia NSM–3 User Manual

NSM–3/3D
Service Tools
PAMS Technical Documentation
Page 13
Issue 4 02/2002
 Nokia Corporation.
Flash Battery BBF-1
The Flash Battery BBF-1 is used in place of the standard battery of the
phone during flashing.

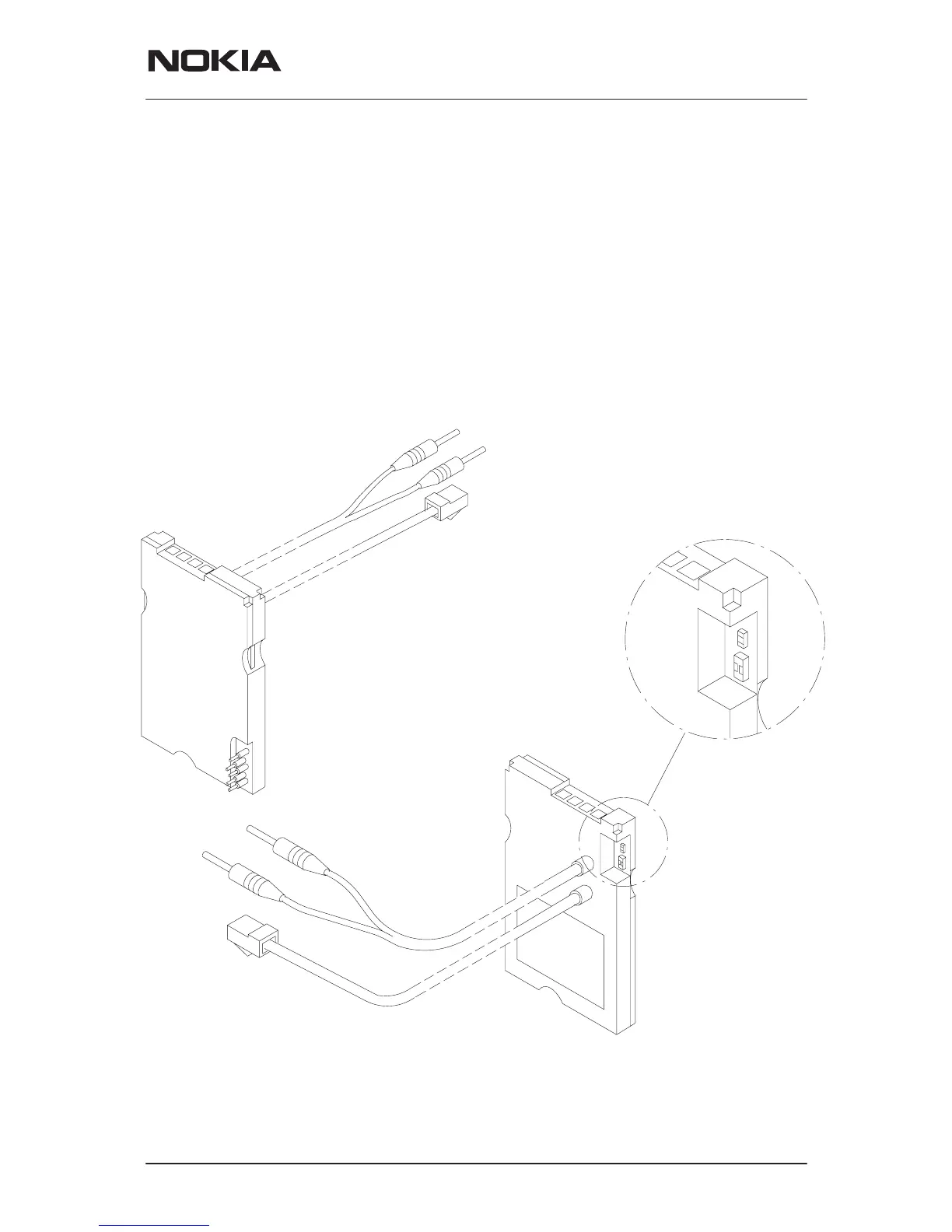

The zoom in picture describes two changeable over voltage protection
components:
SM Fuse F2.0 A 32V 1206 F 001 T 5119002 (larger of the two)
VWM 5.6V VC15.5 R 008 T 1825019
Product Code
Flash Battery BBF-1: 0775206
View of BBF-1
*Note: The nominal supply voltage for BBF-1 is +8.0 V.
The supply voltage must not exceed +15.0 V.
(BBF-1 has overvoltage protection).
