NSM–3/3D
Service Software Instructions
PAMS Technical Documentation
Page 45
Issue 4 02/2002
Nokia Mobile Phones Ltd.
Self Tests... command
Activation Status Bar Text
Alt, E,S Open MCU Self–tests dialog box
Command is used for reading self test results and running self tests.
When the selection is made, the test result is read from ME. The test re-
sult will be shown to the the user within MCU Self–test dialog.
Dialog mode: modal

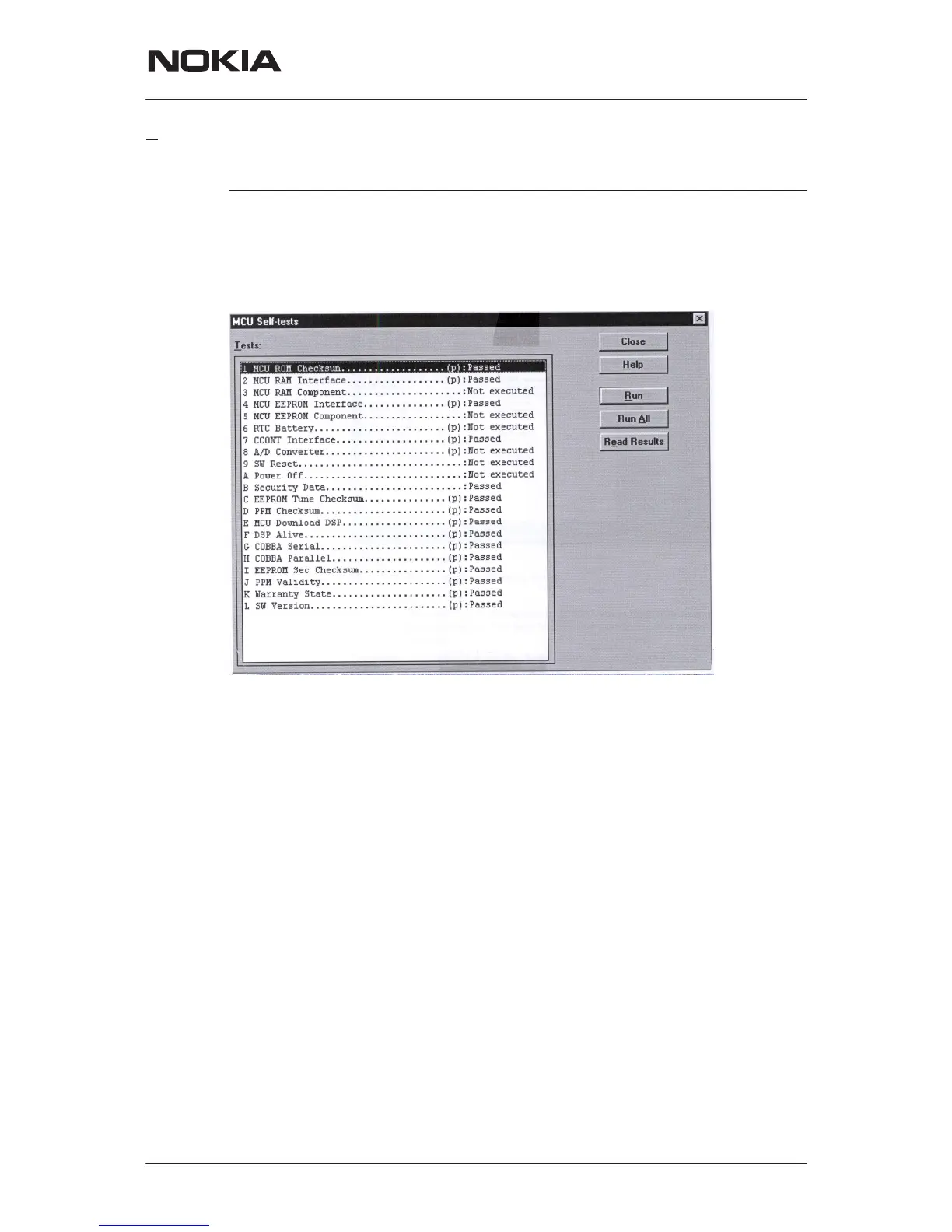

MCU Self–test dialog includes following items:
Tests list box (ALT+T):
The field ”(p)” in the screen example means that the test is also
run in power up. The field “/s)” means that this test is select-
able one.
Test states are updated according to results received from the phone.
Possible test states will be one of the next:
Passed
Failed
No response
Not executed
Not valid
RUNNING....
Note that power–off test have no values, because if test has been
passed, power has been turned off. If power–off test fails a special error
message window is shown. If no response is received to power off test
