Oki MB760 Service Manual

45641001TH Rev.1
6-1 /
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PC BOARDS/HDD
6.1 Removal and Installation of PC Boards/HDD
Refer to the Hardware Guide for the removal and installation procedures of the PC boards other
thantheSYSboard,HDD,andSRAMboard<forSYSboard>.
Notes:
WhenthePCboard/HDDisreplaced,refertotherespectiveNotesandCautionsof“Replacement
of PC boards and HDD” in

P.6-10“6.2Precautions,ProceduresandSettingsforReplacing
PC Boards and HDD”.
6.1.1 Right side cover

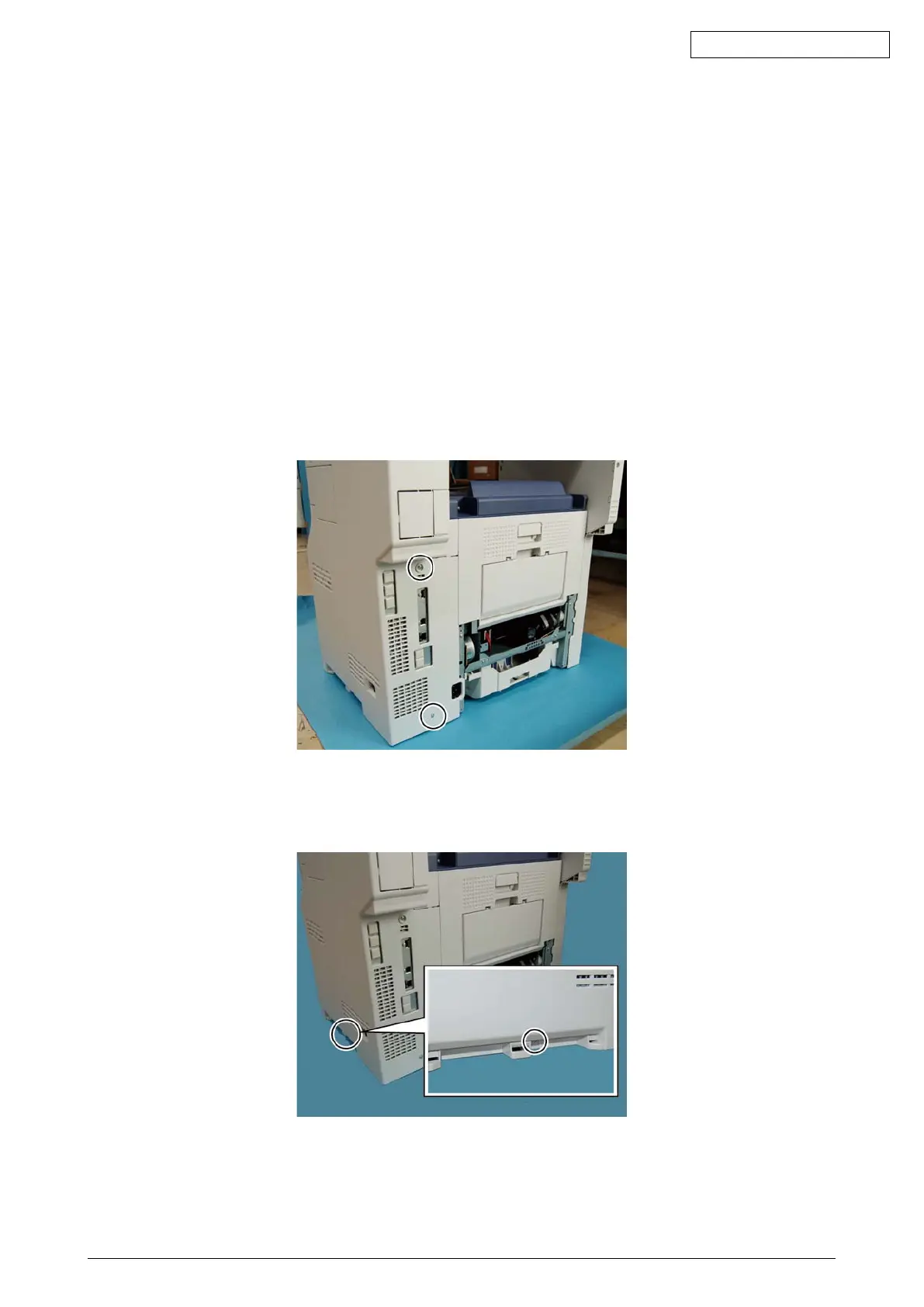

(1) Remove two screws.
Fig.6-3
(2) Remove the screw located at the bottom of the right side cover.
Fig.6-4
