45641001TH Rev.1

3-5 /

Oki Data CONFIDENTIAL

3.2 Service UI

3.2.1 Overview

The following self-diagnostic modes can be used with Service UI on the touch panel of the

control panel.

• 05ADJUSTMENTMODE

• 08SETTINGMODE

• FAXLISTPRINTMODE

3.2.2 Loginprocedure

[ 1 ] In the normal mode

(1) Turn the power ON.

(2) Press the [USER FUNCTIONS] button.

(3) Withthe[USERFUNCTIONS]menudisplayed,entertheServiceModepasswordprovided

during product training.

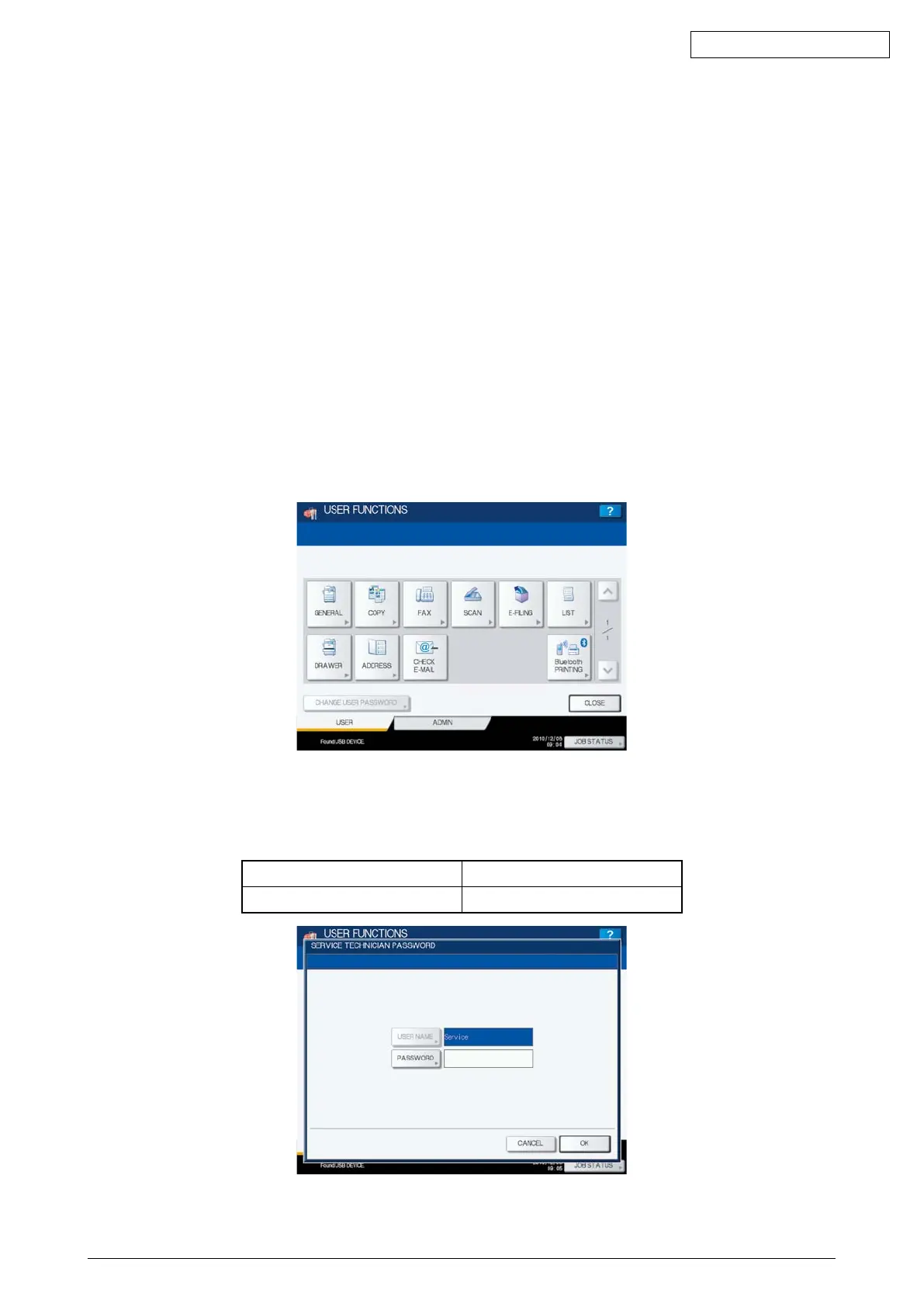

Fig. 3-2

(4) EntertheusernameandpasswordontheSERVICETECHNICIANPASSWORDscreen,

thenpress[OK].Theyaresetbydefaultasfollows:

User Name Service

Password None

Fig. 3-3

 TheSERVICEMODEscreenisdisplayed.
