Oki MB760 Service Manual

45641001TH Rev.1
6-6 /
Oki Data CONFIDENTIAL

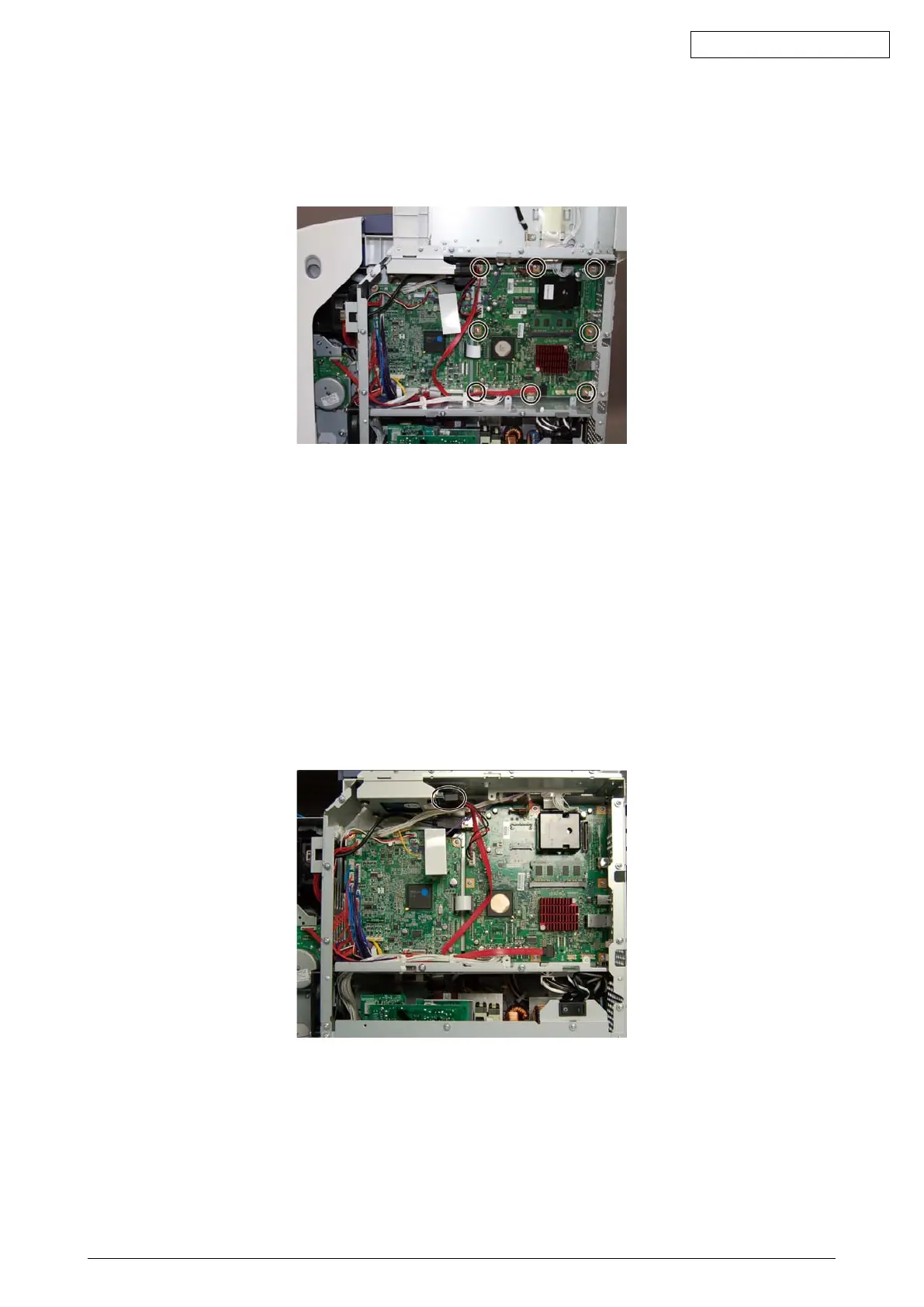

(6) Remove8screws,andthentakeofftheSYSboard.
Notes:
WhenremovingtheSYSboard,donotapplypressuretotheheatsink,memoryorSRAM
board by holding them too firmly.
Fig.6-14
6.1.4 Hard disk (HDD)
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Take off the SYS board cover.

P.6-4“6.1.2SYSBoardcover”
(3) Take off the fax unit if it’s installed.

P.6-9“6.1.6FAXunit”
(4) Unplug the connector connected to the hard disk.
Fig.6-15
