6.1.5 SRAM board <for SYS board>
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Take off the SYS board cover.

P.6-4“6.1.2SYSBoardcover”
(3) Take off the fax unit if it’s installed.

P.6-9“6.1.6FAXunit”
(4) Release 2 latches and take off the SRAM board for the SYS board[1] with the case.

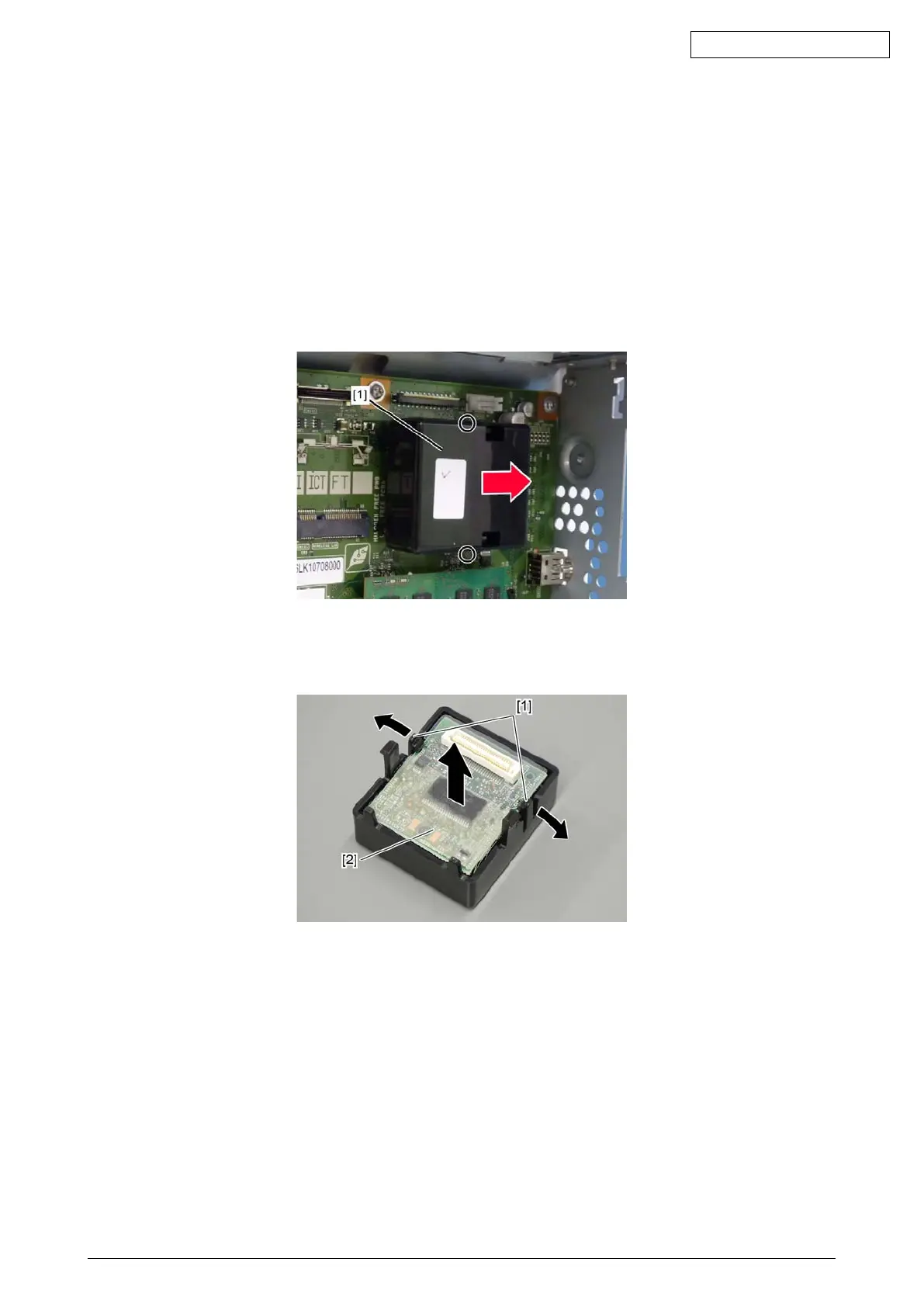

Fig.6-18
(5) Release 2 latches[1] and take off the SRAM board for SYS board[2] from the case.
Fig.6-19
