6.2.2 HDD fault diagnosis
ThiscodedisplaystheHDDoperationhistory,whichisrecordedintheHDD,onthecontrol
panel. HDD failure can be diagnosed or predicted with the information displayed.
1. Display
Thefollowingscreenisdisplayedwithsettingcode08-9065.Youcanalsorefertothesame
information by pressing the [ON/OFF] button while pressing [5] and [C] simultaneously and then
selecting“5.SMARTInfo”.

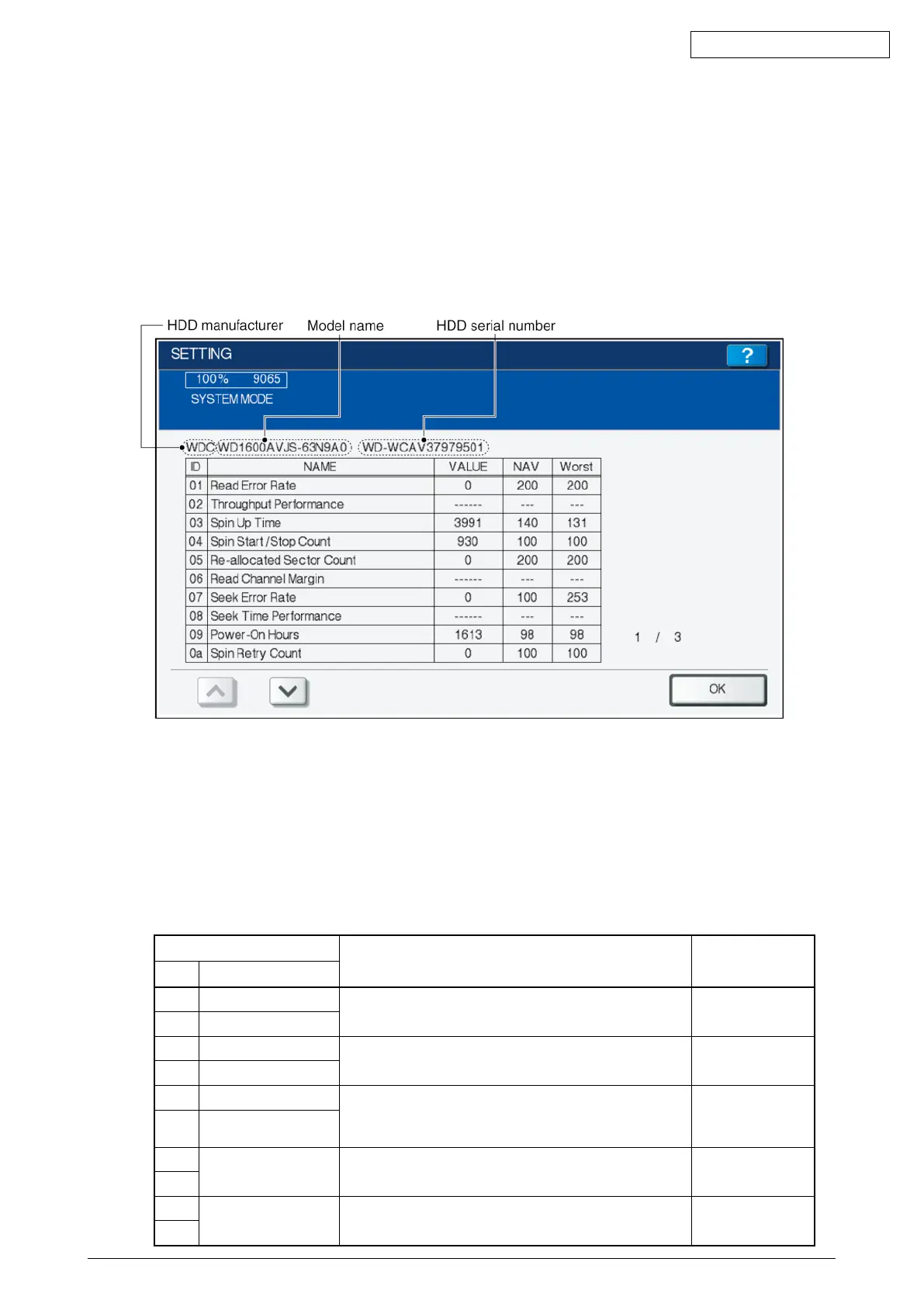

Fig. 9-1
- Items supported differ depending on the HDD manufacturer.
- “---”isdisplayedontheVALUE,NAVandWorstcolumnsifitemsarenotsupported.
2. Usage
ThecombinationofthevaluesofID=05andc5isusedtodiagnosewhetherornottheHDD
has a physical failure when HDD failure is suspected (service call F100 - F109 or F120 or F124
occurred).
Result
Description Diagnosis
ID VALUE
05 0 Lowpossibilityofphysicalfailure HDD replacement
isnotrequired.
c5 0
05 From 1 to 999 Defective sector has been reassigned and HDD is
recovered.
HDD replacement
isnotrequired.
c5 0
05 Any value High possibility of defective sector existence.
(There will be a possibility of physical failure depending
on the use of HDD.)
HDD replacement
isrequired.
c5 1 or more
05 Either one is at least
1000.
High possibility of physical failure HDD replacement
is recommended.
c5
05 All values are
displayedas“-------”.
Highpossibilityofphysicalfailure(AHDDconnector,
harness or SYS board may be one of the causes.)
HDD replacement
is recommended.
c5
