Oki MB760 Service Manual

45641001TH Rev.1
6-5 /
Oki Data CONFIDENTIAL
6.1.3 SYS board
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Take off the SYS board cover.

P.6-4“6.1.2SYSBoardcover”
(3) Take off the fax unit if it’s installed.

P.6-9“6.1.6FAXunit”
(4) UnplugalltheconnectorsandcableconnectedtotheSYSboard,andthentakeoutthe
connectors and cable from the SYS board case.

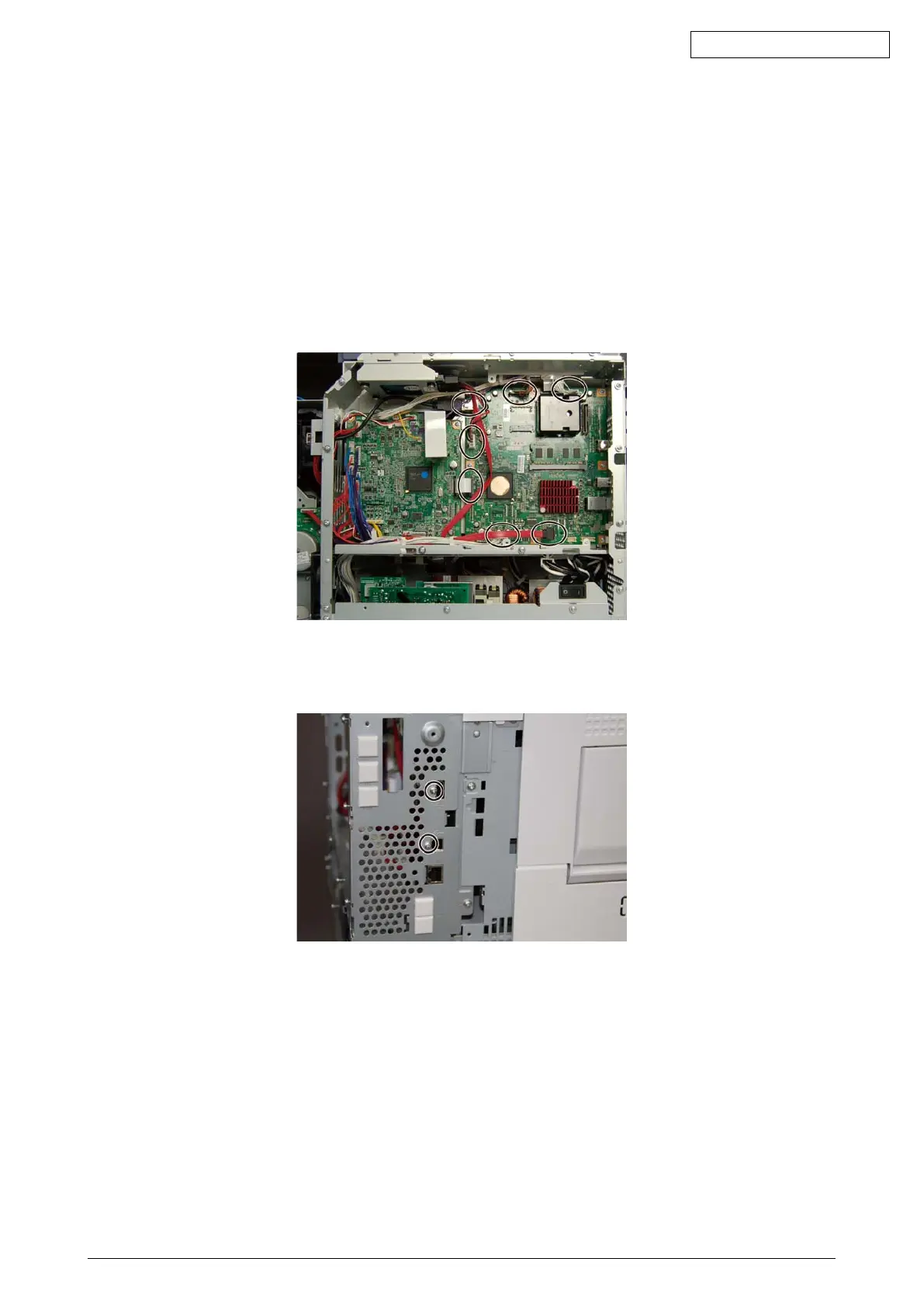

Fig.6-12
(5) Remove 2 screws.
Fig.6-13
