2 Models and External Dimensions
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-4 External and Mounting Dimensions
2
2-4-8 Reactor Dimensions

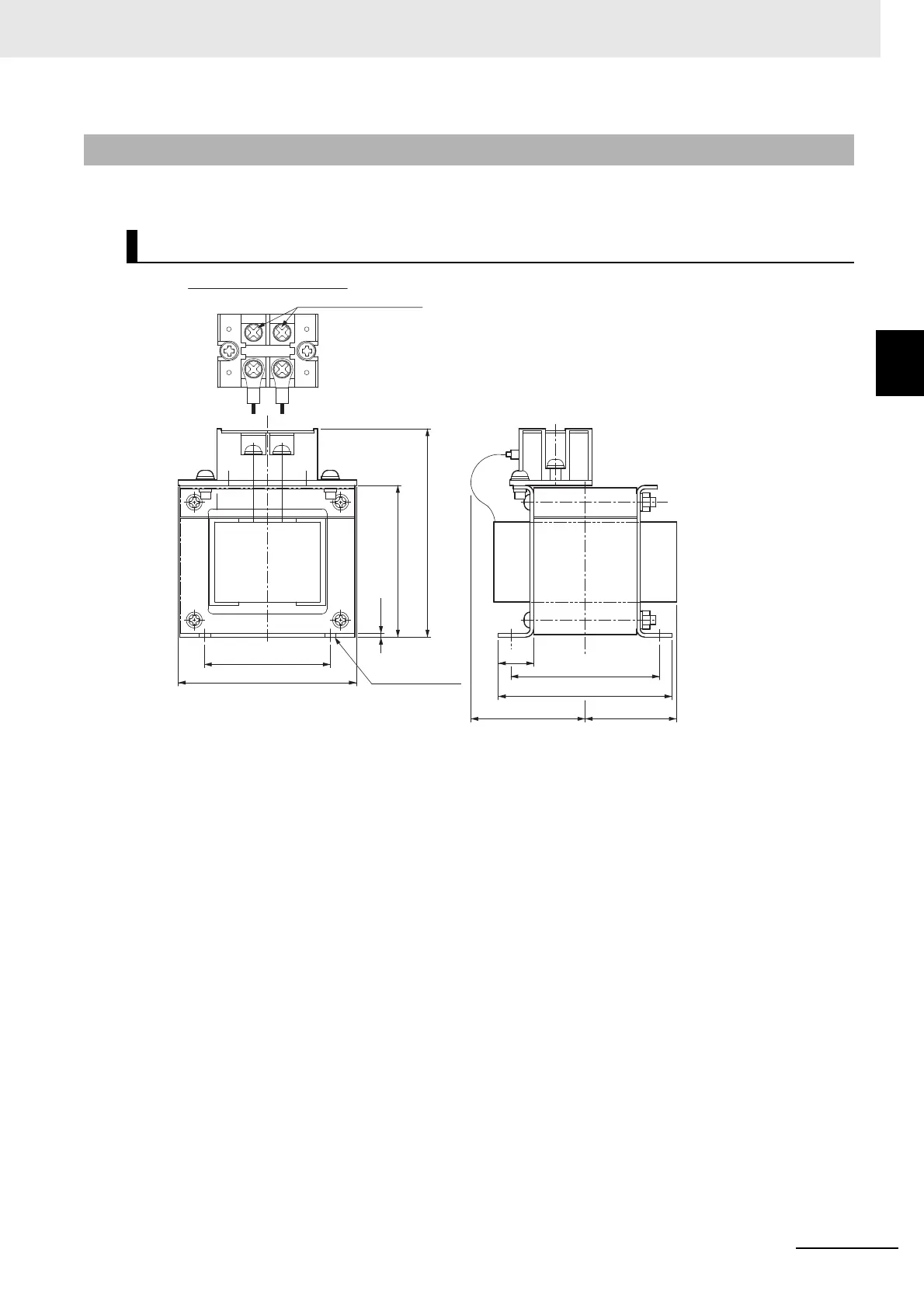

The following are the dimensions of Reactors.
2-4-8 Reactor Dimensions
R88A-PD2002
(1.6)
2-terminal M4 screw
78
68
55
76
67
(16)
Terminal block top view
UX
95 max.
50 max. 40 max.
4-mounting hole
for M4 screw
