4 Configuration and Wiring
4 - 46
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
R88A-FI1S1/-FI1S2
• Insert a screwdriver (tip width 3.5 × 0.5 mm) into a front slot.
• Insert the wire fully into the back of a wire hole.
• Pull out the screwdriver while you push the wire against the back.
• Pull the wire gently to check that it does not come out.
R88A-FI1S3
• Insert a screwdriver (tip width 3.5 × 0.5 mm) at an angle into a front slot.
• Insert the screwdriver deep while you hold it vertically as shown in the side view.
• Insert the wire fully into the back of a wire hole.
• Pull out the screwdriver while you push the wire against the back.
• Pull the wire gently to check that it does not come out.

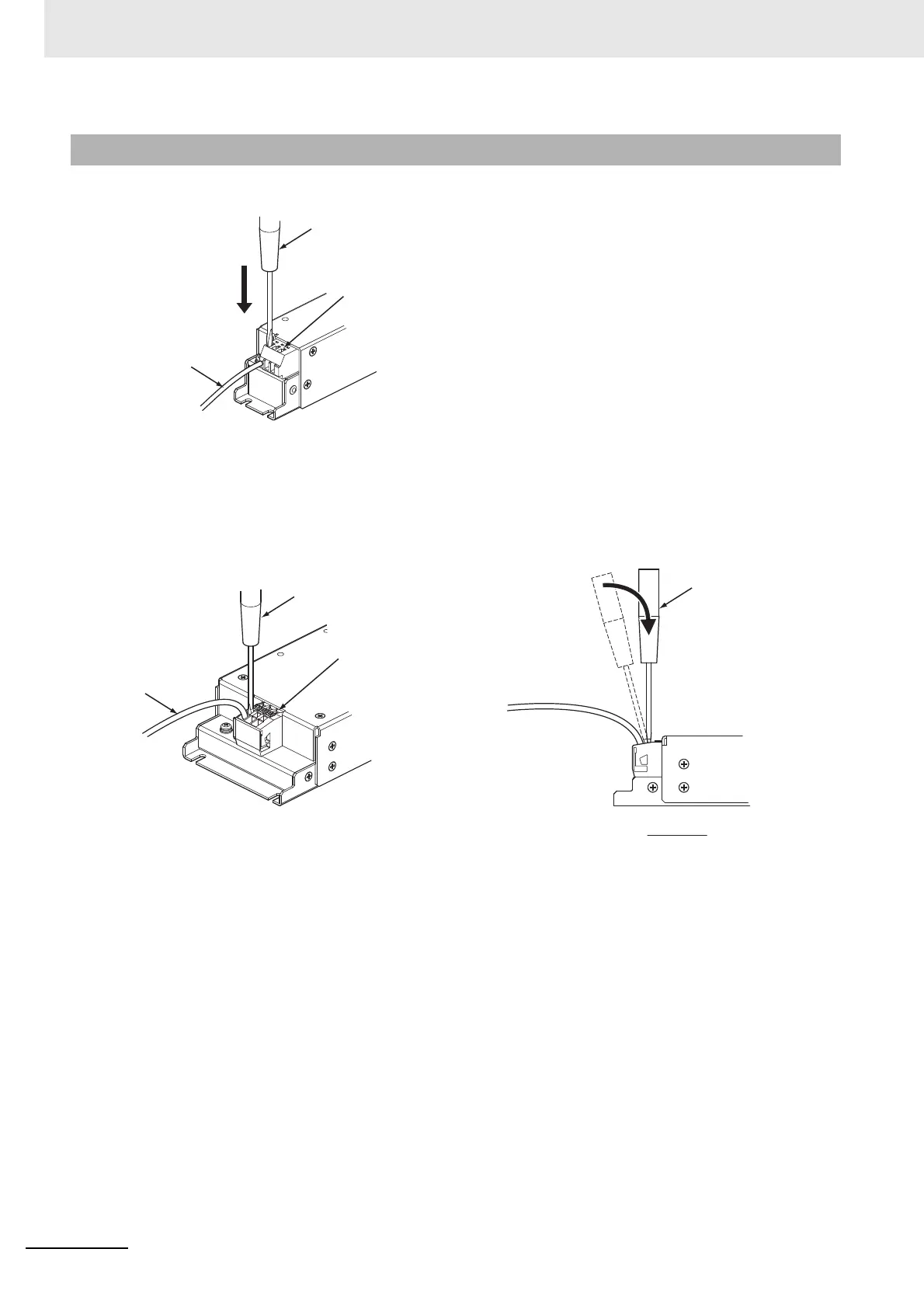

4-2-5 Terminal Block Wiring Procedure for Footprint-type Noise Filter
Wire
Front slot
Screwdriver
Screwdriver
Front slot
Wire
Side view
Screwdriver
To Next Page
