24

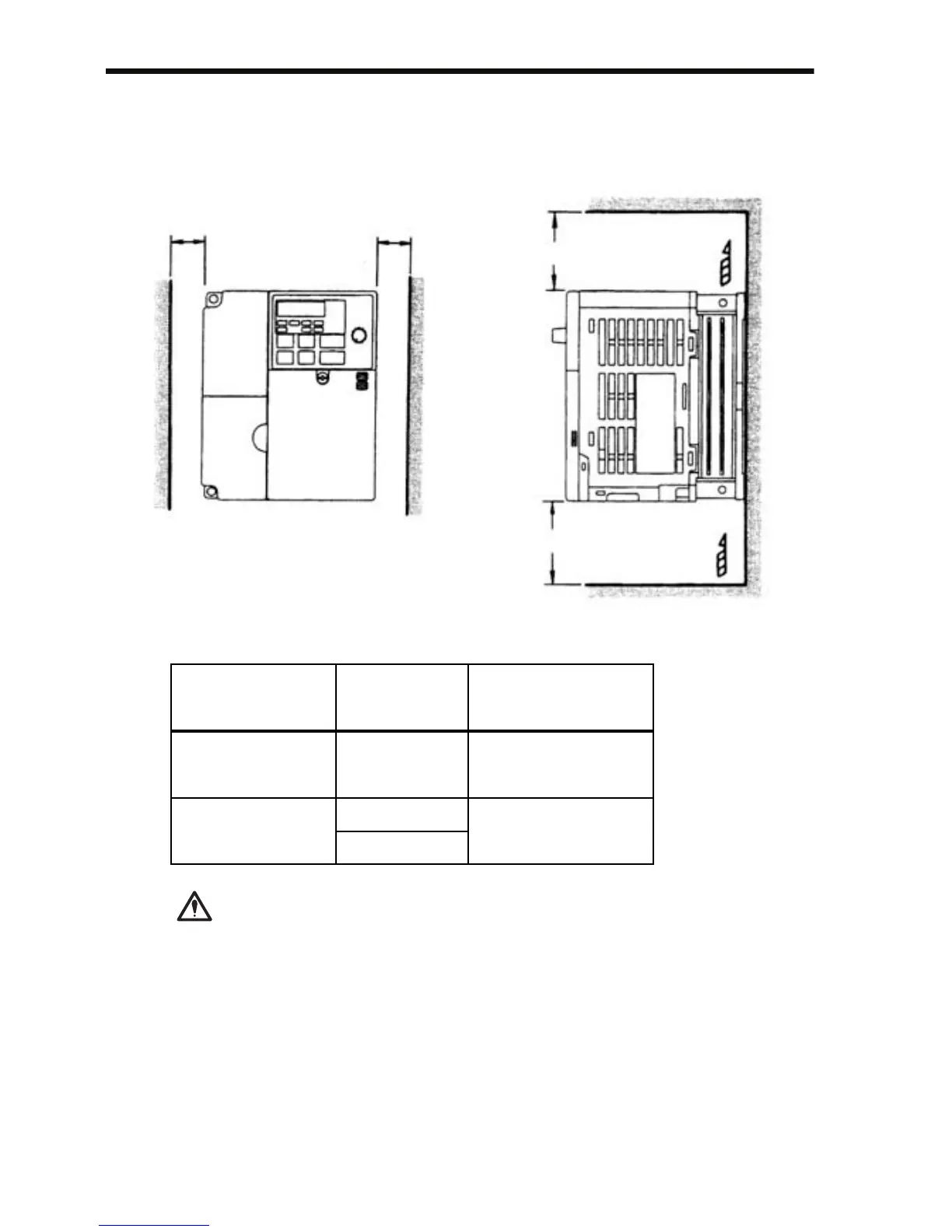

 Mounting Dimensions
To mount the V7AZ, the dimensions shown below are required.
• Lift the Inverter by the heatsinks. When moving the
Inverter, never lift it by the plastic case or the termi-
nal cover.
Otherwise, the main unit may fall and be damaged.
• The V7AZ generates heat. For effective cooling,
mount it vertically.
Air
Air
aa
100 mm (3.94 in.) or more
100 mm (3.94 in.) or more
Voltage Class
(V)
Max. Applicable
Motor Capacity
(kW)
Length a
200 V Single-phase
3-phase
400 V 3-phase
3.7 kW or less
30 mm (1.18 in.) min.
50 mm (1.97 in.) min.
200 V 3-phase
400 V 3-phase
5.5 kW
7.5 kW
CAUTION
