3 Mounting
27

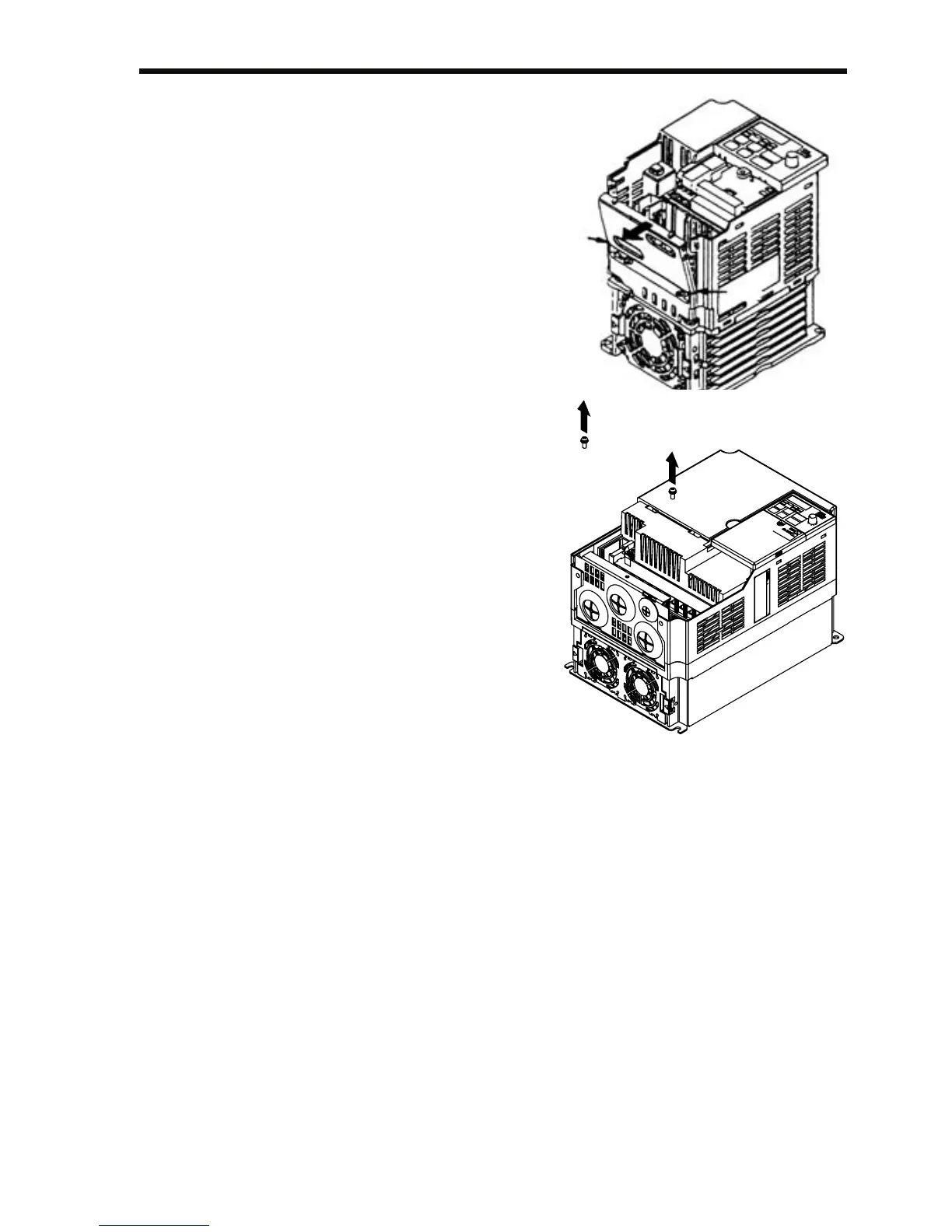

Removing the Bottom Cover
• 200 V class Inverters with 1.1 kW
and more and all 400 V class
Inverters:
After removing the front cover and
the terminal cover, tilt the bottom
cover in direction 1 with section A
as a supporting point.
• Inverters of 5.5 and 7.5 kW
After removing the terminal cover,
use a screwdriver to loosen the
mounting screw in direction 1.
Mounting the Bottom Cover
Mount the bottom cover by reversing
the order of the above procedure for
removal.
A
A
1
1
