In vector control mode, “---” will be displayed.
* 4. Applicable only for Inverters of 5.5 kW and 7.5 kW (200 V and 400 V
Classes).
* 5. Refer to the next page for data reception error.
* 6. Displayed in units of 0.1% when less than 100% and in units of 1% when
100% or more. The display range is from −999% to 999%.
* 7. Applicable for Inverters with software version VSP0105740(4.0kW or
less) and VSP015750(5.5kW and 7.5kW).

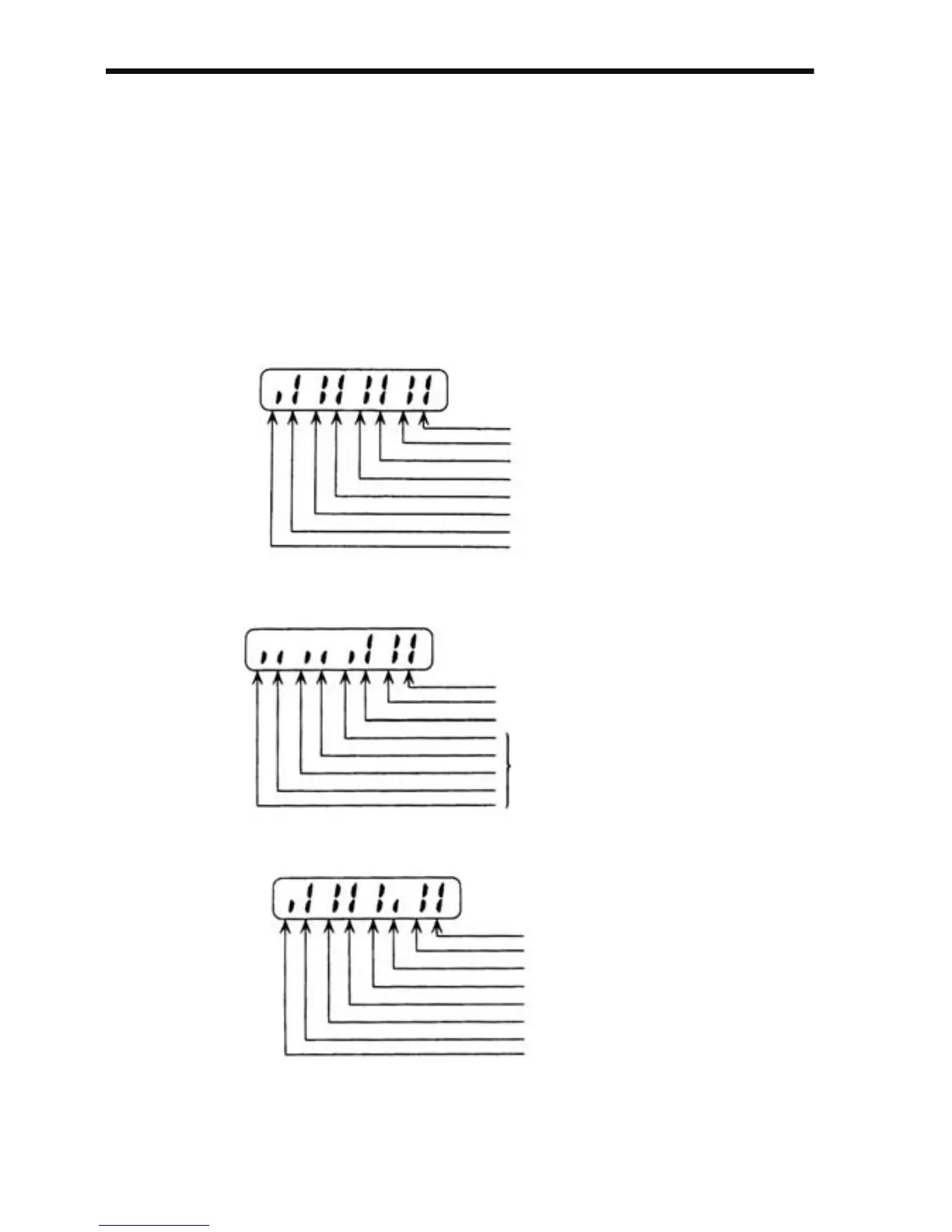

Input/Output Terminal Status
Data Reception Error Display
1: Terminal S1 is closed.
1: Terminal S2 is closed.
1: Terminal S3 is closed.
1: Terminal S4 is closed.
1: Terminal S5 is closed.
1: Terminal S6 is closed.
1: Terminal S7 is closed.
Not used
Input Terminal Status
1: Terminal MA-MC is closed.
1: Terminal P1-PC is closed.
1: Terminal P2-PC is closed.
Not used
Output Terminal Status
1: CRC error
1: Data length error
Not used
1: Parity error
1: Over run error
1: Framing error
1: Timeover
Not used
To Next Page
