6 Programming Features
55
Using V/f Control Mode
V/f control mode is preset at the factory.
Control Mode Selection (n002) = 0: V/f control mode (factory setting)
1: Vector control mode
Adjusting Torque According to Application
Adjust motor torque by using the V/f pattern and full-range automatic
torque boost settings.
V/f Pattern Setting
Set the V/f pattern in n011 to n017 as described below. Set each pattern
when using a special motor (e.g., high-speed motor) or when requiring
special torque adjustment of the machine.
Note: The values in the parentheses are for the 400 V Class of Inverters.
Constant
No.
Name Unit Setting Range Factory
Setting
n011
Max. Output Frequency
0.1 Hz 50.0 to 400.0 Hz 50.0 Hz
n012
Max. Voltage
0.1 V
0.1 to 255.0 V
(0.1 to 510.0 V)
200.0 V
(400.0 V)
n013
Max. Voltage Output Fre-
quency (Base Frequency)
0.1 Hz 0.2 to 400.0 Hz 50.0 Hz
n014
Mid. Output Frequency
0.1 Hz 0.1 to 399.9 Hz 1.3 Hz
n015
Mid. Output Frequency
Voltage
0.1 V
0.1 to 255.0 V
(0.1 to 510.0 V)
12.0 V
*
(24.0 V)
n016
Min. Output Frequency
0.1 Hz 0.1 to 10.0 Hz 1.3 Hz
n017
Min. Output Frequency
Voltage
0.1 V 0.1 to 50.0 V
(0.1 to 100.0 V)
12.0 V
*
(24.0 V)

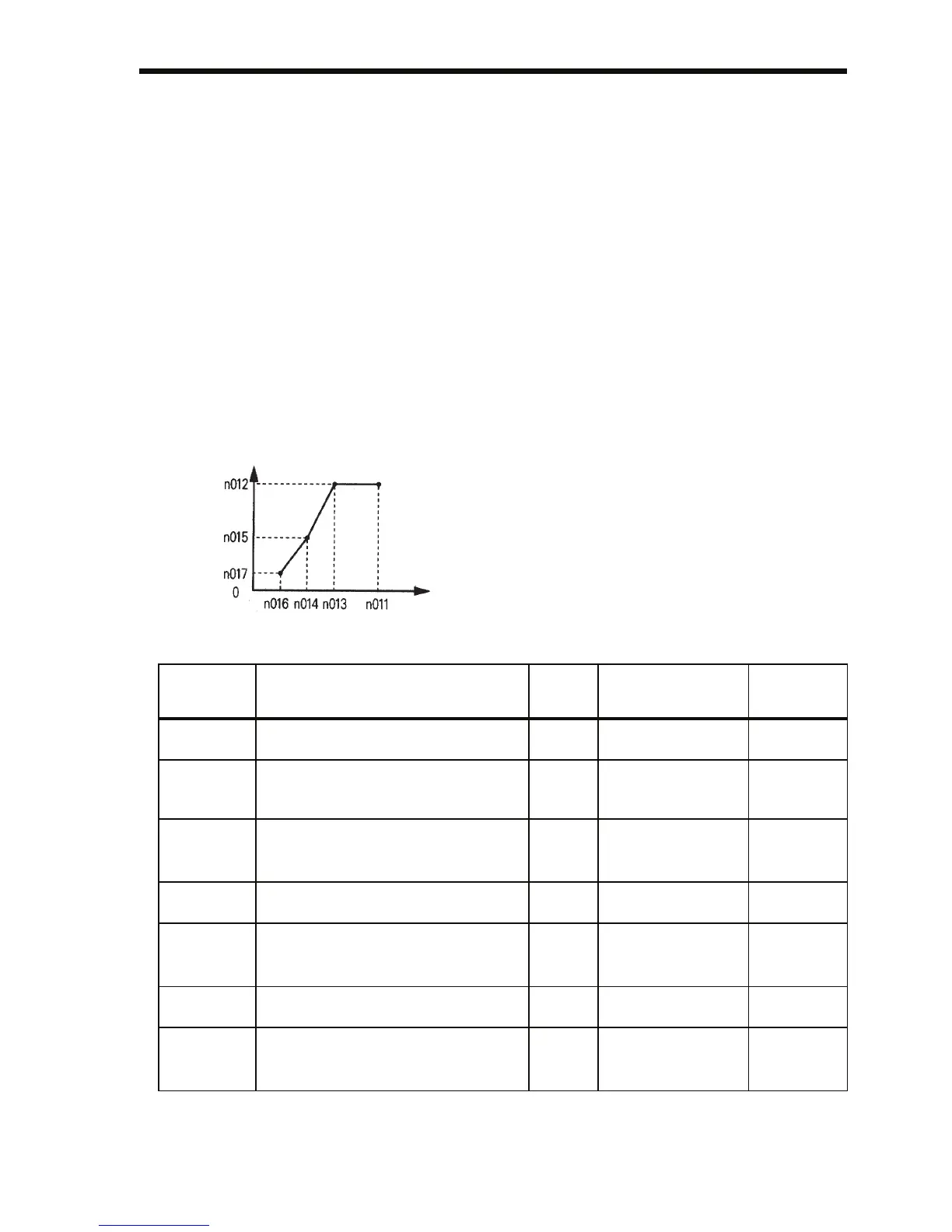

Be sure to satisfy the following
conditions for the settings of n011 to
n017.
n016 ≤ n014 < n013 ≤ n011
If n016 = n014, the setting of n015
will be disabled.
Note: n014 is also used for motor 2
settings. (n014 < n140, n147)
f
(Frequency)
V: (Voltage)
