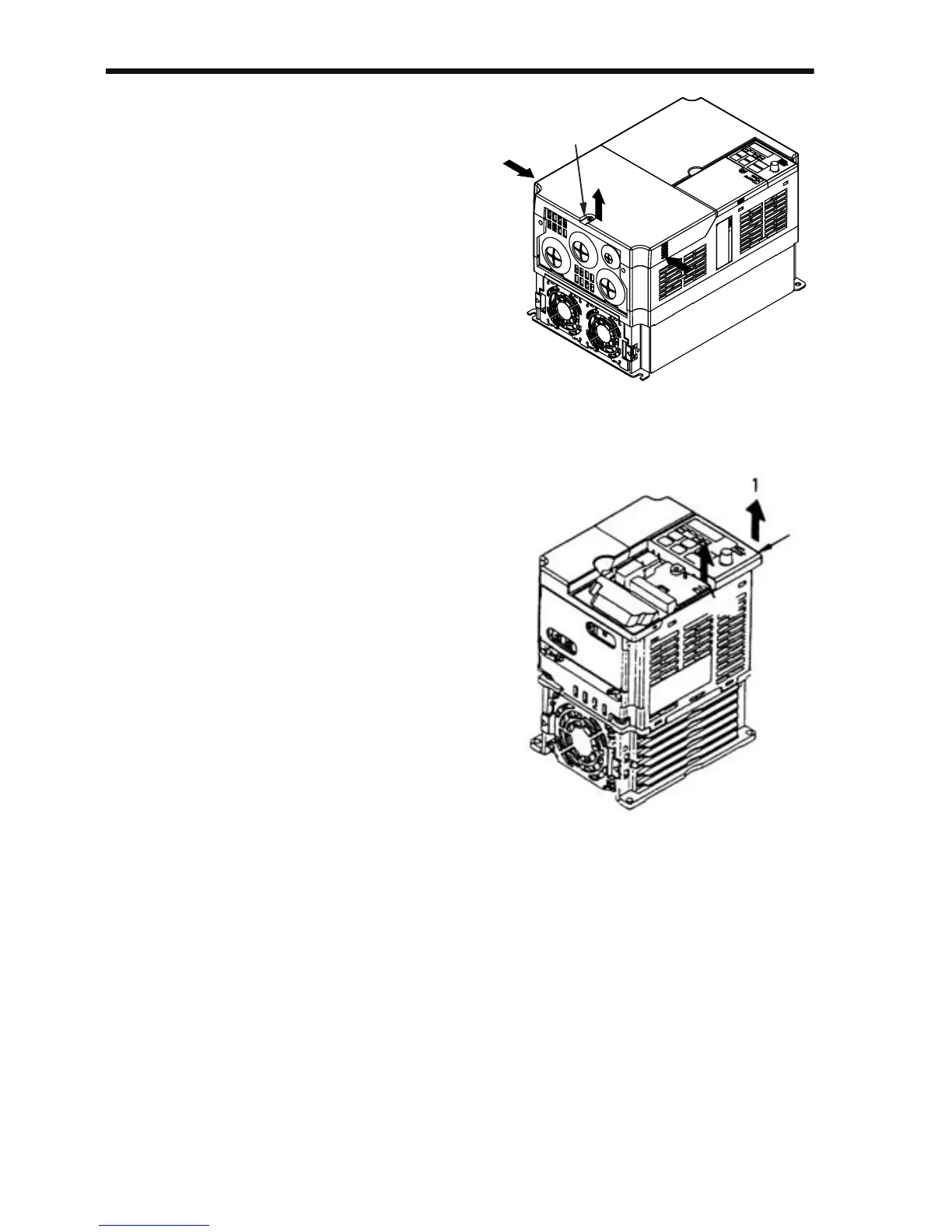

• Inverters of 5.5 and 7.5 kW:
Use a screwdriver to loosen
the screw (section B) on the
terminal cover surface. (To
prevent loss, this screw cannot
be removed.) Then press the
right and left sides in direction
1 and lift the terminal cover in
direction 2.
 Mounting the Terminal
Cover
Mount the terminal cover by
reversing the order of the above proce-
dure for removal.
 Removing the Digital Operator
After removing the front cover, (fol-
low the procedure on page 25) lift the
upper and lower sides (section C) of
the right side of the Digital Operator
in direction 1.
 Mounting the Digital Operator
Mount the Digital Operator by revers-
ing the order of the above procedure
for removal.
1
1
2
B
C
C
