Through-beam Sensor Heads: FUN Mode Functions Section 3-8
87
3-8-3 Number of Samples to Average
The number of samples to average is the number of data points used to
average data measured by the Sensor.
Increase the number of samples to average to decrease variations in order
to achieve fine positioning and judgement. If the number of samples is
increased, however, the response time of the judgement outputs and linear
output will be increased.

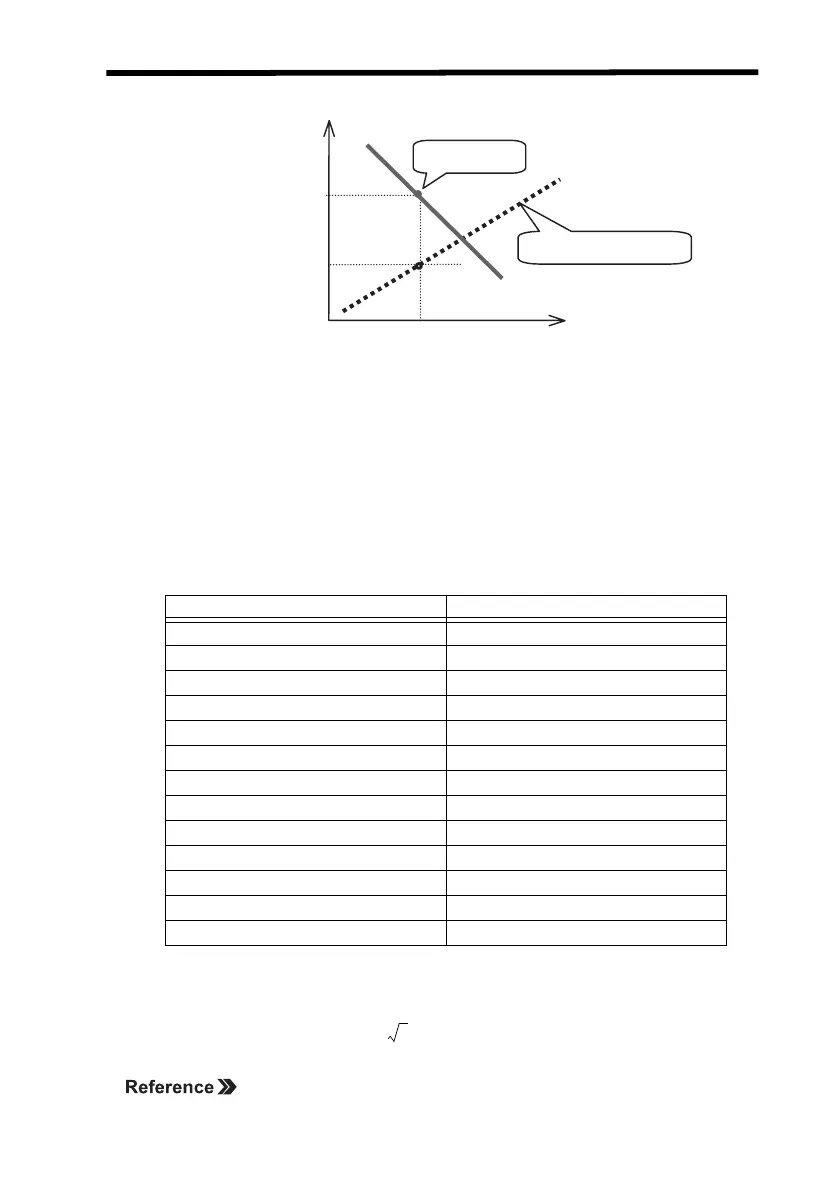

The following table shows the relationship between the number of samples
to average and the response time.
Note: When the number of samples to average is increased n times, the resolu-
tion is generally improved times.
Refer to 4-5-12 Other Special FUN Mode Settings.
Display value
(mm)
50.0
5.0
5.0
Display value
Actual value measured
Actual incident beam width (mm)
Number of samples to average Response time (ms)
10.3
20.5
40.8
81.5
16 2.5
32 5
64 10
128 20
256 40
512 75
1,024 150
2,048 300
4,096 600
Number of Samples to Average and Response Time
