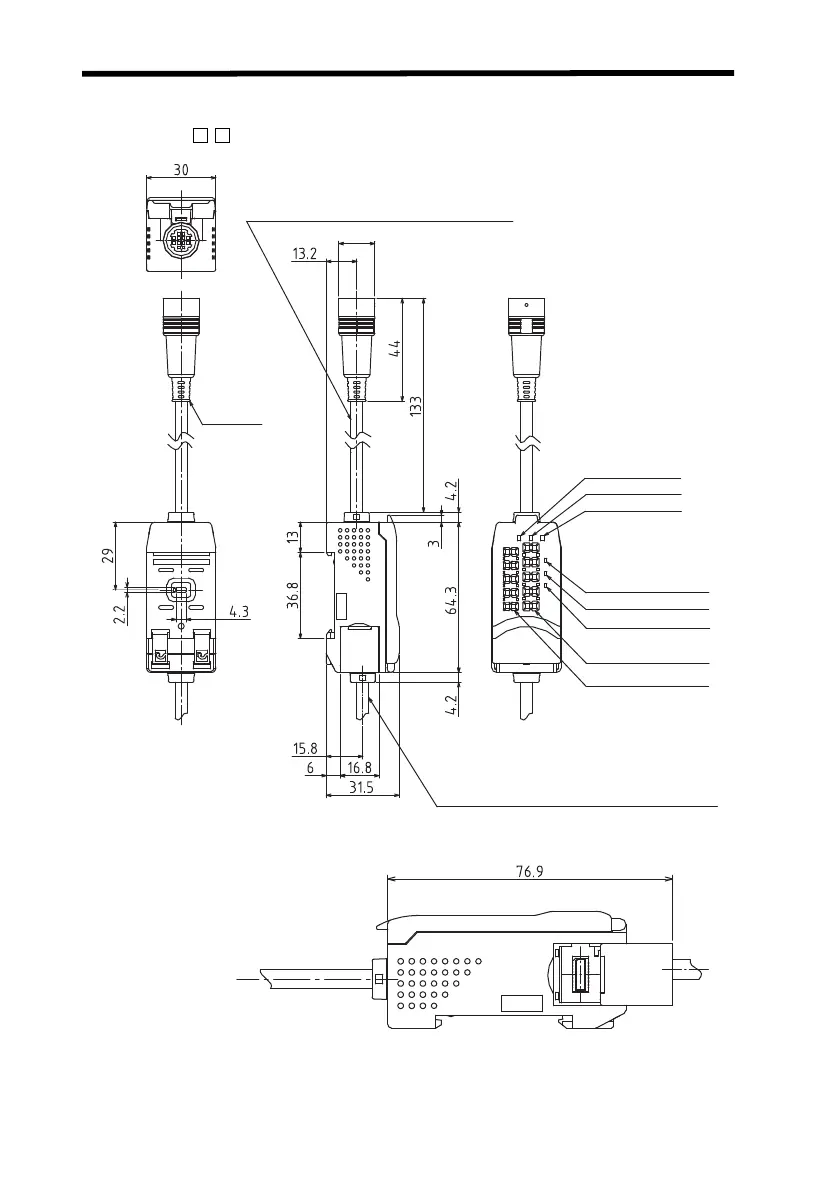

Dimensions
Section 6-2
164
6-2-3
Amplifier Units
ZX-LD
A
Vinyl-insulated round cable
, 5.1 dia., 9 conductors
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.7 mm)
Standard length:
0.1 m
Round vinyl insulated cable
5.2 mm dia.
(19/0.08 mm dia.) 10-core
Note:
The analog output line (black) has shielding
and the diameter of the insulator is 2.2 mm
standard length 2 m
Connector
LOW indicator
P
ASS indicator
HIGH indicator
Laser ON indicator
Zero reset indicator
Enable indicator
Main display
Sub-display
15.5 dia.
Connector Cover Dimensions when Open
183
185
Table of Contents
