FUN (Function) Mode Section 4-5
136
4-5-10 Setting the Monitor Focus

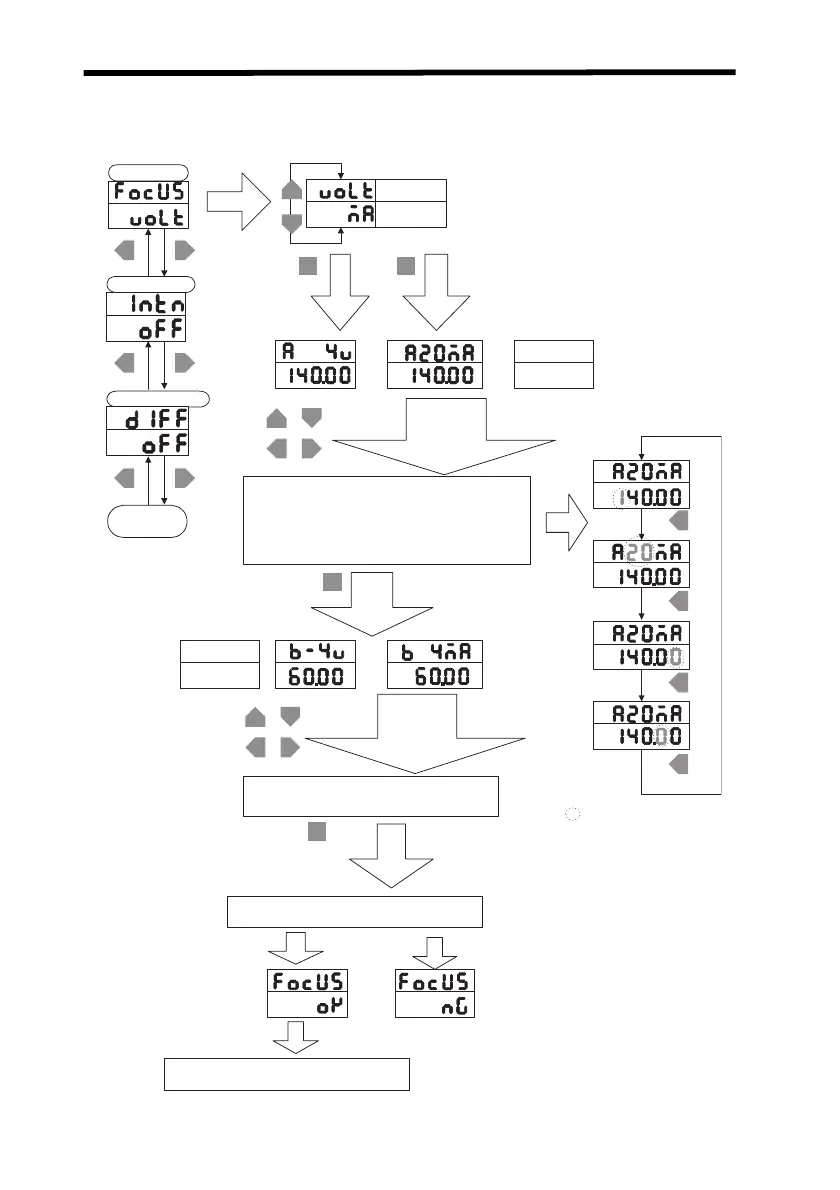

The monitor focus setting procedure is shown in the following figure:
Monitor focus
Differentiation function
Go to the
next mode
Voltage
output
Current
output
First point
distance value
First point
output value
Numeric value setting procedure is the same as
that of other FUN mode settings except for the
value shift that requires setting both output and
distance values as shown on the right:
Press the ENT Key to
migrate to the second
point monitor focus
setting.
Numeric value setting procedure is the
same as that of the first point.
OK Fail
Perform the monitor focus operation.
Second point
distance value
Second point
output value
Voltage output
selected using the
ENT Key
Intensity function
Start the first
point focus value
setting using the
UP, DOWN,
LEFT and RIGHT
Keys
Current output
selected using
the ENT Key
Start the second
point focus value
setting by using
the UP, DOWN,
LEFT and RIGHT
Keys.
Press the ENT Key
to complete the
monitor focus
setting.
Migrate to the intensity function
selection mode.
Circled characters are
the (flashing) digits to
be set.
