Dimensions Section 6-2
156

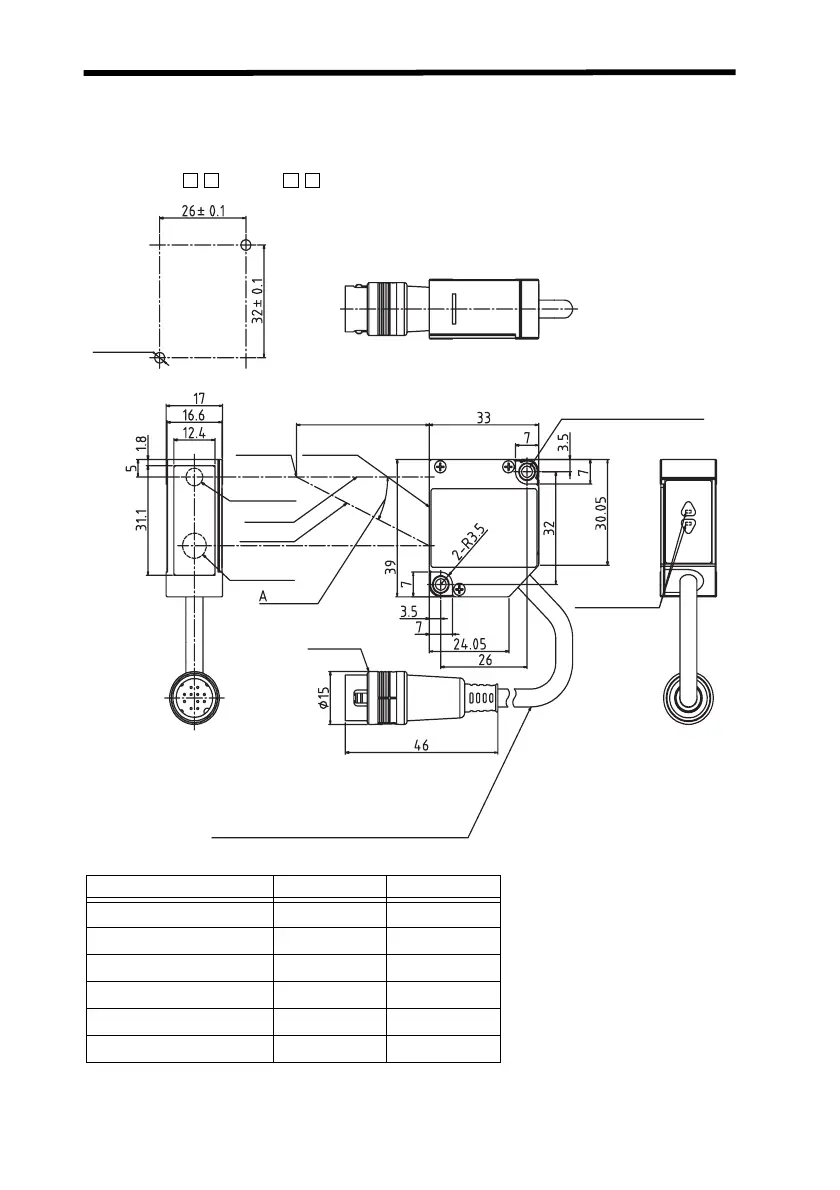

6-2 Dimensions
6-2-1 Reflective Sensor Heads
ZX-LD /ZX-LD L
Note:
Model L (mm) A (°)
ZX-LD40 40 23
ZX-LD100 100 11
ZX-LD300 300 3.8
ZX-LD40L 40 23
ZX-LD100L 100 11
ZX-LD300L 300 3.8
Mounting Holes
L (See note.)
Two, 3.2-dia. mounting holes
Measurement
point
Reference surface
Lens (5 dia.)
Lens (8 dia.)
Emitter axis
Receiver axis
(See note.)
Range indicators
Connector
Vinyl-insulated round cable, 5.1 dia., 9 conductors
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.7 mm)
Standard length: 0.5 m
Two,
M3 holes
(Unit: mm)
