Oracle Database Appliance X3-2/X4-2 Status Indicators
Chapter1 • Overview of System Status Indicators and LEDs 35
Callout Indicator/LED: Color State Meaning
■ On – Amber for 100Base-T link; green for 1000/10GBBase-T
link.
■ Off – No link.
■ Blinking – No function.
Oracle Database Appliance X3-2/X4-2 Storage
Shelf Status Indicators
Storage shelves are supported with Oracle Database Appliance X3-2/X4-2. They include
controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/
O modules.
Storage Shelf Front Panel Status Indicators

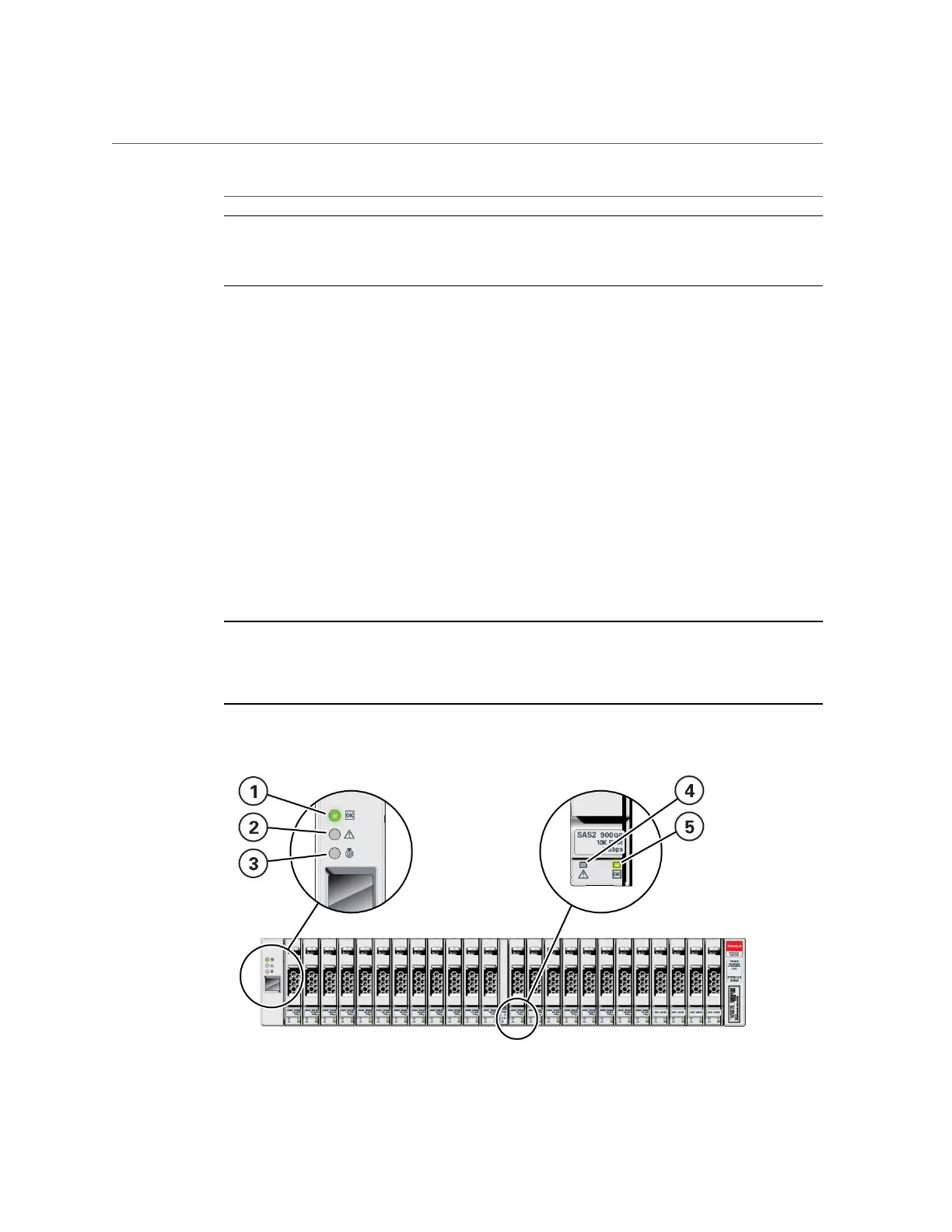

The following figure shows the controls and indicators on the Oracle Database Appliance X3-2/
X4-2 storage shelf (DE2-24P) front panel and drives.
Note - The 2 or 3 character LED enclosure ID display panel on the front of the storage shelf is
not used with the Oracle Database Appliance product. Any numbers or letters displayed in this
panel other than zeros could indicate a fault with either the panel, its cabling (neither of which
are customer replaceable), or some other storage shelf component.
