21
English

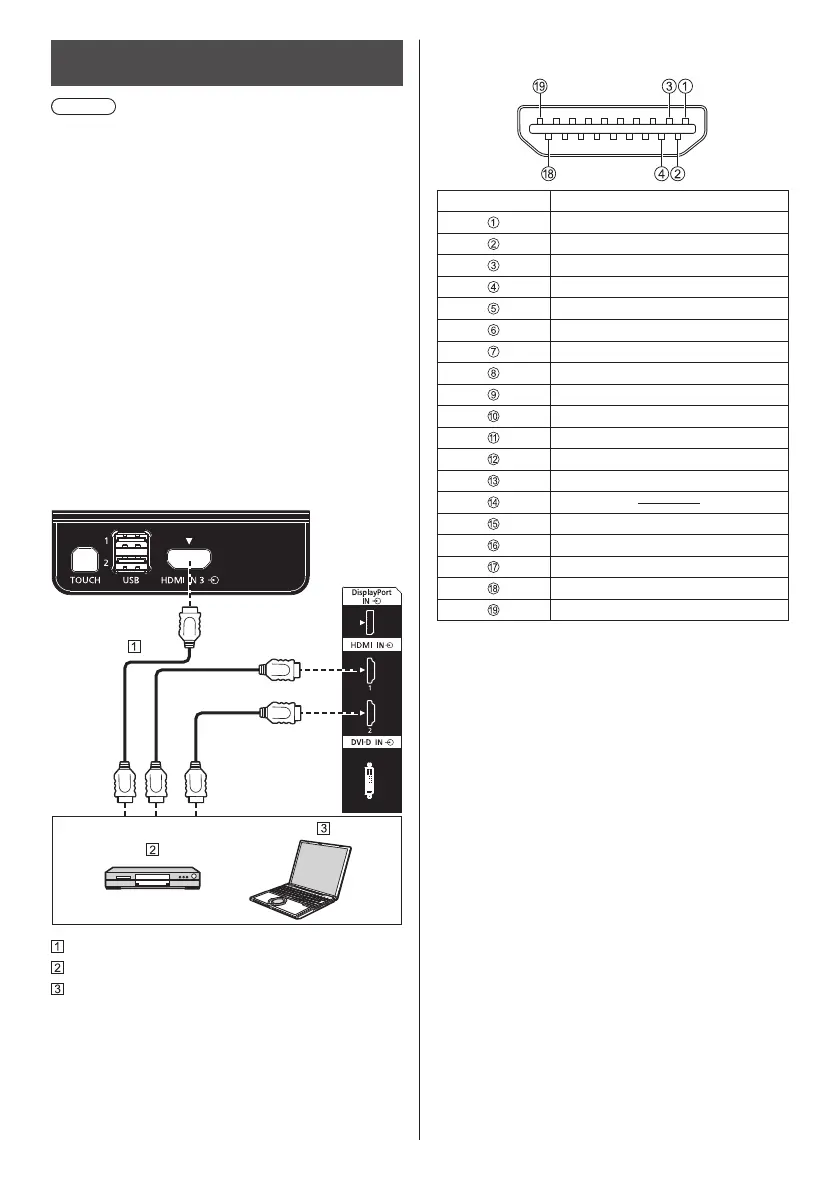

HDMI IN 1, HDMI IN 2 and HDMI IN 3
terminals connection
Note
●
Video equipment and HDMI cable shown are not
supplied with this unit.
●
Connect the equipment complying with the HDMI
standard.
●
Some HDMI equipment may not be able to display
picture.
●
This Display does not support VIERA LINK.
●
For audio, it is also possible to use the AUDIO IN
1 / AUDIO IN 2 terminal. (For [Audio input select]
function, see page 91.)
●
Use an HDMI High Speed cable complying with the
HDMI standards.
Note when inputting 4K video signals exceeding
the transmission speed supported by an HDMI High
Speed cable, use an HDMI cable supporting 18 Gbps
high-speed transmission such as the one certified as
a Premium HDMI cable.
When inputting video signals exceeding the
transmission speed supported by the HDMI cable you
are using, malfunction may occur such as interrupted
pictures and no display on the screen.
HDMI cable (commercially available)
DVD Player
PC
Pin assignments and signal names for HDMI
Terminal
Pin No. Signal name
T.M.D.S Data2 +
T.M.D.S Data2 Shield
T.M.D.S Data2 -
T.M.D.S Data1 +
T.M.D.S Data1 Shield
T.M.D.S Data1 -
T.M.D.S Data0 +
T.M.D.S Data0 Shield
T.M.D.S Data0 -
T.M.D.S Clock +
T.M.D.S Clock Shield
T.M.D.S Clock -
CEC
SCL
SDA
DDC/CEC Ground
+5V DC
Hot Plug Detect
