22
English

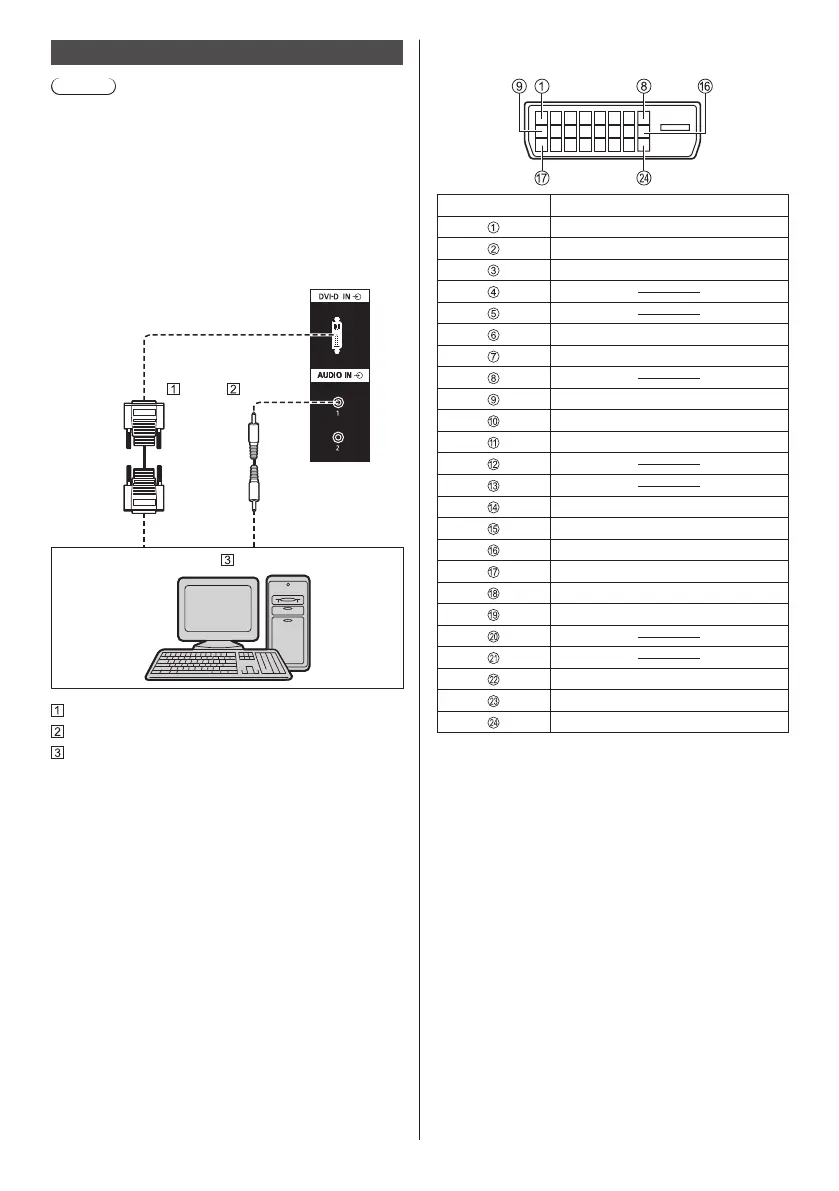

DVI-D IN terminal connection
Note
●
Video equipment and cables shown are not supplied
with this unit.
●
DVI-D IN terminal is for Single Link only.
●
For audio, the AUDIO IN 1 / AUDIO IN 2 terminal can
be used. (For [Audio input select] function, see page
91.)
●
Use the DVI-D cable complying with the DVI
standard. (Depending on the cable length or its
quality, noise may occur on images, or the image
quality may deteriorate.)
DVI-D cable (within 5 m) (commercially available)
Stereo mini plug (M3) cable (commercially available)
PC with DVI-D out
Pin assignments and signal names for DVI-D Input/
Output
Pin No. Signal Name
T.M.D.S. data 2 -
T.M.D.S. data 2 +
T.M.D.S. data 2 shield
DDC clock
DDC data
T.M.D.S. data 1 -
T.M.D.S. data 1 +
T.M.D.S. data 1 shield
+5 V DC
GND (Ground)
Hot plug detect
T.M.D.S. data 0 -
T.M.D.S. data 0 +
T.M.D.S. data 0 shield
T.M.D.S. clock shield
T.M.D.S. clock +
T.M.D.S. clock -
