USER MANUAL
Peplink Balance Series
6.3 Peplink Balance 210

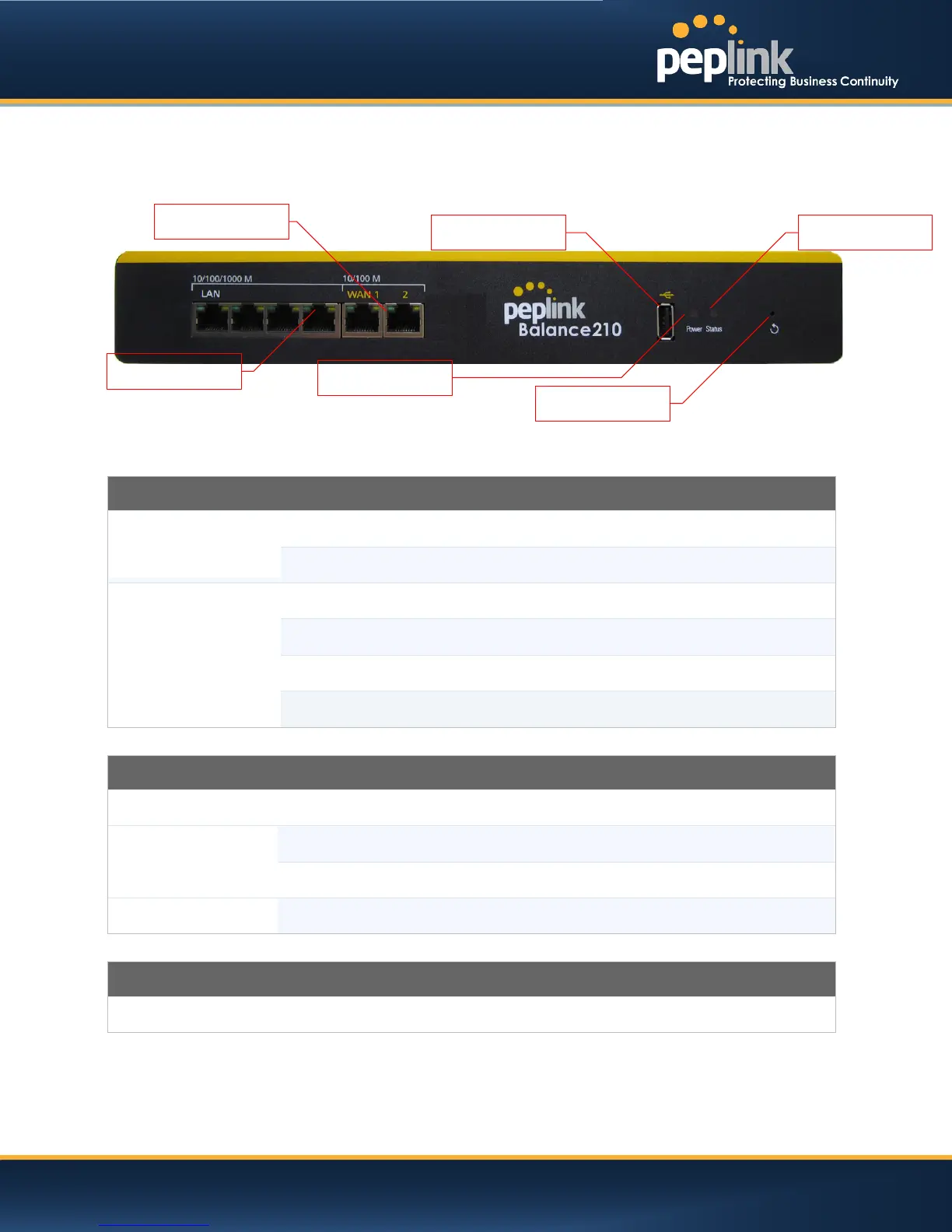

6.3.1 Front Panel Appearance
6.3.2 LED Indicators
The statuses indicated by the Front Panel LEDs are as follows:
Power and Status Indicators
Power
OFF – Power off
Green – Power on
Status
OFF – Upgrading firmware
Red – Booting up or busy
Blinking red– Boot up error
Green – Ready
LAN and WAN Ports
Green LED
ON – 10 / 100 / 1000 Mbps
Orange LED
Blinking – Data is transferring
OFF – No data is being transferred or port is not connected
Port Type
Auto MDI/MDI-X ports
USB Port
USB Ports
For connecting a 4G/3G USB modem.
LAN Ports
Power LED
Reset Button
USB
WAN Ports
Status LED
