Peplink Balance Series
6.8 Peplink Balance 710

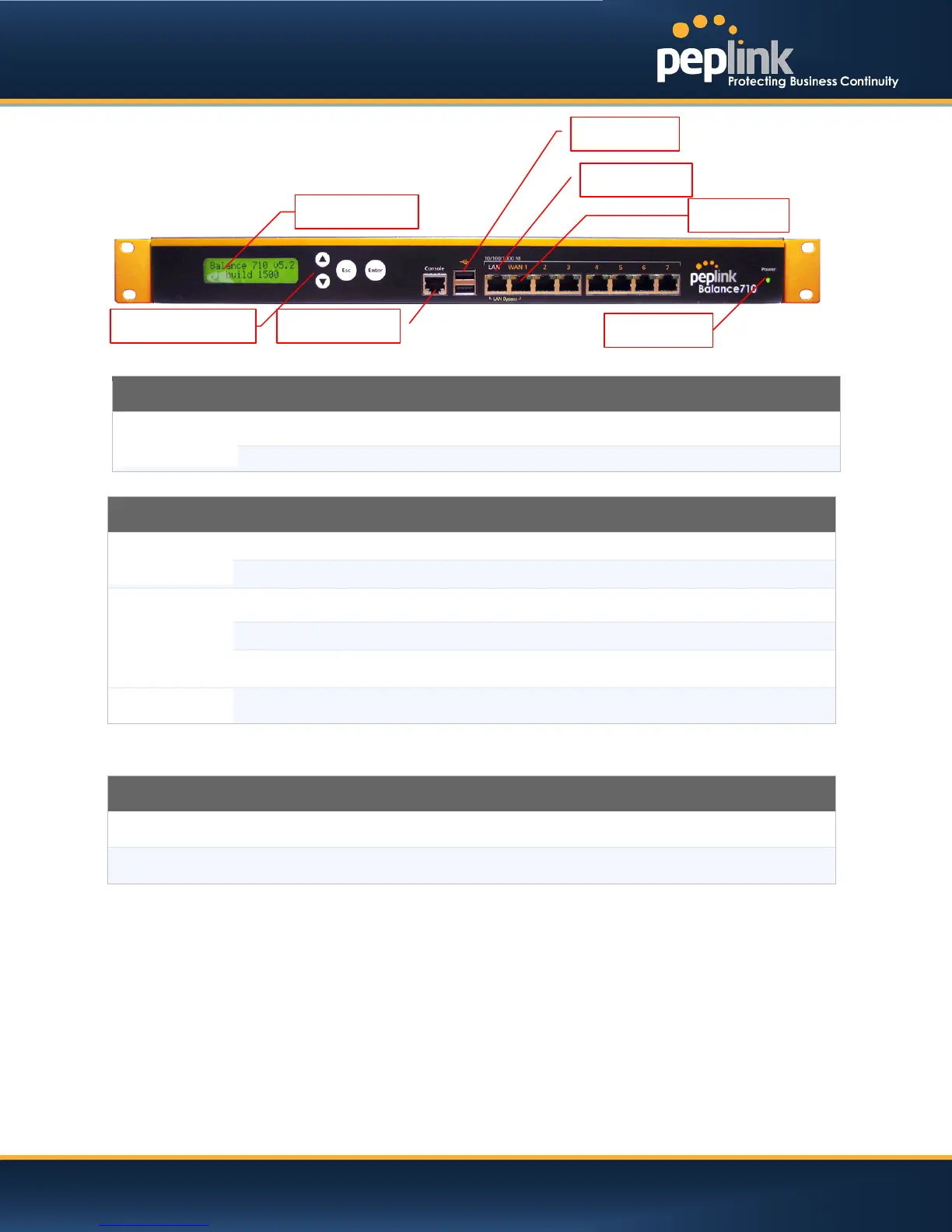

6.8.1 Front Panel Appearance
Status indicated in the Front Panel is as follows:
LAN Port, WAN 1 – 7Ports
Green LED
ON – 1000 Mbps
OFF – 100/10 Mbps
Orange LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Port Type
Auto MDI/MDI-X ports
LED Indicator
Power LED
OFF – Power off
GREEN – Power on
Console & USB Ports
Console Port
Reserved for engineering use
USB Ports
For connecting a 4G/3G USB modem.
LCD Display
Console Port
LCD Controls
WAN Port
LAN Ports
Power LED
USB Ports
http://www.peplink.com -32 / 207 - Copyright © 2013 Peplink
