106
5 Attach the wall side hardware to the wall.
Install the wall side hardware (four locations) symmetri-
cally on the left and right side (one at each location
from the center of the
). Wall strength and ma-
terial determines the type of screws and bolts (sold
separately) needed for this installation.
Note
Check the strength of the wall and beams before in-
stalling the display.
Tilt Mount Unit: PDK-5011

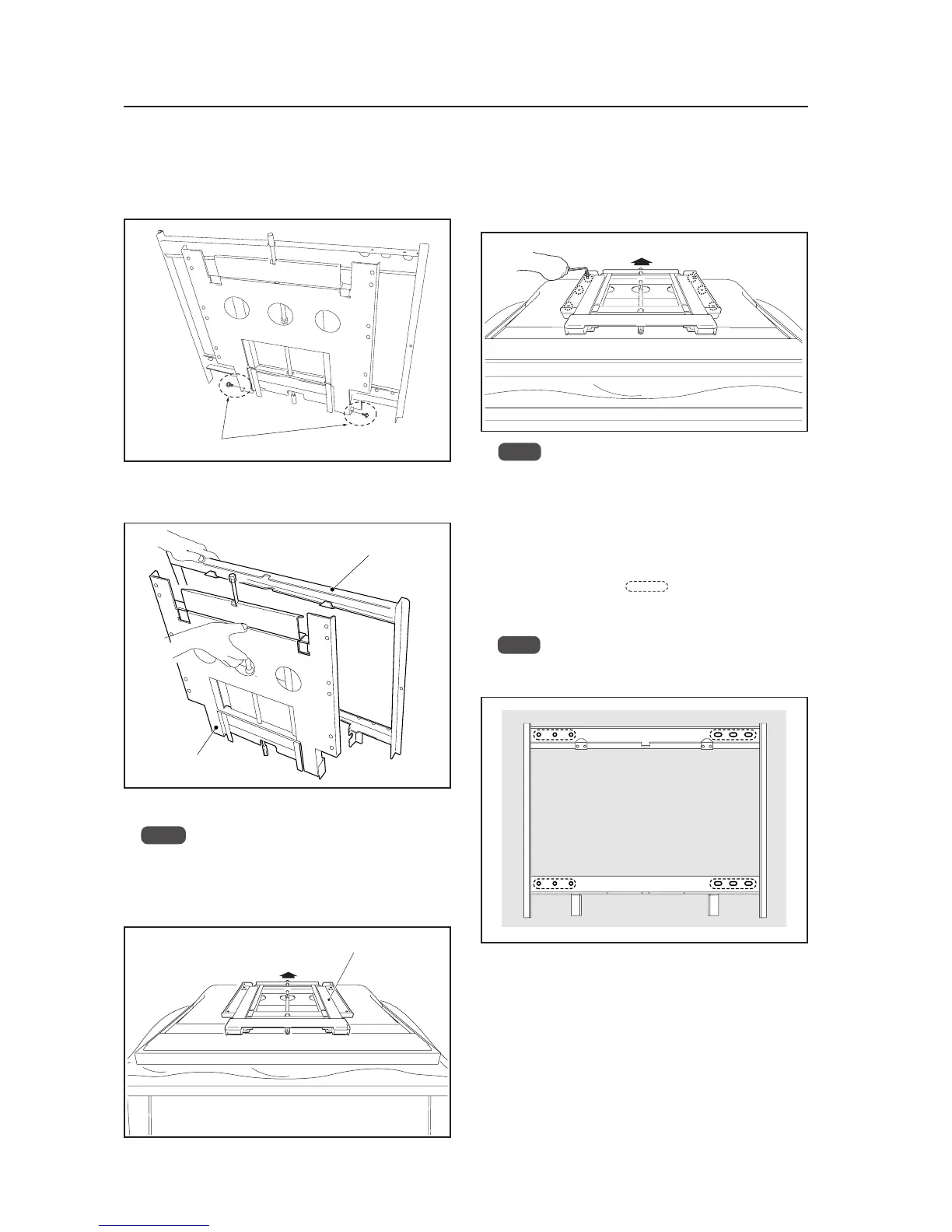

4.6.3 Assembling the mounting hardware and mounting the Plasma Display
Special screws (M6)
2 Remove the hardware on the wall side half and the
hardware on the PDP side half.
3 Attach the PDP side hardware to the Plasma Display.
Note
• Place a sheet or protective cover to protect the
display from scratches or damage.
• Be sure to attach it on top of a flat table or similar
surface.
4 Fix the Plasma Display to the PDP side hardware with
M8 bolts (six locations).
Use the holes marked with the red triangle "%".
Wall side hardware
PDP side hardware
PDP side hardware
Top side of Plasma Display
1 Remove the special screws (two locations) from the
bottom of the wall mounting unit.
Top side of Plasma Display
Note
Be sure to install speakers at this stage.
For the installation method, refer to the speaker
instruction manual.
[507CMX : 427CMX]
To Next Page
