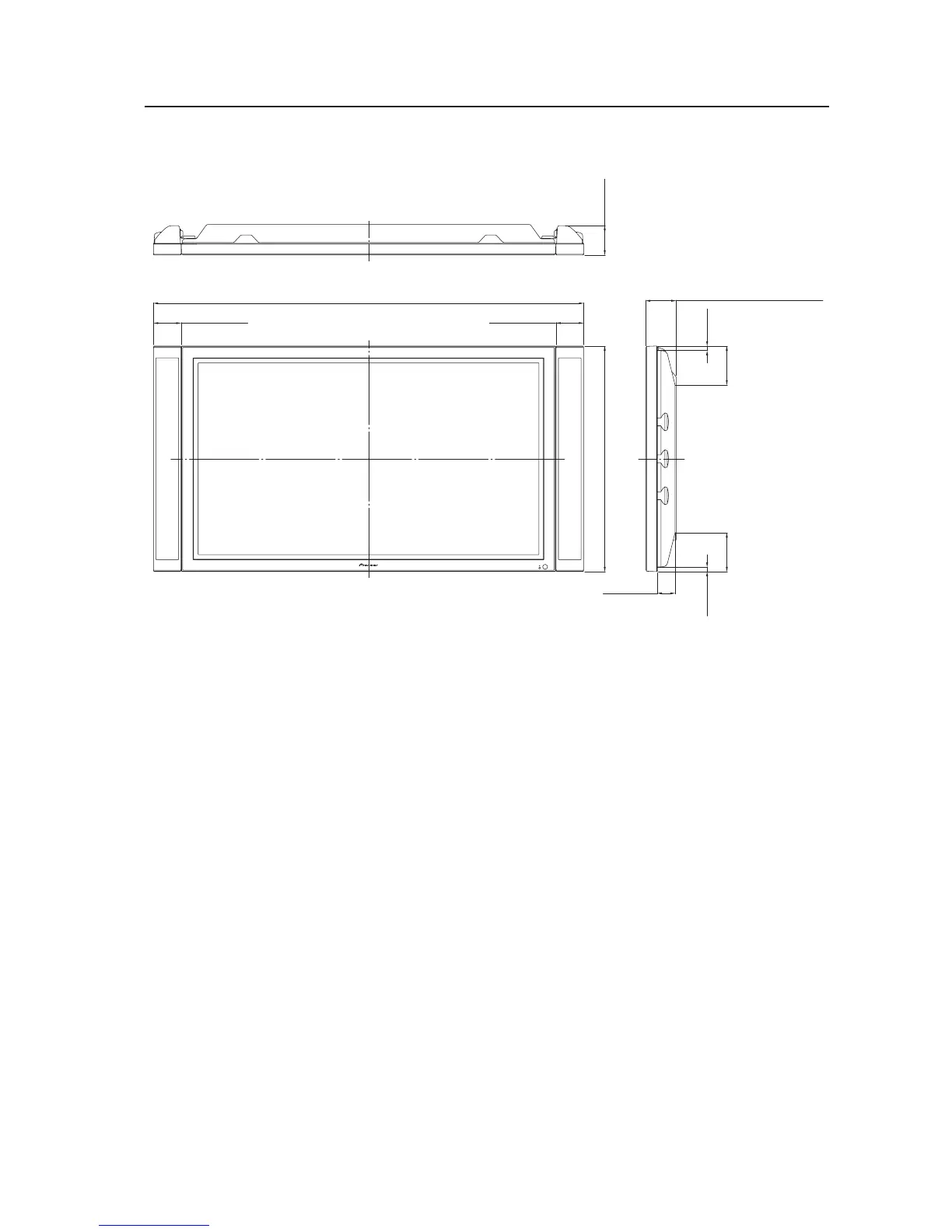

4.11.2 External Dimensions (when mounted to the Plasma Display)
Unit: mm (inch)
Speaker System: PDP-S53-LR
1403 (55-1/4)
90 (3-17/32) 90 (3-17/32)
58 (2-9/32)
15
(19/32)
15
(19/32)
127 (5) 127 (5)
736 (28-31/32)
99 (3-29/32) [Size of Plasma Display]
96
(3-25/32)
[507CMX]
