131
PDP Bracket: PDK-5005

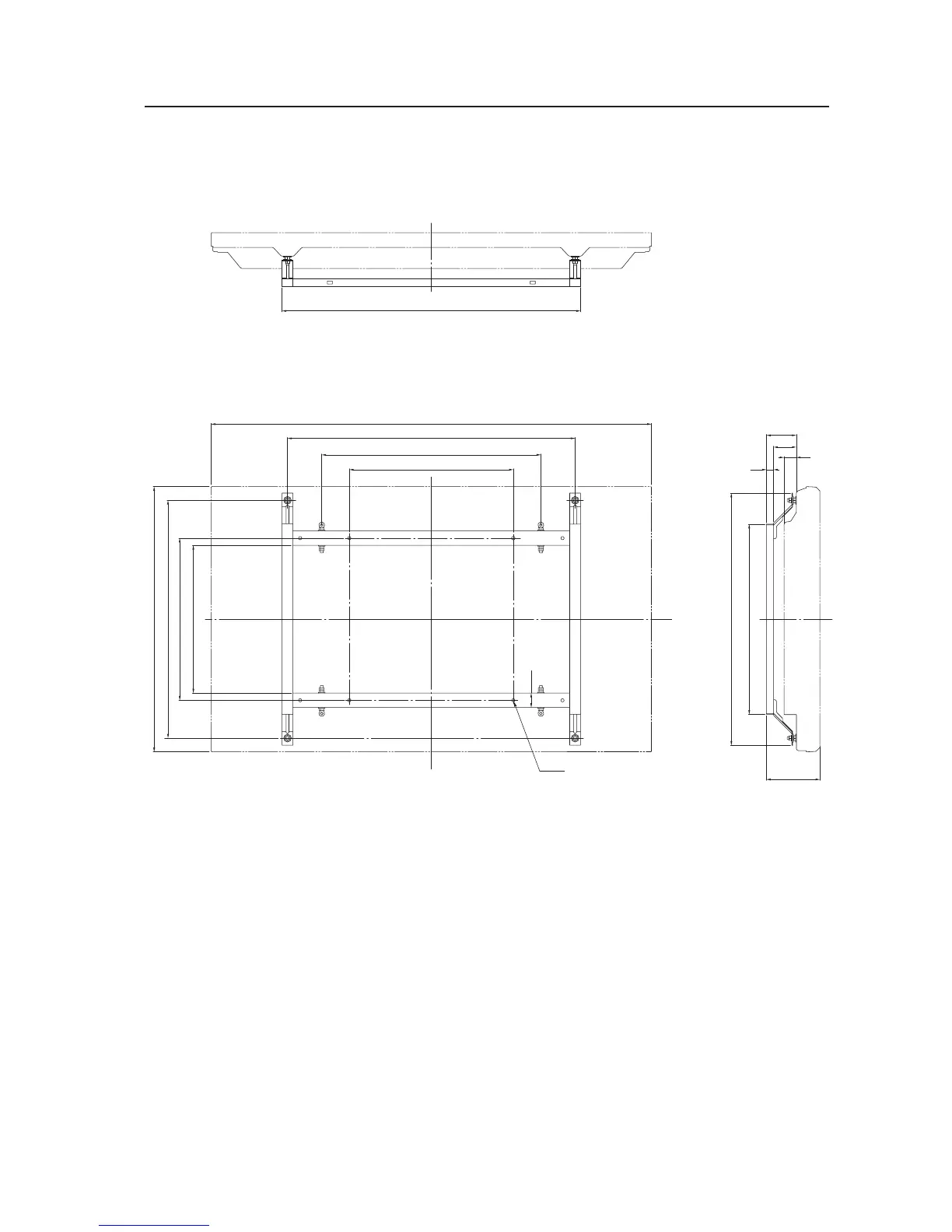

4.10.2 External Dimensions
(Units: mm)
The mounting format is symmetrical from left to right and from top to bottom.
828
1222
798
455
40
736
660
450
410
8-ø9
148
528
700
83
63
34
20
608 (Special eye bolt mounting pitch)
[507CMX]
