3.5.10 Multiple
While the display is designed to accommodate side-by-side installations, keep in mind that specific installation
configurations may affect ventilation. Observe the following requirements:
1 Installing multiple (Two vertical units)
The following table lists the operating temperature conditions when installing more than one panel. Use the units
under conditions that keep the outside atmosphere in this range.

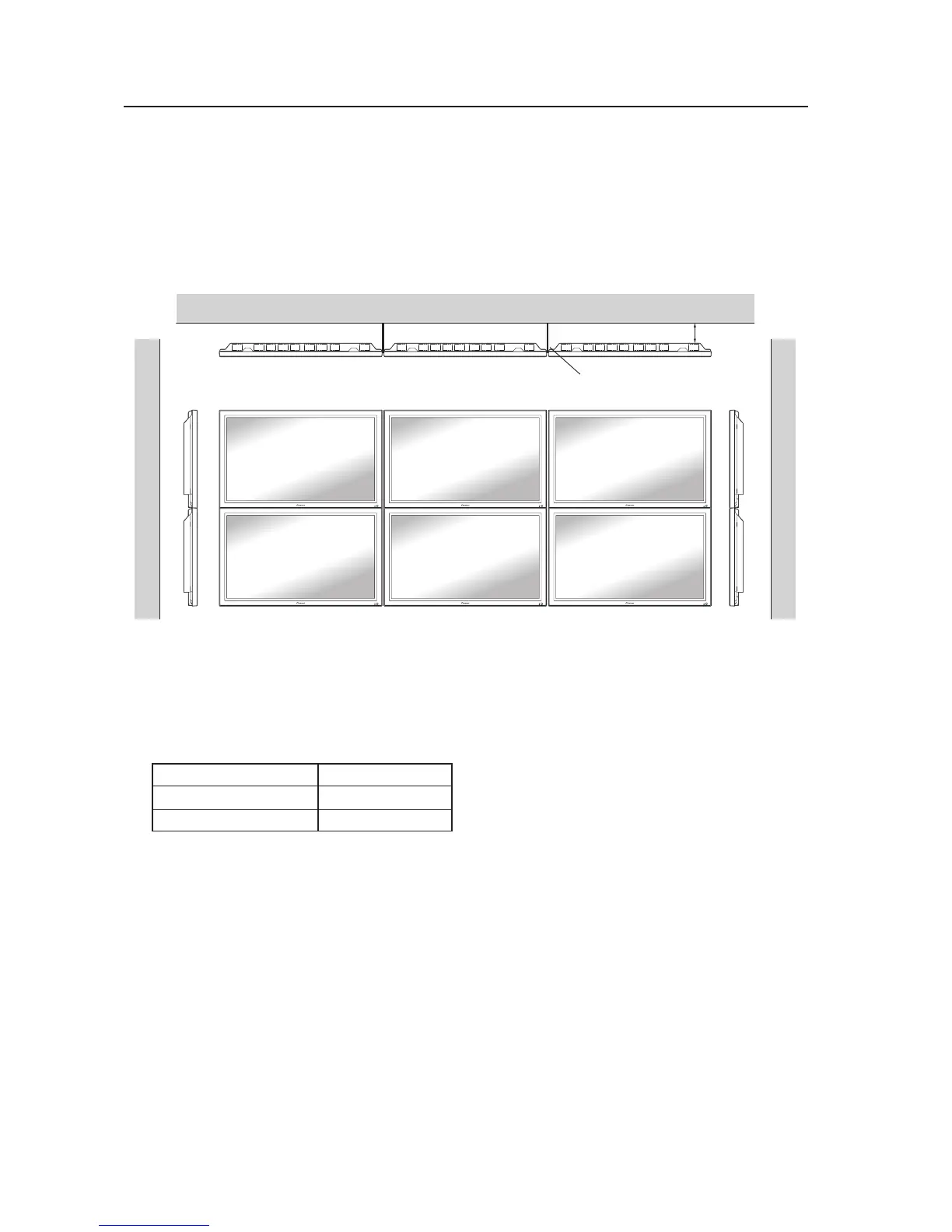

Special installation (Multiple)
A
Unit A Unit B Unit C
Partition
In case of lateral connections, ensure that left and right partitions are provided.
To prevent heat venting from one video wall plasma panel into another panel, each display must
be oriented in the same direction.
In the above example, each panel is shown with the Pioneer logo at the bottom.
✩ Operating Temperature Restrictions
Distance from wall (A) Ambient temperature
50 mm to 300 mm or less 0 °C to 35 °C
300 mm or more 0 °C to 40 °C
