264
RS-232C Adjustment
5.5.3 Combination Connection
When controlling/adjusting panels, it is convenient to connect several displays to one PC.
By performing a combination connection and assigning IDs to the panels, it is possible to control and adjust several
displays at the same time or separately.
Connection method:

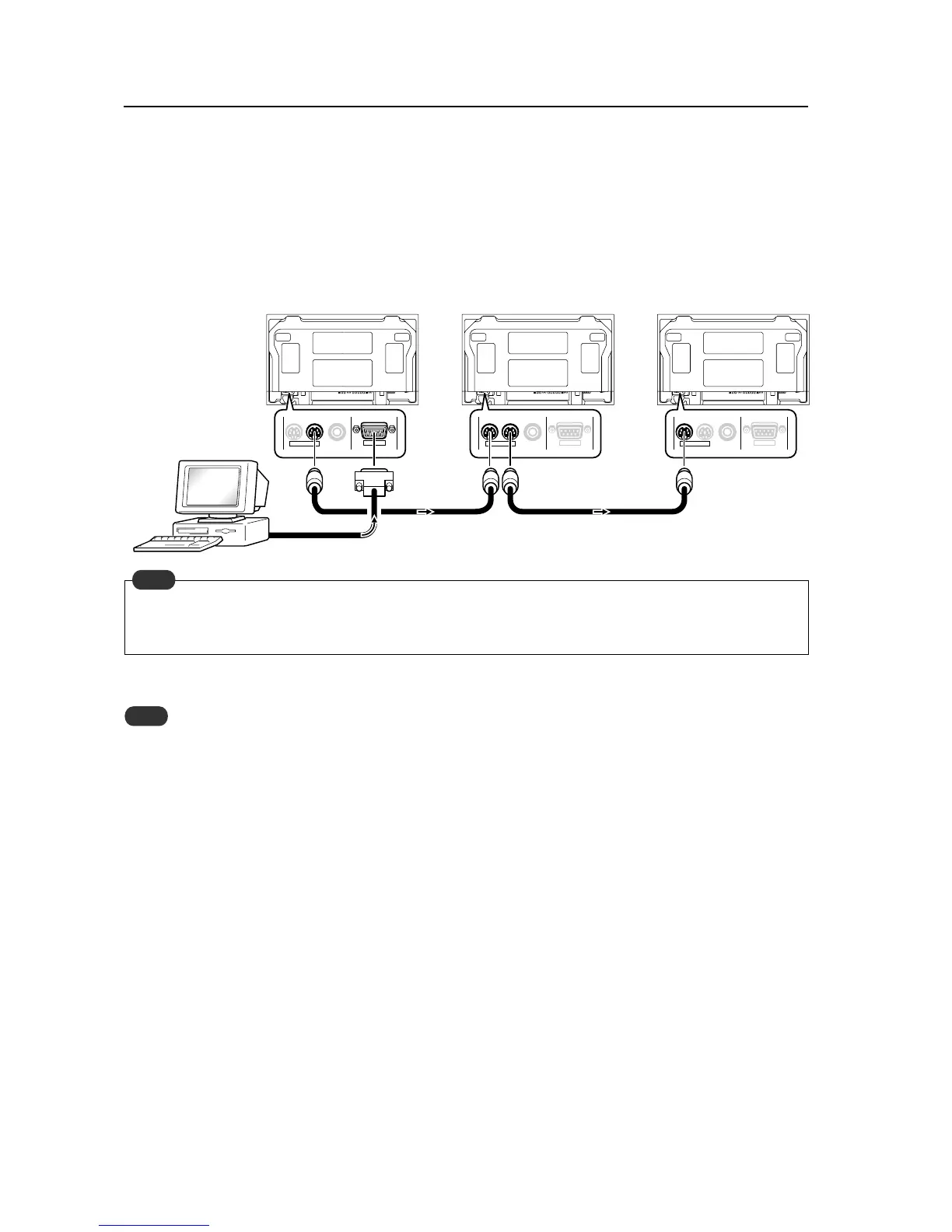

Connect the panels as shown in the figure below.
Only the combination IN terminal or the RS-232C terminal can be used at the same time. Connecting them at the
same time could cause errors. Also, do not pair combination IN terminals or combination OUT terminals. Doing so
could cause communication to fail.
It is possible to use a general-purpose mini DIN 6-pin (straight) cable for the combination cable.
Note
To output RS-232C signals from the combination OUT terminal, an ID must be assigned.
For details, refer to section, 5.5.4, “ID Assignment” (pg. 265).
Note
IN OUT
RS-232C
IN OUT IN OUT
RS-232C
COMBINATION
RS-232C
COMBINATIONCOMBINATION
First Panel
Second Panel Third Panel
Combination cable
Combination cable
PC
OUT
IN
IN
OUT
To Next Page
