Table Top Stand: PDK-TS07

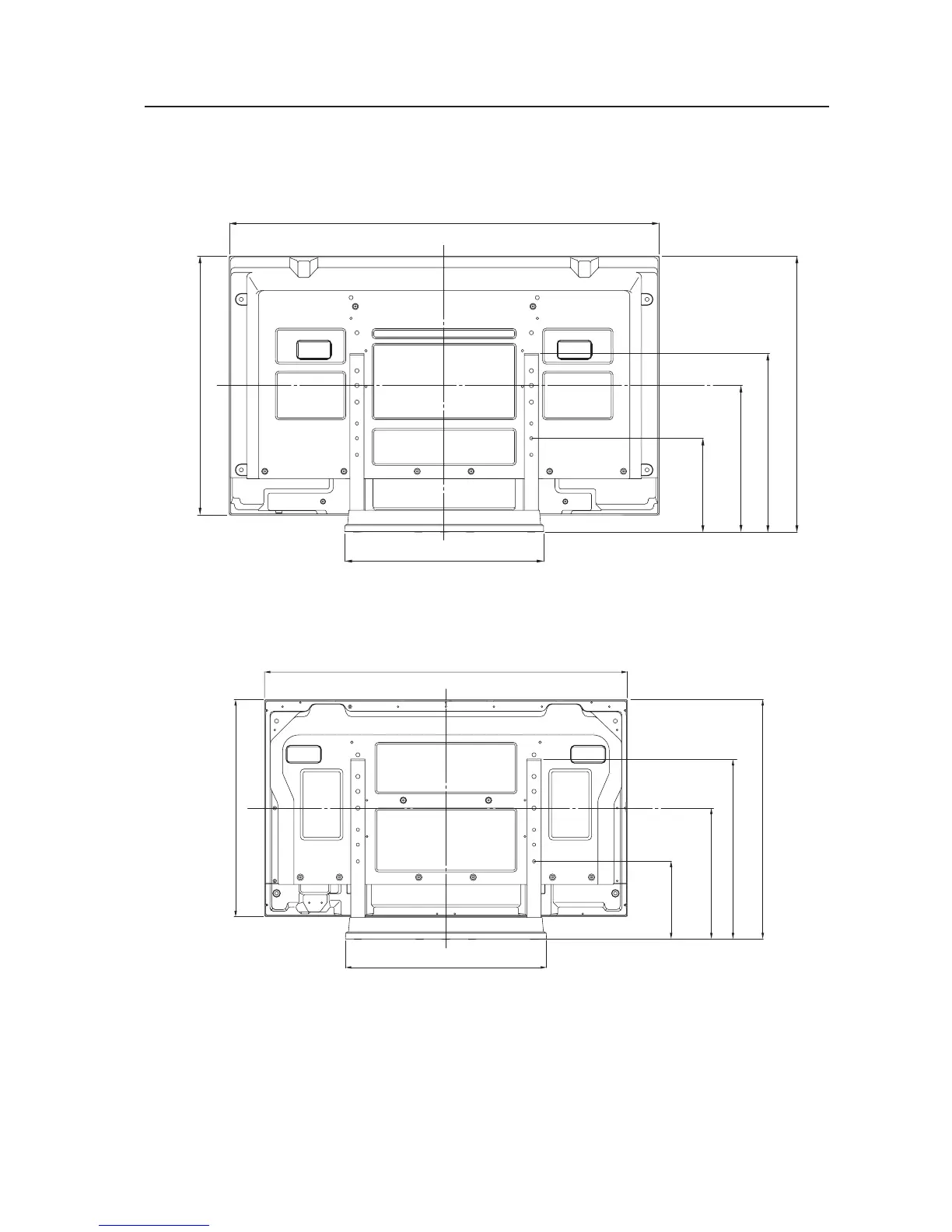

4.5.3 External Dimensions
7 When using Plasma Display PDP-507CMX
Unit: mm (inch)
1222 (48-1/8)
785 (30-29/32)
267
(10-1/2)
508 (20)
566 (22-9/32)
736 (28-31/32)
417 (16-13/32)
[Center of the display]
[507CMX : 427CMX]
7 When using Plasma Display PDP-427CMX
Unit: mm (inch)
1022 (40-1/4)
675 (26-9/16)
370 (14-9/16)
[Center of the display]
220
(8-21/32)
508 (20)
566 (22-9/32)
610 (24-1/32)
